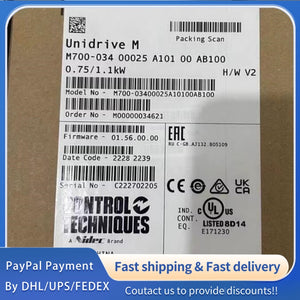

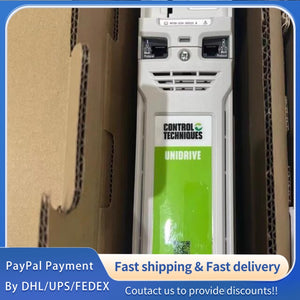

1 PCS new Nidec Unidrive M700-034 00025 #LYQ007
1 PCS new Nidec Unidrive M700-034 00025 #LYQ007
| Parameter | Value |
|---|---|
| Model | M700-034 00025 |
| Product Type | AC Variable Frequency & Servo Drive |
| Input Phase | 3-phase |
| Supply Voltage | 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Normal Duty Output Current | 3.4 A |
| Heavy Duty Output Current | 2.5 A |
| Normal Duty Peak Current | 3.7 A |
| Heavy Duty Peak Current | 5 A |
| Normal Duty Power Rating | 1.5 hp (1.1 kW) |
| Heavy Duty Power Rating | 1 hp (0.75 kW) |
| Output Voltage | 0–Input Voltage |
| Output Phase | 3-phase |
| Max Output Frequency | 550 Hz |
| Switching Frequency | 2, 3, 4, 6, 8, 12, 16 kHz (Default: 3 kHz) |
| Enclosure Rating | IP20 |
| Frame Size | 3 |
| Dimensions (H×W×D) | 14.4 in × 3.3 in × 7.9 in (366 mm × 84 mm × 201 mm)Nidec Motors |
| Weight | 9.9 lbs (4.5 kg)Nidec Motors |
| Operating Temperature | -20°C to +40°C (-4°F to +104°F) |
| Storage Temperature | -40°C to +55°C (-40°F to +131°F) |
| Humidity | Max 95% (non-condensing) at 40°C |
| Altitude | 0–3000 m (derate 1% per 100 m above 1000 m) |
| Control Modes | Frequency Control, Open Loop Vector, Rotor Flux Control, Closed Loop Induction Motor, Permanent Magnet Motor, Regenerative, Servo Control |
| Onboard Communication | Ethernet (IEEE 1588 V2), EtherNet/IP, Modbus TCP, RTMoENidec Motors |
| Analog Inputs | 3 |
| Digital Inputs | 4 |
| Safety Inputs (STO) | 1 |
| Configurable Digital I/O | 3 |
| Analog Outputs | 2 |
| Digital Outputs | 1 |
| Relay Outputs | 1 |
| Encoder Interface | 2 encoder inputs, 1 encoder simulation output |
| Option Slots | 3Nidec Motors |
| Certifications | EN 61800-3, EN 61000-6-2, UL 508C, IEC 61800-5-2 SIL 3, EN ISO 13849-1 PLe |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
