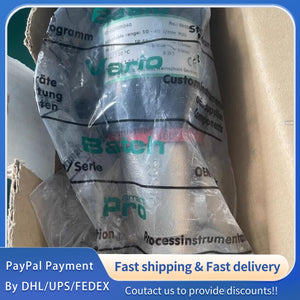

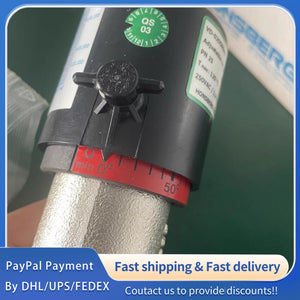

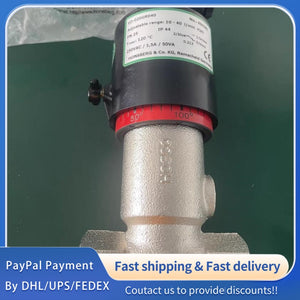

1 PCS new HONSBERG Flow Switch VD-020GR040 #LYQ007
1 PCS new HONSBERG Flow Switch VD-020GR040 #LYQ007
| Parameter | Specification |
|---|---|
| Model | VD-020GR040 |
| Type | Piston-type flow switch with reed switch |
| Nominal Width (DN) | DN 20 |
| Process Connection | Female thread G 3/4 |
| Switching Range (Water) | 10 – 40 l/min |
| Recommended Qmax | 60 l/min |
| Tolerance | ±5% of full scale value |
| Pressure Resistance | PN 25 bar |
| Medium Temperature | -20 °C to +120 °C |
| Ambient Temperature | -20 °C to +70 °C |
| Switching Voltage | Max. 175 V DC / 120 V AC |
| Switching Current | Max. 0.25 A DC / 0.18 A AC |
| Switching Capacity | Max. 5 W/VA |
| Protection Class | IP 44 (optional IP 65) |
| Electrical Connection | Plug DIN 43650-A / ISO 4400 |
| Materials (Wetted Parts) | Nickel-plated red bronze Rg5/Rg6, POM, Stainless steel 1.4310, NBR, Hard ferrite |
| Weight | 1.1 kg |
| Dimensions (H x L x SW x X) | 80 x 150 x 32 x 16 mm |
| Installation | Standard: horizontal inwards flow |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
