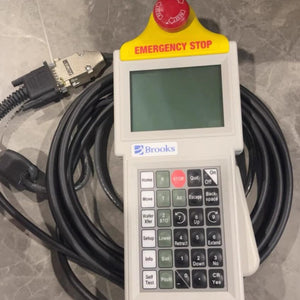

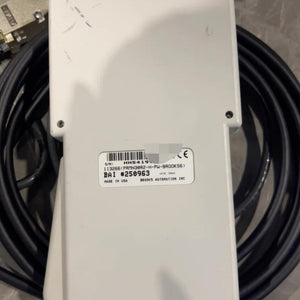

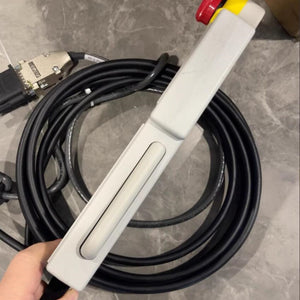

1 PCS USED Brooks PRMN30R2-H-PW-BROOKS6 Handheld Operator Interface #LYQ007
1 PCS USED Brooks PRMN30R2-H-PW-BROOKS6 Handheld Operator Interface #LYQ007
| Parameter | Specification |
|---|---|
| Model | PRMN30R2-H-PW-BROOKS6 |
| Display Type | Backlit LCD, 8×2 dot matrix |
| Effective Display Area | 28 mm (W) × 11 mm (H) |
| Input Interface | Jog dial + membrane keypad |
| Status Indication | Multi-color LED indicators (Run/Alarm/Fault/Local-Remote) |
| Communication Interface | Two 15‑pin D‑sub connectors (device connection + remote I/O) |
| Power Supply | 90–240 VAC, 47–63 Hz (via external adapter) or DC via D‑sub |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Relative Humidity | 10%–90% RH (non‑condensing) |
| Protection Rating | IP54 (front panel) |
| Dimensions (L×W×H) | Approx. 150 × 80 × 35 mm |
| Weight | Approx. 250 g |
| Mounting | Handheld / panel‑mountable |
| Compatible Devices | Brooks 4800 Series mass flow controllers/meters |
| Functions | Flow display, setpoint adjustment, valve override, zero calibration, gas selection, alarm setup, totalizer |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
