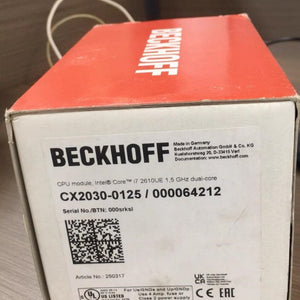

1 PCS new Beckhoff CX2030-0125 CPU module #LYQ007
1 PCS new Beckhoff CX2030-0125 CPU module #LYQ007
| Item | Specification |
|---|---|
| Part Number | CX2030-0125 |
| Product Type | Basic CPU Module (Service Phase) |
| Processor | Intel® Core™ i7 2610UE, 1.5 GHz, 2 Cores |
| Main Memory | 2 GB DDR3L RAM (expandable to 4 GB ex factory) |
| Flash Memory | 40 GB CFast™ Flash Card (20 GB for Windows Embedded Compact 7/TwinCAT/BSD) |
| Operating System | Microsoft Windows Embedded Standard 7 P (32-bit), TwinCAT 3 Runtime (XAR, no licenses included) |
| Interfaces | 2 x RJ45 (10/100/1000 Mbit/s), 1 x DVI-I, 4 x USB 2.0, 1 x Optional Interface (e.g. RS232, PROFIBUS, CANopen) |
| I/O Connection | Via Power Supply Module (E-Bus or K-Bus, auto-detection) |
| Power Supply | 24 V DC (-15 % / +20 %) |
| NOVRAM | 128 kB |
| Max. Power Consumption | 27 W |
| Cooling | Passive (active cooling available ex factory) |
| Diagnostics LED | 1 x Power, 1 x TC Status, 1 x Flash Access, 2 x Bus Status |
| Clock | Internal battery-backed clock (battery exchangeable) |
| Dimensions (W x H x D) | 144 mm x 99 mm x 91 mm |
| Weight | Approx. 1165 g |
| Operating Temperature | -25 … +60 °C |
| Storage Temperature | -40 … +85 °C |
| Relative Humidity | 95 %, no condensation |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating | IP20 |
| Approvals | CE, UL |
| TwinCAT 3 Platform Level | Mid Performance (60) |
| Ordering Information Note | Preinstalled TwinCAT 3 Runtime (XAR) without licenses; licenses to be ordered separately |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
