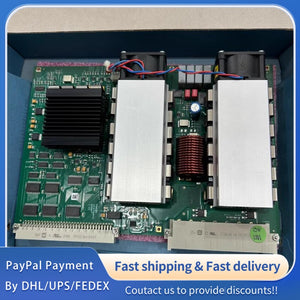

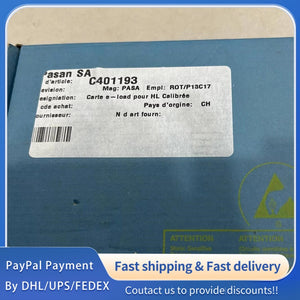

1 PCS new Pasan C401193 Electronic Load Card #LYQ007
1 PCS new Pasan C401193 Electronic Load Card #LYQ007
| Parameter Category | Item | Official Spec |
|---|---|---|
| Part Identification | Manufacturer | PASAN SA (Switzerland) |
| Part Number | C401193 | |
| Product Type | Electronic Load Card (for PV/industrial test systems) | |
| Electrical Ratings (DC) | Input Voltage Range | 0–100 VDC |
| Maximum Current | 10 A (continuous) | |
| Maximum Power | 150 W (derated above 45 °C) | |
| Measurement Precision | Voltage Accuracy | ±1% of reading ±1 digit |
| Current Accuracy | ±0.1% of reading ±5 digits | |
| Voltage Resolution | 0.01 V | |
| Current Resolution | 0.001 A | |
| Protection Features | Overpower Protection (OPP) | 1–150 W (user-adjustable) |
| Undervoltage Protection (UVP) | 1.5–30 V (user-adjustable) | |
| Over Temperature Protection (OTP) | 85 °C (automatic shutdown) | |
| Reverse Polarity Protection | Yes (input side) | |
| Thermal Management | Fan Activation | 45 °C (automatic) |
| Operating Temperature | -10 °C to +75 °C | |
| Storage Temperature | -20 °C to +85 °C | |
| Mechanical Dimensions | Power Board | 123 mm (L) × 95 mm (W) × 88 mm (H) |
| Display Unit | 79 mm (L) × 43 mm (W) × 46 mm (H) | |
| Mounting Holes (Power Board) | 113 mm (L) × 85 mm (W) | |
| Mounting Holes (Display Unit) | 76 mm (L) | |
| Interface & Wiring | Voltage Sensing Terminals | Small silkscreen: B+ / B– |
| Current Carrying Terminals | Large silkscreen: B+ / B– | |
| Compliance | Certifications | CE, UL, CSA |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
