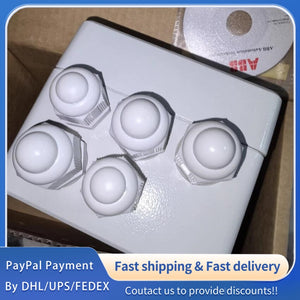

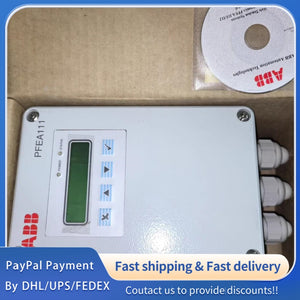

1 PCS new ABB Tension Controller PFEA111-65 #LYQ007
1 PCS new ABB Tension Controller PFEA111-65 #LYQ007
1 PCS new ABB Tension Controller PFEA111-65 #LYQ007
General Information (ABB Original Factory Standard)
Model Overview: PFEA111-65 Tension Controller, ABB Original Factory Product (Switzerland), Genuine Authentic, Factory Calibrated, No Manual Modification. It is a compact industrial tension control unit specially designed for continuous web processing scenarios, capable of connecting 2 tension load cells. The controller integrates tension detection, signal processing and output control functions, featuring compact structure, easy parameter setting, stable operation and strong anti-interference ability. It is fully compatible with ABB series tension sensors and execution components, complying with ABB original factory quality standards, IEC industrial standards and global web processing industry specifications[1][2][3].
|
Parameter
|
Specification (PFEA111-65)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
ABB (Switzerland Original Factory, Authentic Product)
|
-
|
Genuine ABB original product, 100% authentic, produced in strict accordance with ABB original factory quality control standards, factory calibrated before delivery[1][2][3].
|
|
Product Model
|
PFEA111-65 (Order Code: PFEA111-65; Factory Code: 1000-0755)
|
-
|
Original factory model, unchanged, dedicated for industrial web tension control; compact design, suitable for installation in narrow spaces[1][2].
|
|
Product Type
|
Industrial Tension Controller, Web Tension Control Unit, Automatic Tension Regulator
|
-
|
Specialized for automatic tension control of web materials, integrating detection, control and regulation functions, capable of connecting 2 tension load cells[1][2][3].
|
|
Control Mode
|
Closed-Loop Control (Standard); Optional: Open-Loop Control
|
-
|
Closed-loop control as standard, ensuring high tension control accuracy; open-loop control optional for simple application scenarios[1][2].
|
|
Tension Control Range
|
0 ~ 50 kN (Adjustable; Standard Calibration: 0 ~ 10 kN)
|
kN
|
Wide tension control range, adjustable according to on-site material and production requirements; various calibration and range parameters can be set on site[1][2][3].
|
|
Control Accuracy
|
±0.5% FS (Full Scale) at 25℃ Ambient Temperature; ±1% FS at Working Temperature Range
|
% FS
|
High control accuracy, ensuring stable tension of web materials during processing, reducing material waste and improving product quality[1][2].
|
|
Response Time
|
≤ 60 ms (Control Response); ≤ 15 ms (Signal Detection Response)
|
ms
|
Fast response speed, rapid adjustment of tension changes, ensuring stable operation of the production line and avoiding tension deviation[1][2][3].
|
|
Supply Voltage
|
AC 230 V ±10%, 50/60 Hz; Optional: DC 24 V ±10%
|
V (AC/DC)
|
Wide voltage input range, adaptable to different industrial power supply environments worldwide, stable power supply performance[1][2].
|
|
Power Consumption
|
≤ 15 VA (At Rated Supply Voltage, 25℃ Ambient Temperature)
|
VA
|
Low power consumption, energy-saving and environmental protection, suitable for long-term continuous operation of production lines[1][2].
|
|
Operating Temperature Range
|
-10 ~ +55 °C (Ambient); No Condensation Allowed
|
℃
|
Wide temperature adaptation, suitable for general industrial workshop and production line environments, no condensation allowed during operation[1][2][3].
|
|
Storage Temperature Range
|
-25 ~ +70 °C; No Condensation Allowed
|
℃
|
Suitable for long-term storage and transportation in various temperature environments, effectively protecting internal electronic components[2][3].
|
|
Relative Humidity
|
5 ~ 95% RH (Non-Condensing, 25℃ Ambient Temperature)
|
% RH
|
Strong humidity resistance, adaptable to different humidity environments in industrial workshops, ensuring stable operation[2][3].
|
|
Protection Level
|
IP20 / IP65 (Optional); Protection Functions: Dust-Proof, Anti-Interference; IP65 for Waterproof
|
-
|
Dual protection level options: IP20 for general industrial environments, IP65 for harsh environments with water and dust; effectively protecting internal components[1][2][3].
|
|
Mounting Type
|
Din Rail Mounted (Standard); Conforms to IEC 60715 Standard
|
-
|
Standard DIN rail mounting, compact structure, easy to install and disassemble, saving installation space, convenient for maintenance and replacement[1][2][3].
|
|
Signal Input
|
Tension Sensor Input: 0 ~ 10 V DC, 4 ~ 20 mA; PLC Interface Signal: 0 ~ 10 V DC; Supports 2 Load Cells
|
V DC, mA
|
Compatible with most industrial tension sensors, supports 2 load cells simultaneously; PLC interface signal 0~10V DC for easy system integration[1][2][3].
|
|
Signal Output
|
Control Output: 0 ~ 10 V DC, 4 ~ 20 mA; Relay Output: 1 Changeover Contact (NO/NC)
|
V DC, mA
|
Compatible with ABB series frequency converters and other execution components, convenient for tension regulation and system linkage[1][2].
|
|
Weight (Net)
|
Approx. 0.6 kg (Including Controller Body & Internal Components)
|
kg
|
Light weight, compact structure, easy to transport and install, reducing the load of the mounting structure[1][2].
|
|
Shipping Weight
|
Approx. 0.9 kg (Including Packaging & Protective Accessories)
|
kg
|
Protective packaging to prevent damage during transportation and handling, ensuring the product is intact on arrival[1].
|
|
Certifications
|
CE Certified, IECEx Certified, RoHS Certified, EN 55011 (EMC), IEC 61010-1
|
-
|
Complies with international industrial standards, safety specifications and environmental protection requirements, applicable to global markets[2][3].
|
|
Service Life
|
≥ 8 Years (Continuous Operation, Normal Working Conditions); ≥ 40,000 Hours MTBF
|
Years, Hours
|
Long service life, low maintenance cost, suitable for long-term continuous operation of production lines, reducing equipment replacement frequency[2][3].
|
|
Warranty Period
|
12 Months (Original Factory Warranty)
|
Months
|
Covers manufacturing defects, free repair or replacement provided by the original factory within the warranty period; does not cover damage caused by improper operation[1][2].
|
|
Application
|
Web Processing Lines, Film Production Lines, Paper Mills, Foil Processing, Textile Production, Printing & Packaging Lines
|
-
|
Widely used in various industrial web tension control scenarios, especially suitable for occasions requiring compact installation space, ensuring stable product quality[1][2][3].
|
|
Special Features
|
Compact Structure, Din Rail Mounting, Supports 2 Load Cells, IP20/IP65 Optional, High Control Accuracy, Fast Response
|
-
|
Stable performance, strong anti-interference ability, easy operation and maintenance, fully compatible with ABB industrial control systems, on-site parameter setting available[1][2][3].
|
