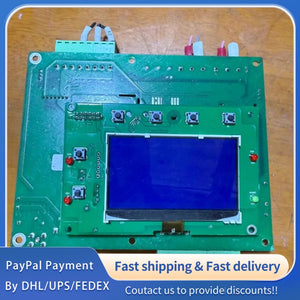

1 PCS used Topstar Temperature Controller Board H.KH54801A.001 V100 #LYQ007

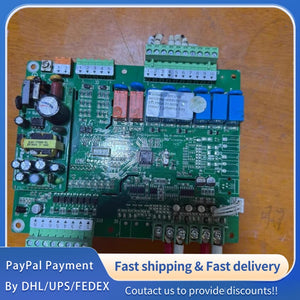

1 PCS used Topstar Temperature Controller Board H.KH54801A.001 V100 #LYQ007
1 PCS used Topstar Temperature Controller Board H.KH54801A.001 V100 #LYQ007
Original Factory Precision Parameters (Model: Topstar Temperature Controller Board H.KH54801A.001 V100)
|
Parameter Category
|
Parameter Name
|
H.KH54801A.001 V100 Specification
|
|
Basic Information
|
Product Model
|
H.KH54801A.001 V100; Topstar Genuine Original Temperature Controller Board, 100% unused and unrefurbished genuine parts
|
|
Manufacturer Standard
|
Manufactured by Topstar; Compliant with ISO 9001, CE, RoHS, GB/T 14048.1-2012 Standards; Conforms to Topstar Internal Technical and Quality Norms
|
|
|
Product Application
|
Plastic Molding, Die Casting, Rubber Processing, Electronic Component Manufacturing, Plastic Injection Molding Lines, Die Casting Production Lines, Rubber Vulcanization Equipment, Electronic Component Aging Equipment
|
|
|
Core Temperature Control Parameters
|
Temperature Control Range
|
0℃ ~ 300℃; Stepless Temperature Regulation, Adapt to Different Mold Temperature Control Demand Scenarios
|
|
Temperature Control Precision
|
±0.1℃ (0℃ ~ 100℃); ±0.2℃ (101℃ ~ 300℃); High Precision Control, Ensure Mold Temperature Stability
|
|
|
Temperature Resolution
|
0.1℃; High Resolution, Ensure Accurate Temperature Detection and Regulation
|
|
|
Temperature Detection Sensor
|
PT100 Thermistor (Default); Optional K-type Thermocouple; High Sensitivity, Fast Response, Stable Detection Performance
|
|
|
Sensor Response Time
|
≤0.5s; Fast Temperature Detection Response, Ensure Timely Regulation of Mold Temperature
|
|
|
Temperature Control Mode
|
PID Intelligent Control; Optional On-Off Control; Automatic Parameter Tuning, Adapt to Different Load Characteristics
|
|
|
Temperature Alarm Range
|
0℃ ~ 320℃ (Adjustable); Alarm Deviation: ±1℃ ~ ±10℃ (Adjustable); Timely Alarm for Abnormal Temperature
|
|
|
Heating/Cooling Control
|
Dual-channel Control; Heating Control Output: Relay Output (AC220V/5A); Cooling Control Output: Relay Output (AC220V/5A); Independent Regulation, Stable Control
|
|
|
Core Electrical Parameters
|
Input Voltage
|
Single-phase AC 220V; Voltage Tolerance: ±10%; Frequency: 50Hz/60Hz (Automatic Adaptation); Suitable for Industrial Single-phase Power Supply Scenarios
|
|
Rated Input Current
|
≤0.5A; Rated Working Current, ±1% Precision, Ensure Stable Power Supply
|
|
|
Power Consumption
|
≤10W (No Load); ≤20W (Full Load); Low Power Consumption, Energy-saving and Environment-friendly
|
|
|
Output Signal Type
|
Relay Output, Analog Output (4~20mA); Relay Contact Capacity: AC220V/5A; Analog Output Accuracy: ±0.5%
|
|
|
Input Signal Type
|
Analog Input (4~20mA/0~10V) for Temperature Detection; Digital Input: 2 Channels (Optically Isolated); High Anti-interference Performance
|
|
|
Insulation Resistance
|
≥100MΩ (500V DC); Good Insulation Performance, Safe and Reliable
|
|
|
Dielectric Strength
|
AC1500V, 50Hz, 1min; No Breakdown, No Arcing; Ensure Electrical Safety
|
|
|
Protection & Safety Parameters
|
Over-temperature Protection
|
Board Internal Temperature ≥85℃, Alarm; ≥90℃, Cut Off Output; Prevent Board Damage Caused by Overheating
|
|
Over-voltage Protection
|
Input Voltage ≥264V, Alarm and Cut Off Power Supply; Avoid Component Damage Caused by Voltage Surge
|
|
|
Under-voltage Protection
|
Input Voltage ≤176V, Alarm and Cut Off Power Supply; Avoid Abnormal Operation Caused by Low Voltage
|
|
|
Over-current Protection
|
Input Current ≥0.8A, Alarm and Cut Off Power Supply; Protect Board Circuit from Over-current Damage
|
|
|
Short-circuit Protection
|
Output Short-circuit, Instantaneous Cut Off Power Supply and Alarm; Prevent Fire and Board Burnout Caused by Short-circuit
|
|
|
ESD Protection
|
±8kV (Contact), ±15kV (Air); Effectively Protect the Controller Board from Static Damage, Ensure Stable Operation in Electronic Manufacturing Environments
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 55℃; Derating 1% per °C When Exceeding 45℃; Adapt to Various Industrial Working Environments
|
|
Storage Temperature
|
-20℃ ~ 65℃; Stable Storage Performance, No Performance Degradation After Long-term Storage in Warehouse or Transportation
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resisting Humid Industrial Environments, No Short Circuit or Malfunction Risk
|
|
|
Structure Material
|
Industrial-Grade FR-4 Circuit Board; Anti-Corrosion, Anti-Oxidation, High Mechanical Strength, Dust-Proof Design (IP20), Suitable for Cabinet Installation
|
|
|
Interface & Compatibility Parameters
|
Control Interface
|
Digital Input: 2 Channels (Optically Isolated); Analog Input: 2 Channels (0~10V/4~20mA); Digital Output: 4 Channels (Relay); Convenient for External Control and Expansion
|
|
Communication Interface
|
Standard RS485 Interface; Support Modbus RTU Communication Protocol; Baud Rate: 4800/9600/19200bps (Adjustable); Realize Remote Monitoring and Control, Easy for System Integration
|
|
|
Equipment Compatibility
|
Suitable for Topstar Mold Temperature Machines with Input Voltage 220V, Temperature Control Range 0~300℃; Compatible with PT100/K-type Temperature Sensors; Excellent Matching Performance
|
