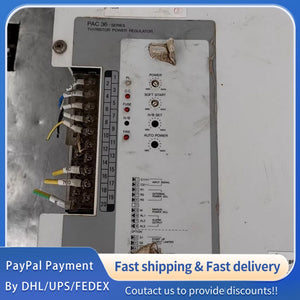

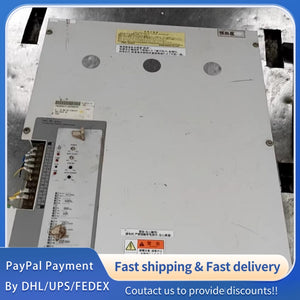

1 PCS used SHIMADEN PAC36P 417-18203N0000 Voltage Regulator #LYQ007
1 PCS used SHIMADEN PAC36P 417-18203N0000 Voltage Regulator #LYQ007
1 PCS used SHIMADEN PAC36P 417-18203N0000 Voltage Regulator #LYQ007
Original Factory Precision Parameters (Model: SHIMADEN PAC36P 417-18203N0000 Voltage Regulator)
|
Parameter Category
|
Parameter Name
|
PAC36P 417-18203N0000 Specification
|
|
Basic Information
|
Product Model
|
PAC36P 417-18203N0000; SHIMADEN Genuine Original Voltage Regulator, 100% unused and unrefurbished genuine parts
|
|
Manufacturer Standard
|
Manufactured by SHIMADEN; Compliant with ISO 9001, CE, RoHS, FCC, UL Standards; Conforms to SHIMADEN Internal Technical Norms
|
|
|
Product Application
|
Industrial Automation, Precision Instruments, Electronic Equipment Testing, Power Supply Control, High-Precision Equipment Voltage Stabilization Scenarios
|
|
|
Core Voltage Stabilization Parameters
|
Input Voltage Range
|
AC 85~264V, 50/60Hz (Universal Input); DC 100~370V Optional; Wide Voltage Input, Adapt to Different Power Supply Environments
|
|
Output Voltage
|
DC 24V ±0.5% (Fixed Output); Adjustable Range: ±10% of Rated Output Voltage; High Precision Voltage Regulation, Stable Output
|
|
|
Rated Output Current
|
15A (Continuous Output); Peak Output Current: 30A (10s); Meet the Power Demand of Medium and High Power Equipment
|
|
|
Voltage Regulation Accuracy
|
≤±0.1% (No-Load to Full-Load); ≤±0.05% (Input Voltage Fluctuation ±10%); High Precision, Ensure Stable Voltage Supply for Precision Equipment
|
|
|
Load Regulation
|
≤±0.2% (Full Load Change); Fast Response to Load Fluctuation, No Obvious Voltage Drop, Ensure Equipment Stable Operation
|
|
|
Ripple & Noise
|
≤50mVpp (Max); Built-in High-Performance Filter Circuit, Effectively Suppress Ripple and Noise, Protect Sensitive Electronic Components
|
|
|
Precision & Timing Parameters
|
Line Regulation
|
≤±0.1% (Input Voltage Change 85~264V AC); Stable Output Voltage When Input Voltage Fluctuates, Strong Adaptability
|
|
Start-Up Time
|
≤500ms (Typical); Fast Start-Up, Rapid Enter Stable Working State, Ensure Equipment Timely Power Supply
|
|
|
Response Time
|
≤100μs (Load Step Change 10~90%); Fast Response to Load and Input Voltage Changes, Ensure Voltage Stability
|
|
|
Temperature Coefficient
|
≤100ppm/°C (Operating Temperature Range); Small Voltage Drift with Temperature Change, High Temperature Stability
|
|
|
Efficiency
|
≥92% (Full Load, Rated Input Voltage); High Efficiency Design, Energy Saving and Environmental Protection, Reduce Heat Generation
|
|
|
Hold-Up Time
|
≥20ms (Full Load, 220V AC Input); Ensure Stable Output When Input Power Interrupts Briefly, Protect Equipment from Power Failure Damage
|
|
|
Protection & Safety Parameters
|
Overvoltage Protection (OVP)
|
115~130% of Rated Output Voltage; Automatic Shutdown or Current Limiting When Output Voltage Exceeds Threshold, Protect Load Equipment
|
|
Overcurrent Protection (OCP)
|
110~150% of Rated Output Current; Constant Current Limiting or Hiccup Mode, Prevent Short-Circuit or Overload from Damaging Internal Circuits
|
|
|
Overheating Protection (OTP)
|
Protection Threshold: 105~115°C; Automatic Shutdown When Internal Temperature Exceeds Threshold, Resume Work After Cooling, Extend Service Life
|
|
|
Short-Circuit Protection (SCP)
|
Hiccup Mode Short-Circuit Protection, Automatic Recovery After Short-Circuit Removal; Effectively Protect Regulator and Load Equipment
|
|
|
ESD Protection
|
±8kV (Contact), ±15kV (Air); Effectively Protect the Regulator from Static Damage, Ensure Stable Operation in Electronic Manufacturing Environments
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-40°C ~ 85°C, Wide Temperature Range, Adapting to Various Industrial Harsh Environments and Extreme Temperature Scenarios
|
|
Storage Temperature
|
|
|
|
|
|
|
|
|
|
