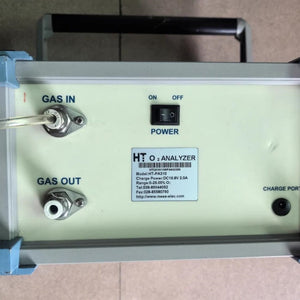

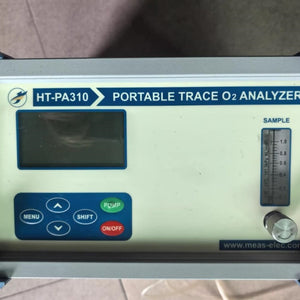

1 PCS used HT-PA310 Portable Trace Oxygen Analyzer #LYQ007
1 PCS used HT-PA310 Portable Trace Oxygen Analyzer #LYQ007
| Item | Specification |
|---|---|
| Measurement Principle | Dual Zirconia Sensor |
| Display | 128×64 Dot Matrix LCD |
| Measurement Range | 0~10/100/1000 ppm / 1.00% / 25.00% O₂ |
| Accuracy | 0~1000 ppm / 1.00% / 25.00%: ≤±1% FS
|
| Resolution | 0.1 ppm (trace), 0.01% (constant) |
| Repeatability | ≤±1.0% FS |
| Response Time | T₉₀ ≤ 30 s |
| Sampling Method | Suction or Flow-through |
| Sample Flow Rate | 400~600 mL/min |
| Sample Pressure (No Pump) | 0.05 MPa ≤ Inlet Gauge Pressure ≤ 0.35 MPa |
| Sample Pressure (With Pump) | Slight Positive/Negative or Atmospheric Pressure |
| Sample Gas Temperature | 0°C~60°C |
| Background Gas | N₂, Inert Gases, etc. |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | <100% RH, Non-condensing |
| Storage Humidity | <90% RH, Non-condensing |
| Dimensions (H×W×D) | 155 mm × 260 mm × 340 mm |
| Weight | Approx. 4.5 kg |
| Sensor Life | >4 years (Normal Use) |
| Gas Interface | NPT 1/8" Female Thread |
| Battery | 14.8 V, 11 Ah Rechargeable Li-ion |
| Charging Power | AC 100~240 V, 50/60 Hz |
| Continuous Operation | >24 hours (Full Charge) |
| Data Storage | 40,000 Records |
| Communication | RS232 (Default), RS485 (Optional) |
| Protection Class | IP54 |
