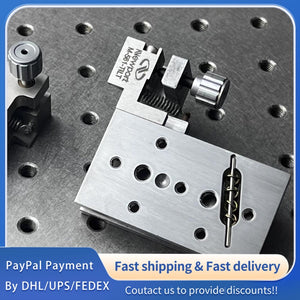

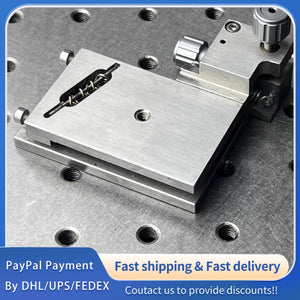

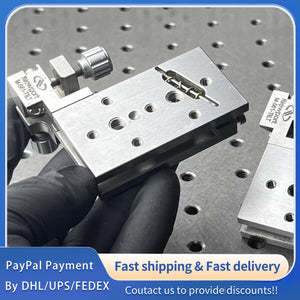

1 PCS USED Newport Tilt Stage M-561-TILT#LYQ007
1 PCS USED Newport Tilt Stage M-561-TILT#LYQ007
1 PCS USED Newport Tilt Stage M-561-TILT#LYQ007
Original Factory Precision Parameters (Model: Newport Tilt Stage M-561-TILT)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
M-561-TILT; Newport Genuine Original High-Precision Manual Tilt Stage, 100% unused and unrefurbished genuine parts, consistent with Newport's official model coding standards. It is a two-axis tilt stage, available in right-hand configuration, designed for dedicated matching with Newport 561 and 562 series ULTRAlign™ linear translation stages, with fixed configuration and excellent compatibility, focusing on high tilt precision, stable positioning and strong structural rigidity[2].
|
|
Manufacturer Standard
|
Manufactured by Newport (Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS Industrial Standards; Conforms to Newport Internal Technical Standard and Precision Tilt Stage Manufacturing Norms, meeting the precision calibration requirements of international industrial precision positioning product standards, ensuring high consistency and reliability of each parameter.
|
|
|
Product Series
|
Newport ULTRAlign™ Series Precision Fiber Alignment Accessories; Manual Tilt Stage Category; Adopts stainless steel structure and precise 100 TPI adjustment screws, designed for two-axis (θY, θZ) angle alignment in fiber alignment, optical positioning and precision motion control scenarios, compatible with Newport 561 and 562 series ULTRAlign™ linear translation stages for combined use[2].
|
|
|
Core Tilt & Precision Parameters
|
Displacement Axes
|
Two-axis tilt adjustment: θY (Pitch) and θZ (Yaw); The two axes work independently, realizing precise tilt adjustment in different directions, suitable for fiber alignment and optical component positioning scenarios that require multi-angle alignment[2].
|
|
Angle Range
|
±5° (θY and θZ axes); The angle range is symmetrically distributed, ensuring sufficient adjustment space for various precision alignment scenarios, compatible with the working range of Newport 561 and 562 series linear translation stages.
|
|
|
Tilt Sensitivity
|
5 arc sec; High adjustment sensitivity, ensuring precise control of tilt angle, meeting the high-precision alignment requirements of single-mode fiber and optical components, realizing micron-level positioning accuracy indirectly through angle control[2].
|
|
|
Adjustment Mechanism
|
Precision 100 TPI (Threads Per Inch) adjustment screws; Manual adjustment mode, with smooth operation and stable positioning, no obvious backlashes, ensuring that the tilt angle remains stable after adjustment, avoiding position deviation caused by mechanism looseness.
|
|
|
Load Capacity
|
22 N (equivalent to 5 lbs); High load-bearing capacity, able to stably carry fiber holders, optical components and other matching accessories, ensuring stable operation without structural deformation under rated load conditions[2].
|
|
|
Optical Axis Height
|
79.4 mm; The height is measured when the stage is installed on ULTRAlign™ linear translation stages, ensuring consistent optical axis height with matching Newport components, facilitating system integration and alignment accuracy improvement.
|
|
|
Structural & Installation Parameters
|
Structure Material
|
High-quality stainless steel; Corrosion-resistant, anti-oxidation, high structural rigidity and good stability, able to realize stable and precise positioning of single-mode fiber, adapting to long-term use in laboratory and industrial environments.
|
|
Configuration Option
|
Right-hand configuration (standard); Left-hand configuration is also available as an optional model; The symmetrical mirror design allows all micrometers to be placed on the same side, facilitating operation and improving adjustment comfort and stability.
|
|
|
Compatibility
|
100% compatible with Newport 561 and 562 series ULTRAlign™ linear translation stages; Can be directly installed on the linear stages, and the fiber and equipment holders can be installed using the same guide rail mechanism as the supporting linear translation stages, realizing integrated positioning control.
|
|
|
Installation Method
|
Bolt mounting; Compatible with standard mounting holes of Newport 561 and 562 series linear translation stages, easy to install and disassemble, ensuring firm connection without position deviation during adjustment and operation, facilitating system assembly and maintenance.
|
|
|
Environmental & Durability Parameters
|
Operating Environment
|
Operating Temperature: 0℃ ~ +40℃ (Ambient Temperature); Storage Temperature: -20℃ ~ +60℃; Operating Humidity: 10% ~ 85% RH (Non-Condensing); Storage Humidity: < 75% RH (Non-Condensing); Adaptable to common laboratory and industrial environmental temperature and humidity ranges, ensuring stable operation.
|
|
Vibration Resistance
|
1 g (10 Hz ~ 500 Hz); Strong vibration resistance, able to maintain stable positioning and tilt angle under slight vibration environment, avoiding alignment deviation caused by external vibration, ensuring the stability of precision operation.
|
|
|
Shock Resistance
|
10 g (11 ms); Good shock resistance, able to resist occasional impact during installation and use, avoiding structural damage and parameter deviation, ensuring the service life of the product.
|
|
|
Service Life
|
≥25,000 Hours (Continuous Operation); Low failure rate, the stainless steel structure and precision adjustment mechanism ensure long-term stable operation, adapting to long-time work requirements of laboratory experiments and industrial production lines.
|
|
|
Additional Performance Parameters
|
Guide Rail Mechanism
|
Adopts the same guide rail mechanism as the supporting ULTRAlign™ linear translation stages; Ensures smooth movement of the tilt stage, high positioning accuracy, and good compatibility with fiber holders and optical component holders, facilitating integrated alignment control.
|
|
Application Scenarios
|
Widely used in fiber optic alignment, optical component positioning, laboratory precision experiments, industrial precision manufacturing, fiber-to-waveguide alignment, fiber-to-GRIN lens alignment and other scenarios; Suitable for systems that require high-precision two-axis tilt positioning and stable operation.
|
