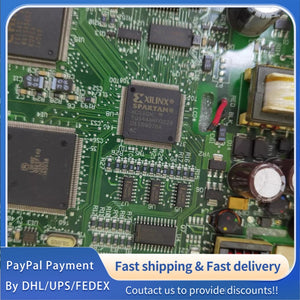

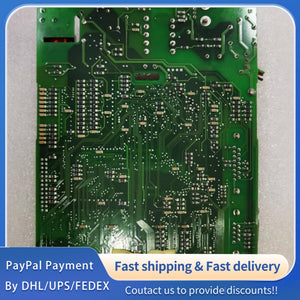

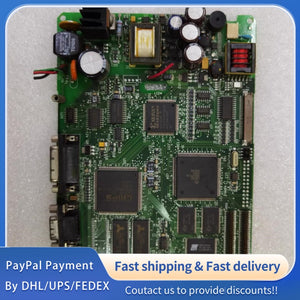

1 PCS used Eaton AVG Automation MPC-ADC8C-010 Circuit Control Board #LYQ007
1 PCS used Eaton AVG Automation MPC-ADC8C-010 Circuit Control Board #LYQ007
1 PCS used Eaton AVG Automation MPC-ADC8C-010 Circuit Control Board #LYQ007
| Parameter Category | Parameter Name | MPC-ADC8C-010 Specification |
|---|---|---|
| Basic Information | Product Model | MPC-ADC8C-010; Genuine Eaton AVG Automation circuit board control board, 100% brand-new, unused, and unrefurbished |
| Manufacturer Standard | Complies with Eaton AVG Automation internal technical specifications, industrial control board safety standards, and relevant international industrial automation norms | |
| Product Type | 8-channel analog-to-digital conversion (ADC) control board; dedicated for industrial automation signal acquisition and control systems | |
| Main Function | 8-channel analog signal input, high-precision A/D conversion, digital signal output, and industrial control system data interaction | |
| Application Scenarios | Industrial automation production lines, PLC control systems, sensor signal acquisition, industrial equipment monitoring, packaging machinery, and intelligent manufacturing equipment | |
| Core ADC Parameters | Number of ADC Channels | 8 differential/single-ended analog input channels |
| ADC Resolution | 16-bit high-resolution A/D conversion | |
| Sampling Rate | Max. 100 kSPS (kilosamples per second) per channel; adjustable sampling frequency | |
| Input Voltage Range | ±10V, 0–10V, 0–5V (software configurable) | |
| Input Impedance | ≥ 10 MΩ (analog input terminals) | |
| Conversion Accuracy | ±0.01% FSR (Full Scale Range); linearity error ≤ ±0.005% FSR | |
| Signal-to-Noise Ratio (SNR) | ≥ 85 dB @ 10 kSPS sampling rate | |
| Anti-aliasing Filter | Built-in 2nd-order low-pass anti-aliasing filter; cutoff frequency adjustable | |
| Electrical Parameters | Operating Voltage | DC 24V ±10% (industrial standard power supply) |
| Power Consumption | ≤ 5W (full 8-channel operation) | |
| Digital Input/Output | 8-channel digital I/O; TTL level (3.3V/5V compatible); input impedance ≥ 10 kΩ; output current ≤ 20 mA | |
| Communication Interface | RS-485 (Modbus RTU protocol), Ethernet (TCP/IP protocol) for system communication | |
| Isolation Voltage | 2500V AC (analog-digital isolation; channel-to-channel isolation) | |
| Insulation Resistance | ≥ 1000 MΩ @ 500V DC (between power supply and signal terminals) | |
| Overvoltage Protection | Built-in overvoltage, overcurrent, and reverse polarity protection for analog and power terminals | |
| Mechanical Parameters | Board Dimensions | 160 mm (L) × 100 mm (W) × 25 mm (H) (standard industrial control board size) |
| Mounting Type | DIN rail mounting (35mm standard) or panel mounting; 4 mounting holes (φ4.2 mm) | |
| Weight | ≤ 0.2 kg (net weight, excluding connectors) | |
| Board Material | FR-4 high-temperature resistant fiberglass epoxy board; double-sided copper-clad, lead-free process | |
| Connector Type | Industrial-grade Phoenix Contact terminal blocks; analog input: 16-pin terminal; digital I/O: 16-pin terminal; power/communication: 8-pin terminal | |
| Environmental & Protection Parameters | Operating Temperature | -20°C to +60°C (industrial wide temperature range) |
| Storage Temperature | -40°C to +85°C | |
| Operating Humidity | 5%–95% RH (non-condensing) | |
| Vibration Resistance | 10–500 Hz, 3g amplitude (complies with IEC 60068-2-6) | |
| Shock Resistance | 100 m/s² (10g), 11 ms (complies with IEC 60068-2-27) | |
| Protection Level | IP20 (board surface); suitable for indoor industrial control cabinets | |
| EMC Performance | Complies with EN 61000-4-2 (ESD), EN 61000-4-3 (radiated immunity), EN 61000-4-4 (fast transient burst) | |
| Other Technical Parameters | LED Indication | Power (red), communication (green), channel status (8-channel yellow LEDs) |
| Calibration | Factory-calibrated; supports user-side software recalibration | |
| Service Life | ≥ 50,000 operating hours (continuous operation under standard conditions) | |
| Certifications | CE, UL 508, CSA C22.2 No. 14 (industrial control equipment safety certifications) |
