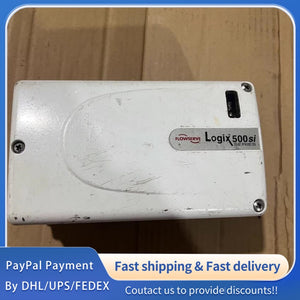

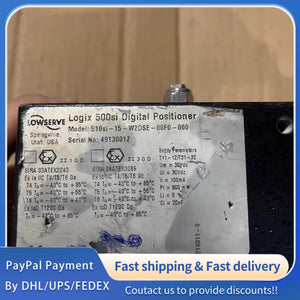

1 PCS used FLOWSERVE Logix 510Si-15-W2DSE-00F0-000 #LYQ007
1 PCS used FLOWSERVE Logix 510Si-15-W2DSE-00F0-000 #LYQ007
| Parameter | Value |
|---|---|
| Model | Logix 510Si-15-W2DSE-00F0-000 |
| Type | Digital Valve Positioner (Single‑acting) |
| Input Signal | 4–20 mA DC, Two‑wire |
| Compliance Voltage | 6.0 VDC |
| Max Supply Voltage | 30 VDC |
| Min Operating Current | 3.6 mA |
| Supply Air Pressure | 1.5–6.0 bar (22–87 psi) |
| Air Quality | Clean, dry, oil‑free (per IEC 770 / ISA‑7.0.01) |
| Air Consumption (steady) | 0.08 Nm³/h @ 1.5 bar; 0.12 Nm³/h @ 6.0 bar |
| Output Pressure | 0–100% of supply pressure |
| Output Flow Capacity | 2.4 Nm³/h @ 1.5 bar; 7.0 Nm³/h @ 6.0 bar |
| Feedback Shaft Rotation | Min 15°, Max 90°; 40° recommended (linear) |
| Linearity | < ±1.0% |
| Resolution | < 0.3% |
| Repeatability | < 0.5% |
| Deadband | < 0.5% |
| Operating Temp | Standard: -20°C to +80°C; Low: -40°C to +80°C |
| Storage/Transport Temp | -40°C to +80°C |
| Humidity | 0–100% non‑condensing |
| Weight (base unit) | 1.2 kg (2.65 lbs) |
| Hazardous Area | ATEX: II 1G Ex ia IIC T6; II 3G Ex nL nA IIC T4 |
| FM Approval | Intrinsically Safe / Non‑Incendive, Class I, Div 2, Groups A‑D, T4 |
