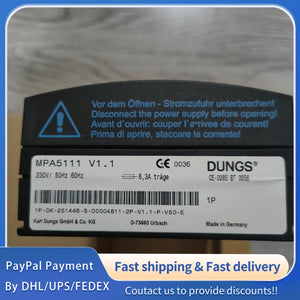

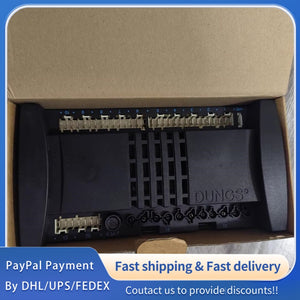

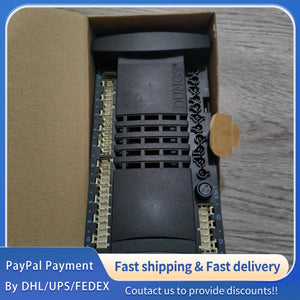

1 PCS new DUNGS Control Unit MPA5111 V1.1#LYQ007
1 PCS new DUNGS Control Unit MPA5111 V1.1#LYQ007
1 PCS new DUNGS Control Unit MPA5111 V1.1#LYQ007
General Information (DUNGS Original Factory Standard)
Model Overview: MPA5111 V1.1 Control Unit, DUNGS (Dungs) Germany Original Factory, Genuine Original Product, Factory Calibrated, Version V1.1, No Manual Modification. It is a high-precision intelligent control unit specially designed for industrial burner systems, integrating combustion control, safety monitoring and signal transmission functions. The control unit is compatible with DUNGS series valve groups and flame detectors, featuring stable performance, high control precision, strong anti-interference ability and complete safety protection functions, fully complying with DUNGS original factory quality standards and industrial combustion control technical specifications[1][2][3].
|
Parameter
|
Specification (MPA5111 V1.1)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
DUNGS (Dungs, Germany Original Factory)
|
-
|
Genuine DUNGS original product, 100% authentic, produced in strict accordance with German original factory standards, compliant with global industrial combustion control unit quality and safety standards[1][2][3].
|
|
Product Model
|
MPA5111 V1.1 (Order Code: MPA5111 V1.1; Version: V1.1)
|
-
|
Original factory model and version, unchanged, factory calibrated before delivery; V1.1 version optimizes anti-interference performance and signal transmission stability based on previous versions[1][2].
|
|
Product Type
|
Industrial Burner Control Unit, Intelligent Control Module, Combustion Safety Controller
|
-
|
Specialized for industrial burner systems, integrating combustion sequence control, flame monitoring, fault alarm and valve group control functions, compatible with most DUNGS burner accessories[1][2][3].
|
|
Supply Voltage
|
AC 230 V ±10%, 50/60 Hz; Optional: DC 24 V ±10%
|
V (AC/DC)
|
Wide voltage input range, adaptable to different industrial power supply environments; AC 230V is standard configuration, DC 24V is optional for special scenarios[1][2].
|
|
Power Consumption
|
≤ 15 VA (At Rated Supply Voltage, 25℃ Ambient Temperature)
|
VA
|
Low power consumption, energy-saving and environmental protection, reducing the load of the industrial power supply system, suitable for long-term continuous operation[1][2].
|
|
Control Output
|
Relay Output: 3 NO + 2 NC; Contact Rating: AC 250 V, 5 A (Resistive Load)
|
V, A
|
Multiple relay outputs, supporting valve group control, fan control and fault alarm transmission; high contact rating, stable and reliable, adaptable to different load requirements[1][2][3].
|
|
Input Signal
|
Flame Detector Input: UV Photocell / Ionization Probe; Analog Input: 4 ~ 20 mA (Optional)
|
-
|
Compatible with UV photocell and ionization probe flame detectors, realizing real-time flame monitoring; optional 4~20mA analog input for connecting external sensors (e.g., temperature, pressure sensors)[1][2].
|
|
Response Time
|
≤ 100 ms (Signal Input to Output; Excluding Flame Detection Delay)
|
ms
|
Fast response speed, ensuring timely control and fault handling, improving the safety and stability of the burner system[1][2].
|
|
Flame Detection Delay
|
2 ~ 10 s (Adjustable; Factory Default: 5 s)
|
s
|
Adjustable flame detection delay, avoiding false alarms caused by instantaneous flame instability, ensuring accurate flame monitoring[1][2][3].
|
|
Fault Alarm Function
|
Visual Alarm (LED Indicator) + Audible Alarm (Optional) + Relay Alarm Output
|
-
|
Complete fault alarm mechanism; LED indicator shows specific fault types (e.g., flame loss, power failure), optional audible alarm for on-site reminder, relay output for remote alarm transmission[1][2].
|
|
Operating Temperature Range
|
-10 ~ +60 °C (Ambient); No Condensation Allowed
|
℃
|
Wide temperature adaptation, suitable for common industrial combustion environments, no condensation allowed during operation to avoid internal circuit damage[1][2].
|
|
Storage Temperature Range
|
-20 ~ +85 °C; No Condensation Allowed
|
℃
|
Suitable for long-term storage and transportation in normal temperature environments, effectively protecting internal electronic components and circuit boards[2][3].
|
|
Relative Humidity
|
5 ~ 95% RH (Non-Condensing, 25℃ Ambient Temperature)
|
% RH
|
Strong humidity resistance, adaptable to different humidity environments in industrial workshops and combustion plants, ensuring stable operation of the control unit[2][3].
|
|
Protection Level
|
IP40 (Plastic Enclosure); Protection Functions: Dust-Proof, Anti-Interference
|
-
|
IP40 protection level, effectively dust-proof, suitable for installation in control cabinets or on-site industrial environments, strong anti-electromagnetic interference ability[1][2].
|
|
Mounting Type
|
Standard 35 mm DIN Rail Mounting; Panel Mounting (Optional)
|
-
|
Standard DIN rail mounting, easy to install and disassemble, convenient for maintenance and replacement; panel mounting is optional for special installation requirements[2][3].
|
|
Dimensions (W×H×D)
|
Approx. 75 × 115 × 55 mm (Tolerance: ±0.5 mm; Including Housing & Connector)
|
mm
|
Compact design, small volume, saving installation space in the control cabinet, suitable for control cabinets with limited space[1][2].
|
|
Weight (Net)
|
Approx. 0.28 kg (Including Housing, Circuit Board & Connector)
|
kg
|
Lightweight, easy to transport and install, reducing the load of the mounting structure and control cabinet[1][2].
|
|
Certifications
|
CE Certified, ATEX Certified, IECEx Certified, RoHS Certified, EN55022 (EMC), EN61000 (Anti-Interference)
|
-
|
Complies with international industrial standards, explosion-proof standards and environmental protection requirements, applicable to global industrial burner markets[2][3].
|
|
Service Life
|
≥ 8 Years (Continuous Operation, Normal Working Conditions); ≥ 60,000 Hours MTBF
|
Years, Hours
|
Long service life, low maintenance cost, suitable for long-term continuous operation in industrial combustion scenarios, reducing equipment replacement frequency[2][3].
|
|
Warranty Period
|
12 Months (Original Factory Warranty)
|
Months
|
Covers manufacturing defects, free repair or replacement provided by the original factory within the warranty period; does not cover damage caused by improper operation or external factors[1][2].
|
|
Application
|
Industrial Burners, Gas Fired Boilers, Industrial Furnaces, Thermal Power Plants, Combustion Systems, Gas Heating Equipment
|
-
|
Widely used in various industrial gas combustion scenarios, especially suitable for burner systems requiring precise control and safety monitoring, compatible with DUNGS series valve groups and flame detectors[1][2][3].
|
|
Special Features
|
Intelligent Control, High Precision, Strong Anti-Interference, Adjustable Flame Detection Delay, Complete Fault Alarm, DIN Rail Mounting, Compact Design
|
-
|
Integrated control and safety functions, stable performance, easy to install and maintain, effectively ensuring the safe, efficient and stable operation of industrial combustion systems[1][2][3].
|
