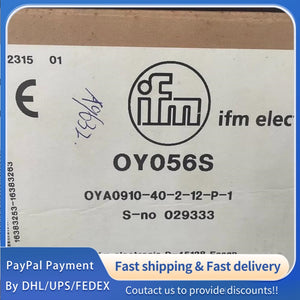

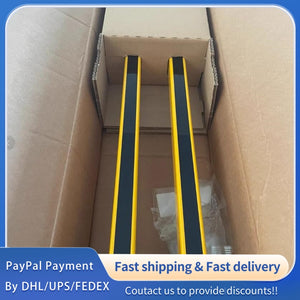

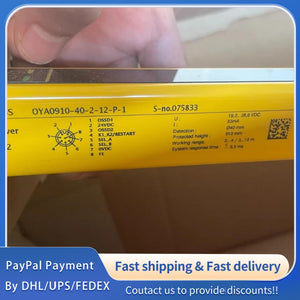

1 PCS new ifm OY056S Safety Light Curtain OYA0910-40-2-12-P-1 #LYQ007
1 PCS new ifm OY056S Safety Light Curtain OYA0910-40-2-12-P-1 #LYQ007
| Parameter | Value |
|---|---|
| Product Code | OY056S (029333) |
| Model | OYA0910-40-2-12-P-1 |
| Type | Safety light curtain |
| Safety Standard | Type 2 according to IEC 61496-1; SILcl 1 IEC 62061; ISO 13849-1 Category 2, PL c |
| Light Type | Infrared light |
| Wavelength | 950 nmifm |
| Protective Function | Hand protection / access preventionifm |
| Protected Area Height | 910 mmifm |
| Resolution | 40 mmifm |
| Protected Area Width (Range) | 0...4 m (low light intensity); 3...12 m (high light intensity)ifm |
| Electrical Design | PNPifm |
| Operating Voltage | 24 V DC (19.2...28.8 V DC) |
| Operating Voltage Tolerance | ±20 %ifm |
| Protection Class | IIIifm |
| Reverse Polarity Protection | Yesifm |
| Current Consumption (Transmitter) | 42 mAifm |
| Current Consumption (Receiver) | 83 mAifm |
| OSSD Outputs | 2 x PNPifm |
| Max. Current Load per OSSD | 400 mA (at 24 V DC)ifm |
| Short-circuit Protection | Yesifm |
| Max. Capacitive Load | 0.82 µF |
| Power-on Delay Time | < 2 sifm |
| Response Time | ≤ 10 msifm |
| Mission Time (Tₘ) | 175,200 h |
| Housing Protection | IP 65; IP 67ifm |
| Ambient Temperature | -10...+55 °C |
| Storage Temperature | -20...+70 °Cifm |
| Relative Humidity | ≤ 95 % (non-condensing) |
| Vibration Resistance | 10...55 Hz, 1 mm amplitude (EN 60068-2-6) |
| Shock Resistance | 30 g, 11 ms (EN 60068-2-27) |
| EMC | Class C to EN 60654-1 (weatherproof) |
| Connection (Transmitter/Receiver) | 1 x M12 connector (A-coded)ifm |
| Max. Cable Length | 100 m (for 0.34 mm² wire cross-section) |
| Housing Material | Aluminum (profile), plastic (end caps) |
| Display | LED indicators (status) |
