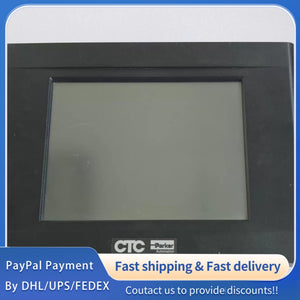

1 PCS used Parker EPX08T-XAAA-1 Touchscreen HMI #LYQ007
1 PCS used Parker EPX08T-XAAA-1 Touchscreen HMI #LYQ007
| Parameter | Specification |
|---|---|
| Model | EPX08T-XAAA-1 |
| Display Size | 8" (203 mm) Diagonal |
| Display Type | Color TFT LCD |
| Resolution | 640 × 480 (VGA) |
| Brightness | 400 NIT |
| Color Depth | 262,144 Colors |
| Viewing Angle | ±70° (L/R), 60° (Up), 65° (Down) |
| Backlight Life | 50,000 Hours (to half brightness) |
| Touchscreen | Analog Resistive |
| Processor | 650 MHz Ultra Low Voltage Intel Celeron (256KB Cache) |
| Chipset | Intel 82815 GMCH (100MHz FSB, AGP Video) |
| System Memory | 512MB Shared PC100 SODIMM (Max. 512MB) |
| Video Memory | 64MB Shared System Memory |
| Storage | 3.5" 40GB 7200 RPM UltraATA/100 HDD (80GB Optional) |
| External Storage | 1 × Type II CompactFlash Slot (IDE Bootable) |
| Operating System | Windows XP Professional |
| HMI Software | InteractX Unlimited Tag Runtime (Licensed) |
| Serial Ports | 1 × RS-232 (9‑pin D‑sub)
|
| Ethernet | 1 × 10/100Base‑T (RJ45) |
| USB | 2 × USB 1.1 (Type‑A, Bootable) |
| PS/2 | 1 × Keyboard, 1 × Mouse (Over‑current Protected) |
| Power Input | 24 VDC, 2A Max |
| Operating Temp | 0 °C to +50 °C |
| Storage Temp | −20 °C to +60 °C |
| Humidity | 5–95% RH (Non‑condensing) |
| Vibration (Operational) | 0.5 grms (HD), 1.0 grms (CF) – 10–500 Hz Random |
| Shock (Operational) | 10G, 11 ms |
| Shock (Non‑Operational) | 30G, 11 ms |
| Protection Rating | NEMA 4/4X, IP65 Front |
| Certifications | UL/CUL, CE, Class 1 Div. 2 |
| Weight | Approx. 1.2 kg |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
