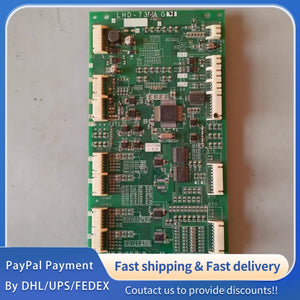

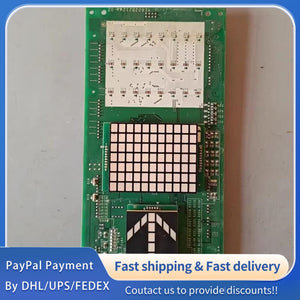

1 PCS used Mitsubishi Elevator Display Panel LHD-730AG21
1 PCS used Mitsubishi Elevator Display Panel LHD-730AG21
1 PCS used Mitsubishi Elevator Display Panel LHD-730AG21
|
Parameter
|
Specification (LHD-730AG21)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand & Origin
|
Mitsubishi Electric, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original display panel produced by Mitsubishi Electric official factory, manufactured in strict accordance with global quality management standards, with full-process quality control to ensure consistent display effect and long service life.
|
|
Product Model
|
LHD-730AG21
|
-
|
Original factory model, unchanged; belonging to Mitsubishi elevator display panel series, standardized design for easy on-site installation, replacement and daily maintenance.
|
|
Product Type
|
Elevator Display Panel, LED Display, Digital Control
|
-
|
Industrial-grade LED elevator display panel with digital control, specially optimized for Mitsubishi elevator control systems, ensuring clear display, fast response and stable operation.
|
|
Working Voltage
|
DC 24 V ±10%
|
V
|
Stable DC 24V power supply, with ±10% voltage tolerance, adapting to different elevator power supply environments and ensuring stable power supply for the display panel.
|
|
Working Current
|
Max. 0.6 A
|
A
|
Low power consumption design, maximum working current 0.6A, effectively reducing energy consumption and avoiding overload of the elevator power supply system.
|
|
Display Type
|
LED Dot Matrix, Monochrome/Gray Scale (Factory Preset)
|
-
|
Adopts high-quality LED dot matrix display, factory preset monochrome or gray scale display mode, clear and bright, easy to view from a distance, suitable for various elevator car and hall environments.
|
|
Display Content
|
Floor Number, Running Direction, Door Status, Fault Code, Prompt Information
|
-
|
Supports real-time display of key elevator status information, including floor number (0-99), up/down running direction, door opening/closing status, fault codes and operation prompts, facilitating passengers and maintenance personnel.
|
|
Communication Protocol
|
RS-485, Mitsubishi Proprietary Communication Protocol
|
-
|
Supports RS-485 and Mitsubishi proprietary communication protocols, realizing seamless connection with Mitsubishi elevator main control boards and control systems, ensuring real-time and accurate data transmission.
|
|
Operating Temperature Range
|
0 ~ 45 °C (Operating); -20 ~ 70 °C (Storage)
|
°C
|
Optimized temperature adaptation design, suitable for elevator car and machine room temperature environments, avoiding overheating or low-temperature failure during long-term continuous operation.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation
|
%
|
Strong humidity resistance, no condensation impact, effectively preventing moisture damage to internal electronic components and circuits, ensuring stable operation in humid environments.
|
|
Protection Level
|
IP30 (Enclosure); IP54 (Optional Protective Cover)
|
-
|
Standard enclosure IP30 protection level, optional protective cover for IP54 level, effectively preventing dust and water splashes from entering, protecting internal components and extending service life.
|
|
Physical Dimensions (W×H×D)
|
180 × 80 × 25 (±1) mm (Standard Version)
|
mm
|
Compact structural design, saving installation space in elevator cars and halls, easy to assemble, disassemble and maintain on site, compatible with standard Mitsubishi elevator installation positions.
|
|
Weight
|
Approx. 0.3 ~ 0.5 kg (Standard Version)
|
kg
|
Lightweight and durable structure, easy to carry and transport during on-site maintenance and replacement, without excessive load on elevator car or hall walls.
|
|
Service Life
|
≥ 50,000 Hours (LED Backlight)
|
Hours
|
High-quality LED backlight, service life up to 50,000 hours or more, reducing replacement frequency and maintenance cost, ensuring long-term stable operation.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, EN 81-20/50, GB 7588
|
-
|
Complies with international quality management systems, elevator safety standards and national standards, meeting global elevator project application requirements, safe and reliable.
|
|
Warranty Period
|
1 Year (Original Factory Warranty)
|
Year
|
Provides 1-year original factory warranty, covering manufacturing defects and performance failures under normal use; professional after-sales team provides technical support and maintenance guidance.
|
|
Compatibility
|
Mitsubishi Elevator Series: MAXIEZ, NEXIEZ, ELENESSA, Standard Passenger/Cargo Elevators
|
-
|
Perfectly compatible with Mitsubishi MAXIEZ, NEXIEZ, ELENESSA series elevators and standard passenger/cargo elevators, easy to replace old display panels without modifying the overall control system.
|
