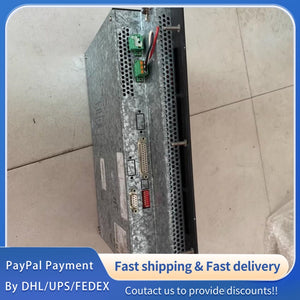

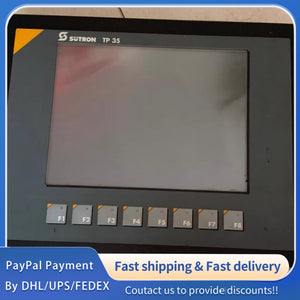

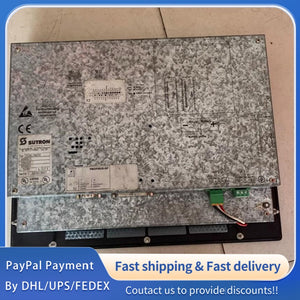

1 PCS used SUTRON Touch Panel HMI TP35NC/086032 #LYQ007
1 PCS used SUTRON Touch Panel HMI TP35NC/086032 #LYQ007
| Parameter Category | Parameter Name | TP35NC/086032 Specification |
|---|---|---|
| Basic Information | Part Number | TP35NC/086032 |
| Manufacturer | SÜTRON Electronic GmbH (Germany) | |
| Product Type | Industrial Touch Panel HMI (Operator Interface) | |
| Series | TP35 Series | |
| Weight | Approx. 1.0 kg | |
| Display Parameters | Display Type | TFT LCD (Analog Resistive Touch) |
| Display Size | 10.92 cm / 4.3" | |
| Resolution | 480 × 272 Pixels (WQVGA) | |
| Touch Type | Analog Resistive (Polyester) | |
| Backlight | LED (Long‑life) | |
| Electrical Parameters | Supply Voltage | 24 V DC (SELV, per DIN EN 61131) |
| Voltage Range | 19.2 V DC – 30.2 V DC (±10%) | |
| Operating Current | ≤ 0.7 A (typical) | |
| Power Connector | 3‑pin Phoenix COMBICON MSTBV 2.5/3‑GF | |
| Insulation Resistance | ≥ 100 MΩ (500 V DC) | |
| Withstand Voltage | 1 kV AC (1 min, between live parts and housing) | |
| Communication & Interface | Communication Protocol | PROFIBUS‑DP (standard) |
| Serial Port | COM1 (RS‑232) | |
| CPU | 32‑bit RISC (EP 7309) | |
| Software | TSwin (proprietary user software) | |
| Mechanical Parameters | Installation | Panel Mount |
| Housing Material | Industrial‑grade plastic (robust) | |
| Front Protection | IP65 (dust‑ and water‑resistant) | |
| Environmental Parameters | Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C | |
| Humidity | 0% – 95% RH (non‑condensing) | |
| Vibration Resistance | 10 – 500 Hz, 3 g amplitude | |
| Shock Resistance | 100 m/s² (10 g), 11 ms | |
| Certifications | Compliance | CE, RoHS, conforms to IEC 60947‑5‑2 |
| Service Life | Backlight Life | ≥ 50,000 hours |
| Touch Life | ≥ 36 million touches per point |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
