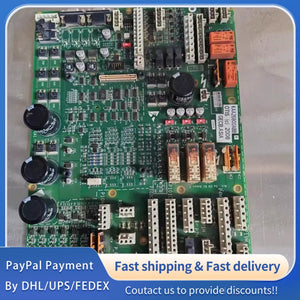

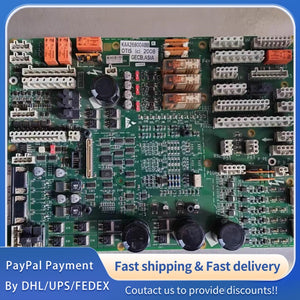

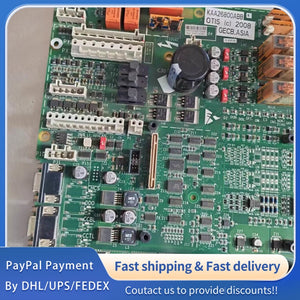

1 PCS used Otis Elevator GECB Mainboard KAA26800ABB6 #LYQ007
1 PCS used Otis Elevator GECB Mainboard KAA26800ABB6 #LYQ007
1 PCS used Otis Elevator GECB Mainboard KAA26800ABB6 #LYQ007
Mainboard Overview: The Otis Elevator GECB Mainboard (Model: KAA26800ABB6) is an original genuine core control component independently developed and manufactured by Otis Elevator official factory. It is the core of Otis GCS (Global Control System) applied in ACD2MR and other elevator control systems, integrating high-reliability serial communication and CANBUS communication technology to connect all elevator components closely[6]. Undergoing strict factory quality inspection, calibration and performance testing, it ensures 100% brand-new original quality without manual modification or secondary processing. Fully compliant with Otis global product standards, elevator safety norms and relevant international certifications, it is a high-stability, high-reliability industrial-grade elevator main control board. Dedicated to elevator operation control, door system management, floor positioning, fault diagnosis and communication coordination, it perfectly matches Otis elevator systems, especially designed to work with Otis latest energy-saving regenerative inverters and permanent magnet synchronous gearless mainframes, ensuring safe, stable and efficient operation of elevators in residential buildings, commercial buildings, office buildings and other scenarios[6].
|
Parameter
|
Specification (KAA26800ABB6)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand & Origin
|
Otis Elevator, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original mainboard produced by Otis official factory, with strict quality control and inspection before delivery to ensure consistent performance and long service life.
|
|
Product Model
|
KAA26800ABB6, GECB Mainboard
|
-
|
Original factory model, unchanged; belonging to Otis GECB series mainboards, compatible with KAA26800ABB1/2/3/4/56 series models, standardized design for easy on-site replacement and maintenance.
|
|
Product Type
|
Elevator Core Control Mainboard, Industrial-grade PCB Board
|
-
|
Industrial-grade printed circuit board (PCB) designed for elevator control, serving as the core of Otis GCS global control system, responsible for overall elevator operation management[2][6].
|
|
Control System
|
Otis GCS (Global Control System), ACD2MR Compatible
|
-
|
Specialized for Otis GCS global control system, perfectly compatible with ACD2MR elevator control system, integrating Otis advanced control technology for stable operation[6].
|
|
Communication Protocol
|
Serial Communication, CANBUS Communication
|
-
|
Adopts Otis high-reliability serial communication and CANBUS communication technology, closely connecting all elevator components to ensure efficient data transmission and coordination.
|
|
Applicable Elevator Type
|
Passenger Elevator, Compatible with Permanent Magnet Synchronous Gearless Mainframe
|
-
|
Suitable for residential and commercial passenger elevators, perfectly matching Otis latest energy-saving regenerative inverters and permanent magnet synchronous gearless mainframes.
|
|
Input Voltage
|
24 V DC (Stable Input), ±10% Voltage Tolerance
|
V DC
|
Stable 24V DC input, with ±10% voltage tolerance, adapting to different elevator power supply environments, ensuring stable operation of the mainboard and connected components.
|
|
Operating Temperature Range
|
0 ~ 55 °C (Operating); -40 ~ 85 °C (Storage)
|
°C
|
Wide operating and storage temperature range, adapting to elevator machine room temperature environments, including normal and slightly high-temperature working conditions.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation
|
%
|
Strong humidity resistance, no condensation impact, preventing moisture-related damage to internal circuits and components, ensuring long-term stable operation in different humidity environments.
|
|
Protection Level
|
IP20 (PCB Board); IP54 (With Protective Cover)
|
-
|
Standard PCB board IP20 protection level, optional protective cover for IP54 level, effectively preventing dust and water splashes from entering, protecting internal electronic components.
|
|
Physical Dimensions (W×H×D)
|
280 × 220 × 30 (±1) mm (Standard Version)
|
mm
|
Compact and reasonable structural design, suitable for installation in elevator control cabinets, saving space and facilitating assembly and disassembly during maintenance.
|
|
Weight
|
Approx. 0.8 ~ 1.0 kg (Standard Version)
|
kg
|
Lightweight structure, easy to carry and transport during on-site maintenance and replacement, without additional load on the control cabinet.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, EN 81-20
|
-
|
Complies with ISO 9001 quality management system and global elevator safety standards, meeting international certification requirements for safe and reliable use in global elevator projects.
|
|
Warranty Period
|
1 Year (Original Factory Warranty)
|
Year
|
Provides 1-year original factory warranty, covering manufacturing defects and performance failures under normal use conditions; professional after-sales team provides technical support and maintenance guidance.
|
|
Packaging Specification
|
Carton Packaging, 30×20×10 cm (Single Package)
|
-
|
Packed in shock-proof and dust-proof carton, protecting the mainboard from damage during transportation; single package size is 30×20×10 cm for convenient storage and transportation.
|
