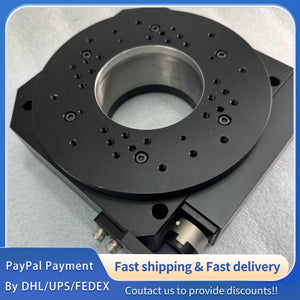

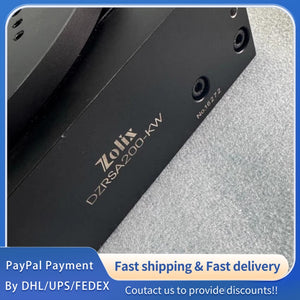

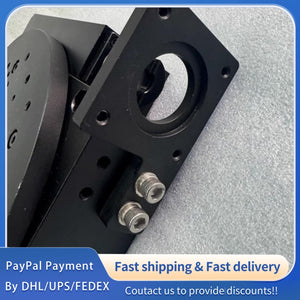

1 PCS used Zolix DZRSA200-KW Electric Turntable #LYQ007
1 PCS used Zolix DZRSA200-KW Electric Turntable #LYQ007
1 PCS used Zolix DZRSA200-KW Electric Turntable #LYQ007
Original Factory Precision Parameters (Model: Zolix DZRSA200-KW Electric Turntable)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
DZRSA200-KW; Zolix (Zhuoli Hanguang) Genuine Original Electric Turntable, 100% unused and unrefurbished genuine parts, consistent with Zolix's official model coding standards. It belongs to high-precision industrial-grade rotary motion control components, designed for dedicated matching with various precision rotary motion control systems, with fixed configuration and excellent environmental adaptability, focusing on high-precision angle positioning, smooth rotation and reliable performance.
|
|
Manufacturer Standard
|
Manufactured by Zolix Instruments Co., Ltd. (Zhuoli Hanguang, Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS and relevant international precision motion control standards; Conforms to Zolix Internal Technical Standard and Electric Turntable Manufacturing Norms, meeting the precision calibration requirements of international high-precision rotary motion control component standards and related equipment specifications.
|
|
|
Core Rotation & Positioning Parameters
|
Turntable Type
|
Electric Turntable; AC Servo Drive; Single-axis rotary motion; Integrated high-precision angle encoder and drive circuit, supporting high-precision angle positioning, continuous rotation and step rotation, suitable for high-precision opto-mechanical and industrial automation scenarios; High integration, reducing external circuit configuration.
|
|
Rotation Range
|
Continuous Rotation: 0~360° Unlimited; Step Rotation: 0.001°~360° Adjustable; Stable rotation performance under rated working conditions, no stuck or offset phenomenon, fully meeting high-precision rotary motion control requirements.
|
|
|
Positioning Resolution
|
Rated Value: 0.001°; Tolerance: ±0.0001°; High-precision angle positioning performance, ensuring accurate positioning of the turntable at any angle within the rotation range, effectively improving the precision of the whole motion control system.
|
|
|
Maximum Rotation Speed
|
Rated Value: 100°/s; Tolerance: ±2°/s; Stable speed performance during rotation, no obvious speed fluctuation, suitable for both high-speed and high-precision rotary motion control scenarios, balancing speed and precision requirements.
|
|
|
Positioning Repeatability
|
≤±0.002°; High repeatability performance, ensuring consistent angle positioning accuracy for multiple rotations, avoiding positioning errors caused by repeated motion, meeting high-precision rotary motion control requirements.
|
|
|
Motor Type
|
AC Servo Motor; Model: Zolix Customized Servo Motor; Stable motor performance, low noise, small vibration, long service life; Matching with dedicated AC servo drive, ensuring smooth and accurate rotation of the turntable.
|
|
|
Encoder Specification
|
Absolute Encoder; Resolution: 131072 Pulses/360°; Power Supply: 5VDC; High-precision angle feedback, real-time monitoring of the turntable's rotation angle and speed, ensuring accurate positioning and motion control; Compatible with the turntable's drive system, realizing closed-loop control of rotary motion.
|
|
|
Electrical Parameters
|
Motor Supply Voltage
|
Rated Value: 220VAC (Single-phase); Tolerance: ±10%; Maximum Supply Voltage: 242VAC; Stable voltage supply performance, ensuring normal operation of the AC servo motor, no burnout or failure under rated voltage conditions.
|
|
Motor Rated Current
|
Rated Value: 1.5A; Tolerance: ±0.1A; Stable current performance during motor operation, low power consumption, reducing heat generation, ensuring long-term stable operation of the motor and turntable.
|
|
|
Encoder Supply Voltage
|
Rated Value: 5VDC; Tolerance: ±0.2VDC; Stable voltage supply for the encoder, ensuring accurate angle feedback, avoiding angle detection errors caused by voltage fluctuation.
|
|
|
Power Consumption
|
Rated Power Consumption: ≤330W (Based on 220VAC × 1.5A); Standby Power Consumption: ≤10W; Low power consumption design, reducing energy consumption, suitable for long-term continuous operation scenarios.
|
|
|
Mechanical & Dimensional Parameters
|
Turntable Surface Diameter
|
Rated Value: 200mm; Tolerance: ±0.1mm; Flatness: ≤0.005mm; Smooth surface, high flatness, ensuring stable placement of the tested workpiece, avoiding positioning errors caused by surface unevenness.
|
|
Physical Dimensions
|
Overall Diameter: 280mm; Height: 120mm; Base Diameter: 250mm; Tolerance: ±0.1mm for each dimension; Compact structure, small space occupation, easy to install and integrate into various motion control systems.
|
|
|
Weight
|
Rated Weight: ≤8kg (Without Accessories); Lightweight design, reducing the load of the motion control system, facilitating installation and transportation.
|
|
|
Installation Method
|
Flange Mounting; Matching Zolix Standard Mounting Holes (4 Holes, Diameter: 6mm); Easy to install and fix, ensuring stable installation, no loosening during rotation, improving rotation stability and positioning accuracy.
|
|
|
Environmental & Durability Parameters
|
Operating Environment
|
Operating Temperature: 0℃ ~ 40℃; Storage Temperature: -20℃ ~ 60℃; Operating Humidity: 10% ~ 80% RH (Non-Condensing); Storage Humidity: < 70% RH (Non-Condensing); Suitable for most laboratory and industrial environments, avoiding harsh environment impact on performance.
|
|
Vibration Resistance
|
Vibration Resistance: 2g (10Hz ~ 500Hz); Effectively resisting external vibration interference, ensuring stable rotation and positioning accuracy of the turntable during operation.
|
|
|
Service Life
|
Service Life: ≥30,000 Hours (Under Rated Working Conditions); Long-term stable operation under normal working conditions, low failure rate; Adopting wear-resistant materials and precision machining process, extending service life.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
