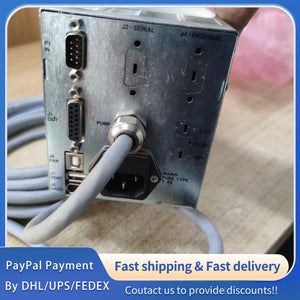

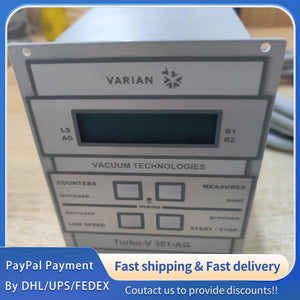

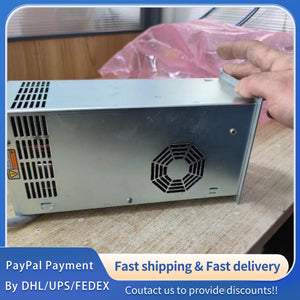

1 PCS NEW Varian Turbo-V301-A Molecular Pump Controller #LYQ007
1 PCS NEW Varian Turbo-V301-A Molecular Pump Controller #LYQ007
| Parameter Category | Parameter Name | Turbo-V301-A Specification |
|---|---|---|
| Basic Information | Product Model | Turbo-V301-A |
| Manufacturer | Varian (Agilent Technologies) | |
| Product Type | Microprocessor‑controlled rack‑mount molecular pump controller | |
| Compatible Pump | Turbo‑V 301 Navigator turbomolecular pump | |
| Form Factor | 1/4 rack unit | |
| Electrical Input | Input Voltage (AC) | 100/120/220/240 VAC, 1‑phase, 50/60 Hz |
| Input Voltage (DC) | 24 VDC ±10% | |
| Max Input Power (AC) | 300 VA | |
| Max Input Power (DC) | 200 W | |
| Standby Power | ≤10 W | |
| Mains Fuse | 2 × T4 A (slow‑blow) | |
| Electrical Output | Output Voltage | 75 VAC, 3‑phase |
| Output Frequency | 963 Hz ±2% | |
| Nominal Output Power | 150 W | |
| Start‑up Power | 150 W | |
| Control & Interface | Control Modes | Front‑panel, remote, serial communication |
| Communication | RS‑232/485; Profibus (optional) | |
| Optoisolator Input (P1) | Min ON: 3 mA; Max: 5 mA | |
| Optoisolator Output (J2) | 24 VDC, 60 mA | |
| Fan Output (P6) | 120 VAC, 1 A | |
| Environmental | Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | −20 °C to +70 °C | |
| Operating Humidity | 0%–95% RH (non‑condensing) | |
| Mechanical | Weight | 4.5 kg (8.4 lbs) |
| Dimensions | Standard 1/4 rack (19‑inch compatible) | |
| Cooling | Natural air convection; forced air/water optional | |
| Protection & Features | Self‑Diagnostics | Built‑in fault detection and protection |
| Interlock Control | For pressure switch, water flow switch, etc. | |
| Pressure Reading | 10⁻³ to 10⁻⁹ mbar (active gauge) | |
| Vent Valve Control | Integrated vent valve driver |
