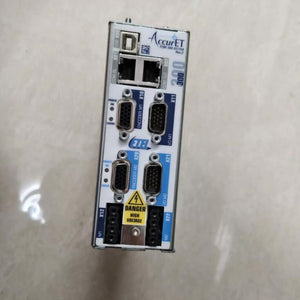

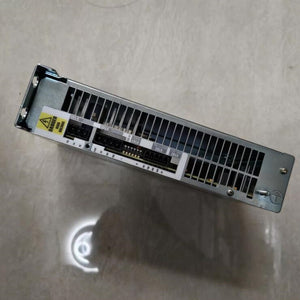

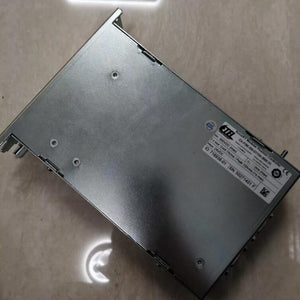

1 PCS used ETEL AccurET EA-P2M-300-07/15A-0000-01 module#LYQ007
1 PCS used ETEL AccurET EA-P2M-300-07/15A-0000-01 module#LYQ007
| Parameter | Value | Unit |
|---|---|---|
| General Information | ||
| Manufacturer | ETEL | - |
| Model | AccurET EA-P2M-300-07/15A-0000-01 | - |
| Product Family | AccurET Modular 300 | - |
| Number of Axes | 2 | - |
| Weight (without/with optional board) | 1.4 / 1.6 | kg |
| Dimensions (H x D x W) | 130 x 217 x 75 | mm |
| Electrical Specifications | ||
| DC Input Voltage | 48 – 340 | VDC |
| Max. Input Current | 8 | Arms |
| Output Current (Per Axis) | ||
| Continuous Current (at 10 kHz PWM) | 7 | Arms |
| Max. Overload/Peak Current | 15 | Arms |
| Performance | ||
| PWM Frequency | 10, 20 | kHz |
| Current Loop Sampling Time | 50 | µs |
| Position Loop Sampling Time | 50 | µs |
| Motion Profile Sampling Time | 500 | µs |
| Encoder Interfaces | ||
| Supported Protocols | EnDat 2.1/2.2, Digital (TTL), Analog 1 Vpp, RS485 | - |
| Max. Input Frequency (Digital) | 10 | MHz |
| Max. Input Frequency (Analog) | 500 | kHz |
| Communication & Interfaces | ||
| USB 2.0 (Setup) | Full Speed (12 Mbps), Type-C | - |
| Ethernet | 10/100/1000 Mbps | - |
| Real-Time Bus | TRANSNET (1 Gbps) | - |
| Safety Features | ||
| Safe Torque Off (STO) | SIL3, Cat. 3, PLd | - |
| Environmental | ||
| Operating Temperature | 0 – 45 | °C |
| Storage Temperature | -20 – 70 | °C |
| Protection | IP20 (Front) | - |
