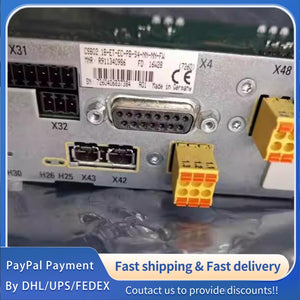

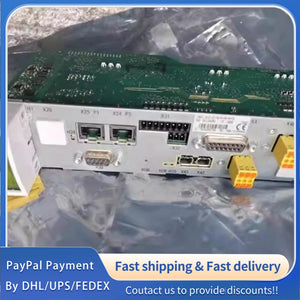

1 PCS USED Rexroth Control Card CSB02.1B-ET-EC-PB-S4-NN-NN-FW #LYQ007
1 PCS USED Rexroth Control Card CSB02.1B-ET-EC-PB-S4-NN-NN-FW #LYQ007
1 PCS USED Rexroth Control Card CSB02.1B-ET-EC-PB-S4-NN-NN-FW #LYQ007
Original Factory Precision Parameters (Model: CSB02.1B-ET-EC-PB-S4-NN-NN-FW)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
CSB02.1B-ET-EC-PB-S4-NN-NN-FW; Bosch Rexroth Genuine Original Control Card, 100% unused and unrefurbished genuine parts, consistent with Rexroth's official model coding standards. Model Interpretation: CSB (Rexroth Control Card Series), 02.1B (Series Version, High-Precision Control), ET (Integrated Ethernet Interface), EC (Enhanced Control Function), PB (Profinet Bus Support), S4 (4-20mA Signal Level Compatibility), NN-NN (Standard Functional Configuration), FW (Latest Factory Firmware Version), belonging to high-precision industrial-grade motion control card.
|
|
Manufacturer Standard
|
Manufactured by Bosch Rexroth AG (Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS, IEC 61131-3, EN 61000 Industrial Standards; Conforms to Rexroth Internal Technical Standard and High-Precision Control Card Manufacturing Norms, as well as EMC Standards EN 55011 (Emission) and EN 55022 (Immunity), meeting the precision calibration requirements of international industrial control standards.
|
|
|
Core Control & Signal Parameters
|
Control Mode
|
Multi-mode Switchable: Position Control, Speed Control, Torque Control, and Synchronous Control; Supports seamless switching between modes, with 18-bit resolution for control signals, ensuring high-precision motion control. Position control supports pulse/direction, CW/CCW pulse and encoder following modes; Speed control supports analog input (0-10V, 4-20mA) and communication control modes.
|
|
Position Control Accuracy
|
Positioning Accuracy: ±0.001mm (Matching Rexroth High-Precision Encoder); Pulse Input Frequency: Up to 1MHz; Supports electronic gear ratio adjustment (1:1 ~ 10000:1), adapting to different encoder resolution requirements; Position Following Error: ≤3 Pulses (Typical), ensuring high-precision positioning control for precision machine tools and robots.
|
|
|
Signal Input/Output
|
Digital Input: 16 Channels (Optically Isolated, 24V DC), Support PNP/NPN Switching; Digital Output: 8 Channels (Optically Isolated, Relay Output); Analog Input: 4 Channels (0-10V, 4-20mA), 16-bit Resolution; Analog Output: 2 Channels (0-10V, 4-20mA), 16-bit Resolution; All I/O signals are optically isolated, ensuring anti-interference and stable operation.
|
|
|
Encoder Compatibility
|
Supports incremental encoder (5V, Line Driver), Absolute Encoder (SSI, EnDat 2.2, BISS-C); Encoder Input Frequency: Up to 2MHz; Built-in encoder signal isolation circuit, strong anti-interference ability, ensuring stable feedback signal transmission; Compatible with resolver feedback for harsh industrial environments.
|
|
|
Response Time
|
Current Loop Response Time: ≤50μs; Speed Loop Response Time: ≤500μs; Position Loop Response Time: ≤2ms; Fast response performance ensures high dynamic characteristics, adapting to rapid start-stop and high-precision positioning scenarios.
|
|
|
Protection Functions
|
Integrated comprehensive protection: Overcurrent, Overvoltage, Undervoltage, Overheating, Signal Loss, Short Circuit Protection; Fault Alarm Output: NPN Open Collector (24V DC); Fault Memory: Stores up to 15 sets of recent fault records, convenient for maintenance and troubleshooting.
|
|
|
Control Cycle
|
Minimum Control Cycle: 100μs; Adjustable Range: 100μs ~ 10ms, supporting high-frequency real-time control, ensuring precise synchronization of multi-axis motion control systems.
|
|
|
Electrical Parameters
|
Power Supply
|
Input Voltage: DC 24V ±10% (Working Voltage); Input Voltage Range: DC 21.6V ~ 26.4V; Power Consumption: ≤15W (Standby), ≤40W (Working); Built-in overvoltage, undervoltage and reverse polarity protection, effectively preventing control card damage caused by voltage abnormality; Auxiliary Power Supply: DC 12V ±5% (for signal circuit).
|
|
Communication Protocol
|
Supports Industrial Fieldbus Protocols: Profinet (PB), Ethernet/IP, CANopen, Modbus RTU; Integrated Ethernet Interface (ET) for high-speed data transmission; Communication Baud Rate: Up to 100Mbps (Ethernet), Up to 1Mbps (Modbus RTU); Supports parameter reading/writing and motion control through communication, facilitating integration into industrial automation systems.
|
|
|
Insulation & Anti-ESD
|
Insulation Resistance: ≥200MΩ (500V DC); Anti-Electrostatic Discharge (ESD): ±15kV (Air), ±8kV (Contact); Insulation Strength: 2.5kV AC (1 Minute); Effectively resisting static interference and voltage impact in industrial environments, ensuring stable operation; Anti-ESD performance complies with international industrial electrostatic protection standards.
|
|
|
Signal Isolation
|
All analog and digital signals adopt optical coupling isolation design, Isolation Voltage: ≥2.5kV AC; Signal Isolation Resistance: ≥100MΩ, effectively isolating external interference, ensuring accurate signal transmission and improving the stability of the control system.
|
|
|
Environmental & Physical Parameters
|
Operating Environment
|
Operating Temperature: 0℃ ~ 60℃ (32℉ ~ 140℉); Storage Temperature: -25℃ ~ 85℃ (-13℉ ~ 185℉); Operating Humidity: 10% ~ 95% RH (Non-Condensing); Storage Humidity: < 85% RH (Non-Condensing); Cooling Method: Natural Cooling + Forced Air Cooling (Optional); Suitable for most industrial indoor environments, avoiding use in strong corrosion, strong radiation and high-dust environments.
|
|
Physical Dimensions
|
Length: 150mm × Width: 100mm × Height: 30mm (±0.5mm); Weight: ≤0.8kg (Without Accessories); Housing Material: High-quality Aluminum Alloy, Good Heat Dissipation, Anti-corrosion, Anti-scratch; Installation Method: DIN Rail Installation / Flange Installation; Ergonomic design, easy to install and maintain.
|
|
|
Anti-Interference & Durability
|
Electromagnetic Compatibility (EMC): Complies with EN 55011 (Class A) Emission, EN 55022 (Class A) Immunity; Vibration Resistance: 10g (10Hz ~ 2000Hz); Shock Resistance: 50g (11ms); Service Life: ≥60,000 Hours (Under Rated Working Conditions); The anti-interference and durability performance meets Rexroth's strict product testing standards, suitable for long-term continuous operation in industrial scenarios.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
