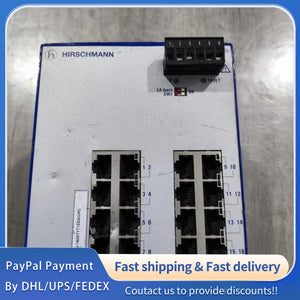

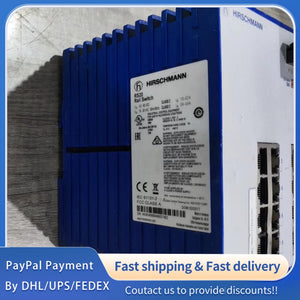

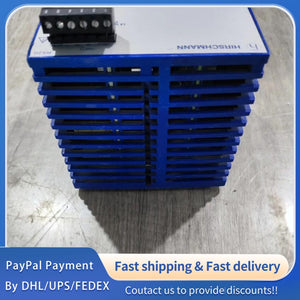

1 PCS used Hirschmann RS20-1600T1T1SDAUHC Switch #LYQ007
1 PCS used Hirschmann RS20-1600T1T1SDAUHC Switch #LYQ007
1 PCS used Hirschmann RS20-1600T1T1SDAUHC Switch #LYQ007
Original Factory Precision Parameters (Model: Hirschmann RS20-1600T1T1SDAUHC Switch)
|
Parameter Category
|
Parameter Name
|
RS20-1600T1T1SDAUHC Specification
|
|
Basic Information
|
Product Model
|
RS20-1600T1T1SDAUHC; Hirschmann Genuine Original Industrial Ethernet Switch, 100% unused and unrefurbished genuine parts; Industrial-grade managed switch, specialized for industrial on-site network communication, with stable data transmission and reliable network management functions
|
|
Manufacturer Standard
|
Manufactured by Hirschmann; Complies with CE, UL, IEC 61000, IEEE 802.3, ISO 9001 Standards; Conforms to Hirschmann Internal Technical and Quality Norms for Industrial Ethernet Switches; Anti-EMI/EMS design meets industrial high-stability communication requirements, strong anti-interference ability
|
|
|
Product Application
|
Industrial Control System Network, Power Plant Communication Network, Petrochemical Enterprise Network, Intelligent Manufacturing Workshop Network, Railway Transportation Network, Mine Automation Network, Suitable for various industrial situations requiring stable and high-speed network communication
|
|
|
Core Network Parameters
|
Switch Type
|
Industrial Managed Ethernet Switch; Supports Layer 2 switching function, optional Layer 3 routing function (factory customization); Suitable for industrial high-reliability network deployment
|
|
Port Configuration
|
16 x 10/100/1000BASE-T RJ45 Ports; 2 x 1000BASE-X SFP Slots (Dual SFP Interfaces); All ports support auto-negotiation, auto-MDI/MDI-X, adapting to different network connection needs
|
|
|
Data Transmission Rate
|
10BASE-T: 10 Mbps (Half/Full Duplex); 100BASE-TX: 100 Mbps (Half/Full Duplex); 1000BASE-T: 1000 Mbps (Full Duplex); 1000BASE-X: 1000 Mbps (Full Duplex); High-speed data transmission, ensuring smooth industrial data communication
|
|
|
Switching Capacity
|
≥36 Gbps; Large switching capacity, supporting concurrent data transmission of all ports, no packet loss or delay under full load
|
|
|
Packet Forwarding Rate
|
≥26.8 Mpps; Fast packet forwarding speed, reducing network latency, adapting to real-time industrial data transmission requirements
|
|
|
VLAN Support
|
Supports 802.1Q VLAN, Port-based VLAN, MAC-based VLAN; VLAN ID Range: 1-4094; Up to 256 VLANs Configurable; Effectively isolate network segments, improve network security and stability
|
|
|
Network Management
|
Supports Web Management, CLI (Command Line Interface), SNMP v1/v2c/v3; Supports RMON, Syslog, Telnet/SSH; Convenient for remote network monitoring and configuration, reducing maintenance costs
|
|
|
Redundancy Function
|
Supports Hirschmann Rapid Spanning Tree (Hiper Ring), Ring Redundancy Recovery Time ≤30 ms; Supports STP/RSTP/MSTP; Ensures industrial network high reliability, avoiding network interruption caused by single point of failure
|
|
|
Electrical & Power Parameters
|
Power Supply Voltage
|
DC 24 V (Standard); Optional DC 12-48 V Wide Voltage (Factory Customization); Dual Power Supply Input (Redundant Power Supply); Adapts to different industrial power supply environments, ensuring stable switch operation
|
|
Rated Current
|
≤1.5 A (DC 24 V, Full Load); Low power consumption, reducing energy consumption of the whole network system, suitable for long-term continuous operation
|
|
|
Input Signal Type
|
Ethernet Signal: RJ45 Ports (Twisted Pair), SFP Slots (Fiber Optic); Control Signal: RS232/RS485 (Optional); Compatible with various industrial network devices and sensors
|
|
|
Output Signal Type
|
Ethernet Signal: RJ45 Ports (Twisted Pair), SFP Slots (Fiber Optic); Alarm Output: 2 x Relay Output (NO/NC); Convenient for network fault alarm and equipment linkage
|
|
|
Power Supply Ripple
|
≤1% of Nominal Voltage; Low power supply ripple, avoiding interference to network signals and ensuring stable communication performance
|
|
|
Leakage Current
|
≤0.02 mA; Low leakage current, avoiding false signal output and ensuring reliable operation of the switch and network system
|
|
|
Insulation Resistance
|
≥1000 MΩ (500 V DC); High insulation performance, preventing electric leakage, ensuring safe operation in industrial high-voltage environment
|
|
|
Efficiency
|
≥92% (Full Load); High energy efficiency, reducing long-term operation costs of the industrial network system
|
|
|
Protection & Safety Parameters
|
Over-Current Protection
|
Automatic Current Limiting & Alarm; Cut off output when load current exceeds 150% of rated value, protect internal circuits of the switch and power supply system
|
|
Short-Circuit Protection
|
Instantaneous Short-Circuit Protection (Response Time ≤1 ms); Automatic Recovery after Fault Elimination; Prevent damage to the switch caused by output short circuit
|
|
|
Reverse Polarity Protection
|
Built-in Reverse Polarity Protection Circuit; Prevent switch damage caused by wrong power supply connection, standard configuration for Hirschmann industrial switches
|
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Effectively resist static electricity interference in industrial environment, avoiding damage to internal network chips and circuit boards
|
|
|
Surge Protection
|
±2 kV (Power Supply); ±1 kV (Ethernet Ports); Resist voltage surge interference in industrial power grid and network lines, ensure stable operation of the switch in harsh electrical environment
|
|
|
Waterproof & Dustproof Protection
|
Protection Class IP30 (Standard); IP65 Optional (Factory Customization); Suitable for installation in industrial control cabinets and general industrial production sites, avoiding damage caused by dust and water droplets
|
|
|
Over-Temperature Protection
|
Alarm & Cut Off Output when Internal Temperature Exceeds 70℃; Automatic Recovery after Temperature Returns to Normal (≤60℃); Protect internal components from overheating damage
|
|
|
Over-Voltage Protection
|
Cut off Power & Alarm when Power Supply Voltage Exceeds 30 V DC; Prevent damage caused by abnormal power supply voltage in industrial power grid
|
|
|
Under-Voltage Protection
|
Alarm & Cut off Output when Power Supply Voltage is Lower than 18 V DC; Avoid switch malfunction caused by low voltage, protect network communication stability
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-40℃ ~ 70℃; Stable operation in extreme temperature environments, adapt to various industrial working conditions such as high-temperature workshops and low-temperature warehouses
|
|
Storage Temperature
|
-40℃ ~ 85℃; Stable storage performance, no performance degradation after long-term storage in harsh environments, convenient for transportation and inventory
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction caused by humidity, ensuring stable operation in coastal or wet areas
|
|
|
Installation Type
|
DIN Rail Installation / Panel Installation (Switchable); Easy to Install and Disassemble, Compatible with Standard Industrial Control Cabinets and Network Distribution Cabinets
|
|
|
Dimensions (L×W×H)
|
130×100×50 mm (±0.1 mm); Compact structure, small installation space, easy to integrate with industrial control systems and network equipment
|
|
|
Structure Material
|
Housing: Aluminum Alloy (Heat Dissipating & Anti-Corrosion); Internal Components: High-Precision Network Chips + Copper Alloy Circuits; High strength, wear-resistant, corrosion-resistant, good heat dissipation performance, adapting to harsh industrial environment, long service life
|
|
|
Functional & Other Parameters
|
Communication Protocol
|
Supports TCP/IP, UDP, ICMP, ARP, DHCP, DNS, HTTP, HTTPS, SNMP, RSTP/MSTP, Hiper Ring Protocols; Compatible with various industrial network protocols, easy to integrate into industrial automation systems
|
|
Cable Length
|
RJ45 Port: Up to 100 m (Cat5e/Cat6 Cable); SFP Port: Up to 10 km (Single-Mode Fiber), Up to 550 m (Multi-Mode Fiber); Adapt to different industrial on-site wiring distances
|
|
|
Vibration Resistance
|
10~500 Hz, 1.5 mm Amplitude; Resist mechanical vibration generated by switch operation and industrial equipment, ensure stable network communication performance
|
|
|
Shock Resistance
|
50 g (11 ms); Resist mechanical shock caused by switch collision or equipment transportation, avoid component damage and network failure
|
|
|
Service Life
|
≥150000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency and cost of the industrial network system
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
