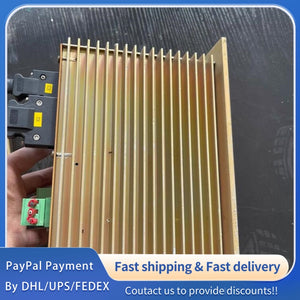

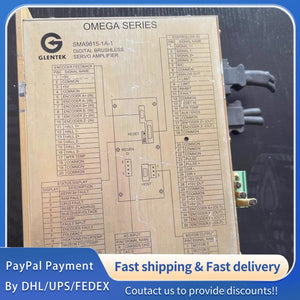

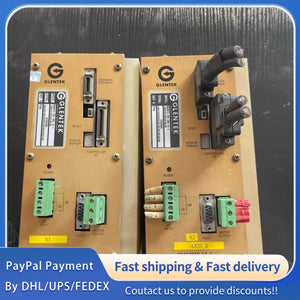

1 PCS used GLENTEK SMA9815-1A-1 Digital Brushless Servo Amplifier#LYQ007
1 PCS used GLENTEK SMA9815-1A-1 Digital Brushless Servo Amplifier#LYQ007
| Parameter | Specification |
|---|---|
| Model | SMA9815-1A-1 |
| Series | Omega Series Digital PWM Brushless Servo Amplifier |
| Control Type | DSP‑controlled digital servo drive |
| Output Current (Continuous) | 15 A RMS |
| Output Current (Peak) | 30 A (2x continuous) |
| Input Voltage (AC) | 110‑130 VAC or 208‑240 VAC (1‑/3‑phase, 50/60 Hz) |
| Input Voltage (DC) | 30‑370 VDC (module version) |
| PWM Frequency | 25 kHz (standard) |
| Current Loop Bandwidth | Up to 3 kHz |
| Control Modes | ±10 VDC (current/torque, velocity), pulse & direction, encoder follower, CW/CCW |
| Feedback Support | Quadrature encoder, resolver, analog sin/cos, serial encoders (BiSS, EnDat) |
| Communication | RS‑232 / RS‑485 (115.2k baud) |
| Isolation | Full optical isolation (signal‑power) |
| Protection | Output short‑circuit, overcurrent, over/undervoltage, over‑temperature (drive/motor) |
| Memory | Non‑volatile parameter storage |
| Software | MotionMaestro (Windows‑based setup/tuning) |
| Operating Temp | 0°C to 40°C (no derating); up to 50°C (25% current derate) |
| Storage Temp | -40°C to 80°C |
| Humidity | 5‑95% RH, non‑condensing |
| Construction | SMT, compact module design |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
