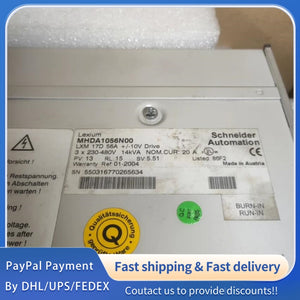

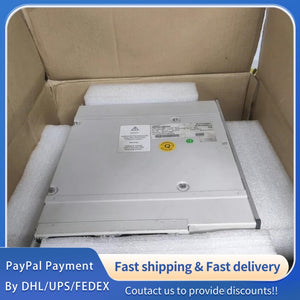

1 PCS NEW Schneider Drive MHDA1056N00 #LYQ007
1 PCS NEW Schneider Drive MHDA1056N00 #LYQ007
|
Item
|
Specification
|
|---|---|
|
Part Number/Model
|
MHDA1056N00
|
|
Product Name
|
Schneider MHDA1056N00 Servo Drive
|
|
Product Series
|
Schneider MHDA Series High-Performance Servo Drives, engineered for precise motion control with high dynamic response and reliability in industrial automation systems.
|
|
Brand
|
Schneider Electric (A global leader in energy management and industrial automation, renowned for innovative servo control solutions.)
|
|
Parameter
|
Value
|
|---|---|
|
Input Voltage
|
Three-Phase AC 380-480V ±15%
|
|
Input Frequency
|
50/60Hz ±5%
|
|
Maximum RMS Input Current
|
18A
|
|
DC Bus Voltage
|
540-670V DC (rectified from AC input)
|
|
Rated Output Power
|
5.5kW
|
|
Standby Power Consumption (No Load)
|
≤50W
|
|
Power Protection
|
Overvoltage (DC bus >800V auto-cutoff); Undervoltage (DC bus <450V alarm); Surge protection (IEC 61000-4-5); Overcurrent (300% rated current instantaneous cutoff).
|
|
Parameter
|
Value
|
|---|---|
|
Rated Output Current
|
16A (continuous)
|
|
Peak Output Current
|
48A (2 seconds duration)
|
|
Output Frequency Range
|
0-500Hz (adjustable)
|
|
Motor Compatibility
|
Schneider MH Series Servo Motors
|
|
Maximum Continuous Field Current
|
2A
|
|
Over-Torque Capacity
|
130% rated torque (continuous); 220% rated torque (2 seconds, for heavy-load startup/emergency).
|
|
Parameter
|
Value
|
|---|---|
|
Control Algorithm
|
Advanced Vector Control (Field-Oriented Control)
|
|
Control Modes
|
Position Control, Speed Control, Torque Control (switchable)
|
|
Positioning Accuracy
|
±0.001° (micron-level precision)
|
|
Speed Control Range (Closed-Loop)
|
1:1000
|
|
Speed Stability
|
±0.01% (static); ±0.1% (dynamic)
|
|
Response Time
|
≤2ms (current loop); ≤5ms (speed loop)
|
|
Acceleration/Deceleration Time
|
0.1-3600s (adjustable, linear/S-curve ramp)
|
|
Encoder Interface
|
Absolute Encoder (25-bit resolution); Incremental Encoder (1024-10000 PPR); Optically isolated for anti-interference.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
