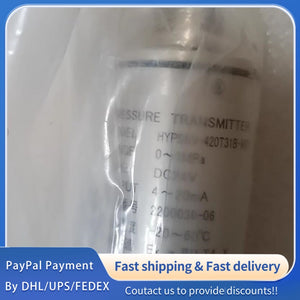

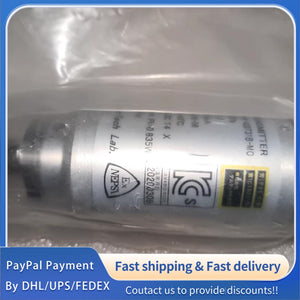

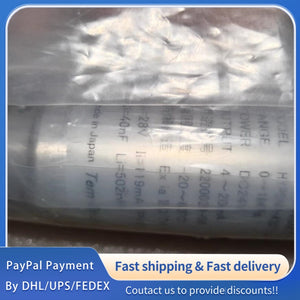

1 PCS new Tem-Tech Pressure Transmitter HYPSNV-420T31B-MO #LYQ007
1 PCS new Tem-Tech Pressure Transmitter HYPSNV-420T31B-MO #LYQ007
| Parameter Category | Parameter Name | HYPSNV-420T31B-MO Specification |
|---|---|---|
| Basic Information | Product Model | HYPSNV-420T31B-MO |
| Basic Information | Manufacturer | Tem-Tech Lab. |
| Basic Information | Product Type | Hygienic flush-diaphragm pressure transmitter |
| Basic Information | Pressure Type | Gauge pressure (G) |
| Basic Information | Output Signal | 4–20 mA two-wire |
| Core Performance | Measuring Range | Customizable (typical: 0–1 MPa / 0–10 bar) |
| Core Performance | Accuracy Class | ±0.5% FS |
| Core Performance | Long-term Stability | ≤±0.1% FS/year |
| Core Performance | Response Time | ≤10 ms |
| Core Performance | Overload Pressure | 150% FS (max.) |
| Electrical Parameters | Supply Voltage | DC 12–30 V |
| Electrical Parameters | Operating Current | ≤20 mA (at 24 V DC) |
| Electrical Parameters | Insulation Resistance | ≥100 MΩ (500 V DC) |
| Electrical Parameters | Withstand Voltage | 500 V AC, 1 min (conductor–ground) |
| Mechanical Parameters | Process Connection | Hygienic flush diaphragm (T31B type) |
| Mechanical Parameters | Wetted Material | SUS316L stainless steel |
| Mechanical Parameters | Housing Material | Stainless steel (SUS304) |
| Mechanical Parameters | Diaphragm Surface Roughness | Ra ≤ 0.8 μm |
| Mechanical Parameters | Weight | Approx. 0.15 kg |
| Environmental Parameters | Media Temperature | -20 °C to +85 °C (max. +150 °C for short-term) |
| Environmental Parameters | Ambient Temperature | -20 °C to +60 °C |
| Environmental Parameters | Storage Temperature | -40 °C to +85 °C |
| Environmental Parameters | Operating Humidity | 0–95% RH (non-condensing) |
| Environmental Parameters | Protection Level | IP65 |
| Environmental Parameters | Vibration Resistance | 10–500 Hz, 3 g amplitude |
| Environmental Parameters | Shock Resistance | 100 m/s² (10 g), 11 ms |
| Safety & Compliance | Hygienic Standards | Compliant with FDA, EHEDG, GMP |
| Safety & Compliance | Explosion-proof | Optional (intrinsically safe) |
| Safety & Compliance | Certifications | KOSHA, NEPSI (for explosion-proof versions) |
| Application | Typical Applications | Food, beverage, pharmaceutical, biotech, CIP/SIP processes |
