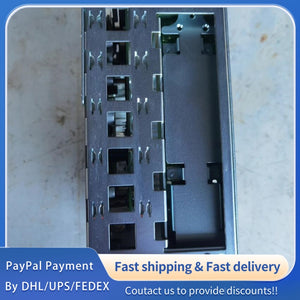

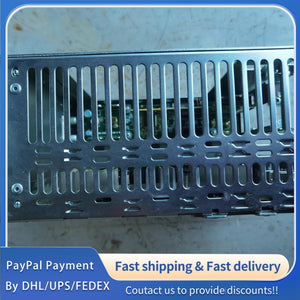

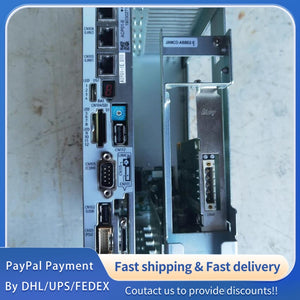

1 PCS USED Yaskawa JZNC-ARK51-1E Robot module #LYQ007
1 PCS USED Yaskawa JZNC-ARK51-1E Robot module #LYQ007
1 PCS USED Yaskawa JZNC-ARK51-1E Robot module #LYQ007
Product Overview: The Yaskawa JZNC-ARK51-1E is a genuine original factory robot controller module, independently developed and manufactured by Yaskawa Electric Corporation (a global leader in industrial automation, motion control and robotics technology). Adhering to Yaskawa's strict international production standards and precision manufacturing processes, this module is a high-reliability, high-performance core component of Yaskawa robot control systems, designed for precise control and signal transmission of industrial robots. As a key part of the robot control unit, it is mainly used to connect and control robot axes, execute motion commands, and realize real-time communication with the main controller, ensuring the stable, accurate and efficient operation of industrial robots. Widely applicable to Yaskawa robot series such as Motoman, it is suitable for industrial scenarios including automated assembly, welding, handling, spraying and machining, featuring excellent anti-interference ability, stable signal transmission and strong compatibility, effectively guaranteeing the reliability and precision of robot motion control.
Original Factory Precision Parameters
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
Yaskawa Electric Corporation Genuine Original Factory, Compliant with EN55011, EN50178, UL508C, CSA22.2 No.14, RoHS International Industrial Standards and EMC Norms
|
|
Product Model
|
JZNC-ARK51-1E, Genuine Original Factory Robot Controller Module, All Components Intact, No Counterfeit or Refurbished Parts, Factory Calibrated Before Delivery, RoHS Compliant
|
|
Product Type
|
Industrial-Grade Robot Controller Module, Core Component of Yaskawa Robot Control System, Used for Robot Axis Control, Motion Command Execution and Signal Transmission
|
|
Control Axes
|
Supports Up to 6 Robot Axes Control, Compatible with Yaskawa Motoman Series Robots, Supports Multi-Axis Synchronous Motion, Precise Positioning and Trajectory Control
|
|
Input/Output Signals
|
Digital Input: 16 Channels (PNP/NPN Switchable); Digital Output: 16 Channels (Transistor Output, Max Current 0.5A/Channel); Analog Input: 4 Channels (12-Bit Resolution, 0-10V DC); Analog Output: 2 Channels (12-Bit Resolution, 0-10V DC)
|
|
Communication Interface
|
Built-in RS-485 Communication Port (Modbus RTU Protocol), Ethernet Interface (10/100 Mbps, TCP/IP Protocol), Supports Communication with Yaskawa Main Controller, HMI and Industrial Control System
|
|
Supply Voltage
|
DC 24V ±10% (21.6V ~ 26.4V), Current Consumption: ≤ 2A (Typical), Reverse Polarity Protection, Overcurrent Protection
|
|
Positioning Accuracy
|
Positioning Accuracy: ±0.01 mm, Repeat Positioning Accuracy: ±0.005 mm, Supports High-Precision Trajectory Control, Meeting Industrial Robot Precision Machining and Assembly Requirements
|
|
Operating Environment Temperature
|
0℃ ~ +55℃ (32°F ~ 131°F), Stable Operation in Industrial Workshop Temperature Range, Resistant to Temperature Fluctuations, No Condensation Allowed; Derating Required When Temperature Exceeds 40℃
|
|
Storage Temperature Range
|
-20℃ ~ +65℃ (-4°F ~ 149°F), Relative Humidity: ≤ 90% (Non-Condensing), Anti-Mildew Design, Suitable for Long-Term Storage in Dry and Ventilated Environments
|
|
Protection Level
|
IP20, Cabinet-Mounted Type, Dustproof, Suitable for Installation in Industrial Control Cabinets with Minimal Dust Exposure, Preventing Touch of Live Parts
|
|
Environmental Requirements
|
No Corrosive Gas, Dust or Oil Mist in Operating and Storage Environment; Vibration Resistance: 10~60Hz, Double Amplitude 0.1mm or Acceleration ≤5.88m/s² (X/Y/Z Directions); Shock Resistance: Acceleration ≤19.6m/s² (X/Y/Z Directions, 2 Times Each)
|
|
Insulation & Withstand Voltage
|
Insulation Resistance: ≥0.5MΩ (DC500V) between Power Terminals and FG; Withstand Voltage: AC2500V for 1 Minute (Power Terminals & FG), AC500V for 1 Minute (Control Signals & FG)
|
|
Certifications
|
CE, FCC, RoHS, EN55011 Class A Group1, EN61000 Series, UL508C, CSA22.2 No.14, KC (Korea Radio Law) Compliant, Meeting International Safety and EMC Standards
|
|
Service Life
|
Typical: 50,000 Hours (Continuous 24/7 Operation) at Average Ambient Temperature 40℃ (100% Rated Load Output), Consistent with Yaskawa Industrial Robot Component Durability Standards
|
|
Dimensions & Weight
|
Dimensions (W×H×D): 180 mm × 220 mm × 80 mm; Weight: Approximately 1.8 kg, Compact Design for Cabinet Installation, Easy to Assemble and Maintain in Industrial Control Cabinets
|
|
Special Features
|
Built-in Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault Protection Functions; Supports Fault Self-Diagnosis and Alarm Function (Diagnostic Code Display); High Compatibility with Yaskawa Robot Systems; Stable Signal Transmission, Low Interference
|
