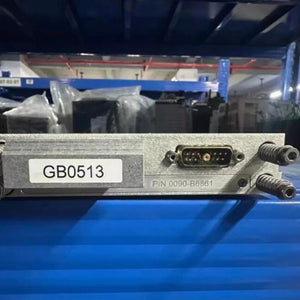

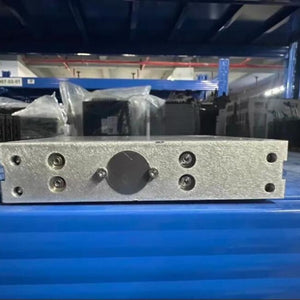

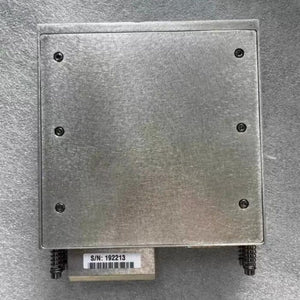

1 PCS used AMAT 0090-B6861 iAPD 100 Detector #LYQ007
1 PCS used AMAT 0090-B6861 iAPD 100 Detector #LYQ007
| Parameter | Specification | Conditions | Unit |
|---|---|---|---|
| Part Number | 0090-B6861 | - | - |
| Product Name | iAPD 100 Detector | - | - |
| Detector Type | Silicon Avalanche Photodiode (Si APD) | - | - |
| Wavelength Response Range | 200 ~ 1100 | Typical | nm |
| Peak Response Wavelength | 750 ~ 905 | Typical | nm |
| Responsivity | ≥ 55 | @ 905 nm, M=100 | A/W |
| Response Current at Edge Wavelength | ≥ 15% of Peak | 250 nm, 1100 nm | % |
| Gain (M) | 10 ~ 1000 | Adjustable | - |
| Optimum Gain Range | 50 ~ 100 | Recommended | - |
| Dark Current | ≤ 10 | M=100, 25°C | nA |
| Breakdown Voltage (VBR) | 160 ~ 240 | IR=2 µA | V |
| Temperature Coefficient of VBR | 1.25 ~ 1.55 | - | V/K |
| Excess Noise Factor | ≤ 2.5 | M=100 | - |
| Rise Time (tR) | ≤ 2 | M=100, λ=905 nm, RL=50 Ω | ns |
| Cut-off Frequency | ≥ 0.2 | -3 dB | GHz |
| Capacitance | ≤ 4 | M=100 | pF |
| Active Area | 1.77 | - | mm² |
| Input Voltage | 12 ~ 24 | DC | V |
| Power Consumption | ≤ 1.5 | Typical | W |
| Operating Temperature | -40 ~ +85 | - | °C |
| Storage Temperature | -55 ~ +125 | - | °C |
| Package | Hermetic TO5 | Metal can | - |
| Application | High-sensitivity optical detection, Semiconductor metrology, Precision sensing | - | - |
| Compatibility | AMAT iAPD 100 System | Factory calibrated | - |
