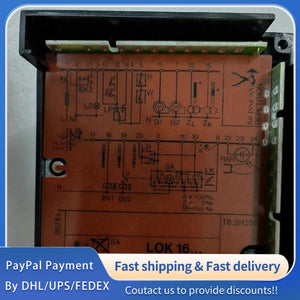

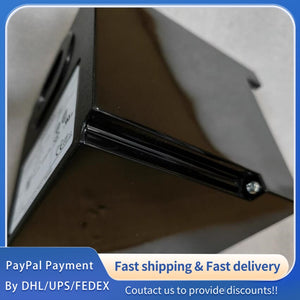

1 PCS USED SIEMENS LOK16.650A27 Burner Controller #LYQ007
1 PCS USED SIEMENS LOK16.650A27 Burner Controller #LYQ007
| Parameter | Value | Description |
|---|---|---|
| Model | LOK16.650A27 | Heavy‑oil burner controllerIndustry Mall - Siemens |
| Supply Voltage | AC 230 V, ‑15% / +10% | Mains voltage |
| Frequency | 50/60 Hz ±6% | Mains frequency |
| Power Consumption | Approx. 3.5 VA | Rated power |
| Fuse (Internal) | T6.3 H 250 V | Unit fuse (DIN EN 60127) |
| External Primary Fuse | Max. 16 A (slow‑blow) | External protection |
| Protection Class | IP40 | Enclosure protection |
| Ambient Temperature | ‑20 °C to +60 °C | Operating temperature range |
| Relative Humidity | < 95% RH (non‑condensing) | Environmental humidity |
| Weight | Approx. 1000 g (base: 165 g) | Net weight |
| Flame Detection | Photocell RAR9 | Silicon detector typeIndustry Mall - Siemens |
| Min. Detector Current | DC 6 µA | Required flame signal current |
| Max. Detector Current | DC 38 µA | Permissible flame signal current |
| Pre‑purge Time (t1) | 67.5 s | Pre‑ventilation with air damper fully open |
| Safety Time (TSA) | 5 s | First safety time for flame establishment |
| Pre‑ignition Time (t3) | 2.5 s | Ignition transformer on‑time |
| Post‑ignition Time (t3n) | 15 s | Ignition hold time |
| Valve Release Interval (t4) | 7.5 s | From TSA start to valve enable (terminal 19) |
| Load Release Interval (t5) | 7.5 s | From t4 end to load enable (terminal 20) |
| Post‑purge Time (t6) | 15 s | Post‑ventilation time |
| Afterburn Time (t13) | 15 s | Permissible afterburn period |
| Air Damper Delay (t16) | 5 s | Startup to damper open command |
| Sequence Switch Off (t20) | 12.5 s | Interval to self‑shutdown |
| Compliance | EN 298:2012, EN 230:2005 | European standards |
| Application | Heavy‑oil forced‑draft burners | Medium/high‑capacity multistage/modulatingIndustry Mall - Siemens |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
