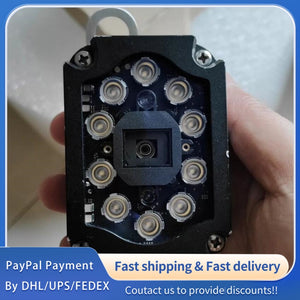

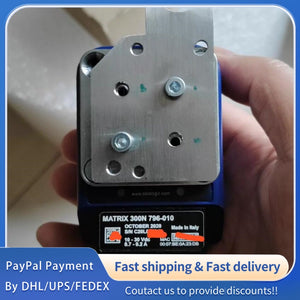

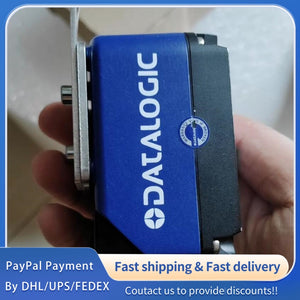

1 PCS used Datalogic Matrix300N 796-010 Decoder #LYQ007
1 PCS used Datalogic Matrix300N 796-010 Decoder #LYQ007
| Parameter | Specification |
|---|---|
| Model | Matrix300N 796-010 |
| Product Type | Industrial 2D Image-Based Barcode Reader |
| Sensor | 1.3 MP CMOS Global Shutter (1280 x 1024 pixels) |
| Frame Rate | 60 fps |
| Lens Type | 9 mm Liquid Lens (Electronic Focus Control) |
| Field of View | Horizontal: 40°, Vertical: 32° |
| Illumination | White Medium Angle (Bright/Dark Field) |
| Reading Distance | 20 – 550 mm |
| Minimum Code Resolution | 0.13 mm (5 mils) |
| Supported Codes | 1D: Code 128, Code 39, Interleaved 2 of 5, etc.
|
| Power Supply | 10 – 30 VDC; PoE (IEEE 802.3af) |
| Power Consumption | Max. 8 W (Typical 5 W) |
| Interfaces | Ethernet (TCP/IP, PROFINET, EtherNet/IP), RS232, ID-NET |
| I/O | 2 Opto-Isolated Inputs, 3 Programmable Outputs (PNP/NPN) |
| Housing | Aluminum |
| Dimensions | 95 x 54 x 43 mm |
| Weight | 238 g |
| Protection | IP67, ESD-Safe |
| Operating Temp | 0 – 45 °C (Liquid Lens Mode) |
| Storage Temp | -20 – 70 °C |
| Certifications | AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022 |
