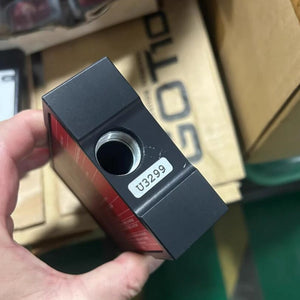

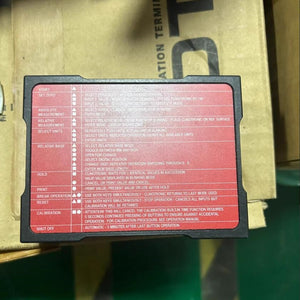

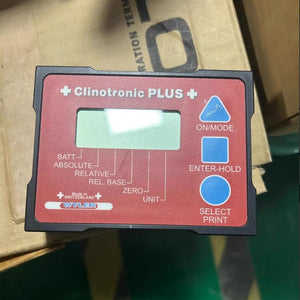

1 PCS used WYLER Clinotronic PLUS Digital level gauge #LYQ007
1 PCS used WYLER Clinotronic PLUS Digital level gauge #LYQ007
| Parameter | Details |
|---|---|
| Product Model | Clinotronic PLUS |
| Measuring Range | ± 45° (Standard), ± 60° (Option) |
| Measuring Capacity | 0 - 360° |
| Sensitivity | 5 arcsec (0.02 mm/m) |
| Resolution | Selectable (0.01°, 0.001°, 1 arcsec, 0.01 mm/m, etc.) |
| Limits of Error (± 45°) | 0 - 10°: ≤ 2 arcmin + 1 digit |
| 10 - 30°: ≤ 3 arcmin + 1 digit | |
| 30 - 45°: ≤ 1.5 arcmin + 1 digit | |
| Limits of Error (± 60°) | 45 - 60°: ≤ 1 arcmin + 1 digit |
| Response Time | < 5 seconds |
| Repeatability | < 0.01° |
| Temperature Coefficient | < 0.01°/°C |
| Measuring Modes | Absolute, Relative (Zero-setting) |
| Display Units | Degrees, Arcmin, Arcsec, Gon, mm/m, in/in |
| Power Supply | 1 x 1.5 V AA (Alkaline) / 1 x 1.2 V AA (Rechargeable) |
| Battery Life | Alkaline: ~130 hrs; Lithium: ~300 hrs |
| External Power | 5 V DC |
| Interface | RS-485 (Serial), 9600 bps, 7 Data bits, 2 Stop bits |
| Housing Material | Hard anodized aluminum |
| Base | 4-sided, ground, optional magnetic inserts / M3 threads |
| Protection Class | IP 52 |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -30 °C to 70 °C |
| Relative Humidity | Max. 80% RH (up to 31°C), decreasing to 50% RH at 40°C |
| Dimensions (L x W x H) | 100 x 75 x 30 mm |
| Weight | Approx. 400 g |
| Features | Built-in calibration program, Low battery indicator, Data retention during power failure |
| Standards | WYLER specification |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
