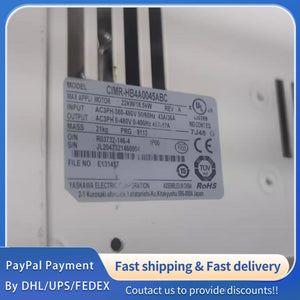

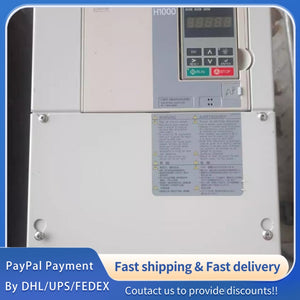

1 PCS used Yaskawa Inverter CIMR-HB4A0045ABC H1000 Series #LYQ007
1 PCS used Yaskawa Inverter CIMR-HB4A0045ABC H1000 Series #LYQ007
1 PCS used Yaskawa Inverter CIMR-HB4A0045ABC H1000 Series #LYQ007
Inverter Overview: Yaskawa Inverter (Model: CIMR-HB4A0045ABC) belongs to the original genuine H1000 series industrial-grade high-performance inverter, independently developed and manufactured by Yaskawa Electric Corporation official factory. It adopts Yaskawa's advanced high-performance vector control technology, 32-bit high-speed CPU control chip and optimized cooling system, undergoing strict factory precision calibration, full-process quality inspection and long-term stability testing to ensure 100% brand-new original quality without any manual modification or secondary processing. Fully compliant with Yaskawa Electric global product standards, international industrial control norms and relevant international certifications, it features ultra-high control precision, excellent energy-saving effect, strong anti-interference ability, reliable operation and wide adaptability. As a core industrial control component, it is mainly used for frequency conversion speed regulation and accurate torque control of AC motors, widely applicable in industrial fields such as heavy industry, machinery manufacturing, chemical industry, electric power, metallurgy, building materials and water treatment. It can operate stably in harsh industrial environments such as high temperature, dust and voltage fluctuation, perfectly matching various high-power industrial motor loads and Yaskawa Electric industrial control equipment, and supporting multiple expansion functions to meet diverse industrial control needs.
|
Parameter
|
Specification (CIMR-HB4A0045ABC)
|
Unit
|
Yaskawa Factory Notes (Original Description)
|
|
Brand & Origin
|
Yaskawa Electric Corporation, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original inverter produced by Yaskawa Electric official factory, manufactured in strict accordance with Yaskawa global quality management standards, ensuring consistent performance and long service life.
|
|
Product Series & Model
|
H1000 Series, CIMR-HB4A0045ABC
|
-
|
Original Yaskawa factory model, unchanged; H1000 series high-performance inverter, standardized design for easy installation, replacement, debugging and on-site maintenance, compatible with Yaskawa standard accessories.
|
|
Product Type
|
Industrial-grade AC Inverter, Variable Frequency Speed & Torque Control Component
|
-
|
Industrial-grade high-performance inverter of Yaskawa H1000 series, specialized in frequency conversion speed regulation and accurate torque control of AC motors in industrial scenarios.
|
|
Rated Input Voltage
|
380-480 V AC, 3-Phase, 50/60 Hz ±10%
|
V AC
|
3-phase 380-480V AC input, compatible with 50/60Hz power frequency, ±10% wide voltage tolerance, adapting to different industrial power supply environments and voltage fluctuations.
|
|
Rated Input Current
|
94 A (Continuous); 282 A (Peak, 3 Seconds)
|
A
|
Continuous input current 94A, peak input current 282A (sustained for 3 seconds), matching the power supply needs of industrial motor systems and ensuring stable power input.
|
|
Rated Output Voltage
|
0-480 V AC, 3-Phase, Synchronous Frequency Conversion Output
|
V AC
|
Standard 3-phase 0-480V AC synchronous frequency conversion output, realizing stepless speed regulation of AC motors, ensuring stable operation and accurate control of motor speed and torque.
|
|
Rated Output Current
|
90 A (Continuous); 225 A (Peak, 3 Seconds)
|
A
|
Continuous output current 90A, peak output current 225A (sustained for 3 seconds), ensuring stable power transmission for motor operation and control, matching 45kW industrial motors.
|
|
Rated Power
|
45 kW
|
kW
|
Rated power 45kW, perfectly matching Yaskawa 45kW AC motors and other brand 45kW industrial motors, ensuring efficient and stable frequency conversion control and energy-saving operation.
|
|
Operating Frequency Range
|
0-400 Hz (Precision Control, Adjustable)
|
Hz
|
High-precision operating frequency range, 0Hz start, compatible with 50Hz and 60Hz power grids, matching the working demand of various industrial motors, realizing precise speed and torque control.
|
|
Frequency Control Precision
|
±0.01% (of Rated Frequency)
|
%
|
High frequency control precision, up to ±0.01% of rated frequency, ensuring stable motor speed and torque, reducing speed fluctuation and improving production efficiency.
|
|
Control Mode
|
Vector Control (Standard), V/F Control (Optional), Torque Control
|
-
|
Standard vector control, optional V/F control and torque control; fast dynamic response, torque adjustment time <10ms, realizing precise control of motor torque and speed.
|
|
RS-485, Modbus RTU (Standard); Profibus, Ethernet (Optional)
|
-
|
Standard RS-485 and Modbus RTU; optional Profibus and Ethernet interface, realizing seamless connection with Yaskawa industrial control systems and other industrial control networks.
|
|
|
Operating Temperature Range
|
0 ~ 45 °C (Operating); -25 ~ 75 °C (Storage)
|
°C
|
Built-in efficient heat dissipation fan and temperature protection device, adapting to normal industrial on-site temperature, ensuring stable operation without overheating even in long-term continuous work.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation
|
%
|
Strong humidity resistance, internal circuit components adopt anti-moisture coating design, effectively protecting the inverter from moisture damage in humid industrial environments.
|
|
Protection Level
|
IP21 (Enclosure); IP54 (Optional)
|
-
|
Standard IP21 protection, optional IP54 for harsh environments, preventing dust and water jets from entering, extending the service life of internal components.
|
|
Physical Dimensions (W×H×D)
|
300 × 580 × 260 (±1) mm (Standard Version)
|
mm
|
Compact structural design, saving installation space, easy to assemble and disassemble in industrial control cabinets, suitable for dense installation scenarios.
|
|
Weight
|
Approx. 18.0 ~ 19.0 kg (Standard Version)
|
kg
|
Sturdy and durable structure, easy to carry and transport during on-site maintenance and replacement, ensuring stable installation without additional load on control cabinets.
|
|
Protection Functions
|
Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Earth Fault, Motor Overload, Phase Loss Protection
|
-
|
Integrated multiple protection functions, quickly responding to abnormalities, protecting the inverter, motor and industrial control system from damage, ensuring production safety.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, IEC 61800-5-1, RoHS
|
-
|
Complies with international quality and safety standards, meeting global industrial project application requirements, safe, reliable and in line with environmental protection norms.
|
|
Warranty Period
|
1 Year (Original Yaskawa Factory Warranty)
|
Year
|
1-year original Yaskawa factory warranty, covering manufacturing defects and performance failures under normal use conditions; professional Yaskawa after-sales service team provides technical support.
|
|
Compatibility
|
45kW AC Motors, Yaskawa Industrial Control Equipment, General Industrial Loads
|
-
|
Perfectly compatible with 45kW AC motors of various brands, Yaskawa industrial control equipment, easy to integrate into existing control networks, reducing configuration difficulty.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
