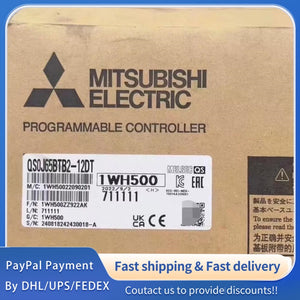

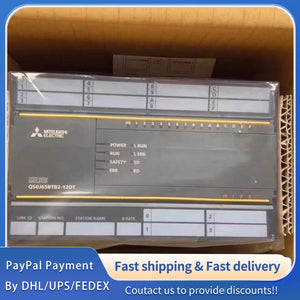

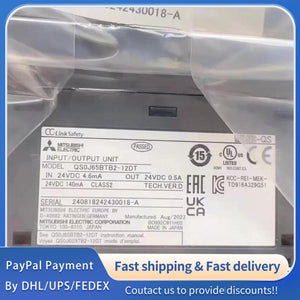

1 PCS new Mitsubishi QS0J65BTB2-12DT Remote I/O Module #LYQ007
1 PCS new Mitsubishi QS0J65BTB2-12DT Remote I/O Module #LYQ007
| Item | Specification |
|---|---|
| Model | QS0J65BTB2-12DTMITSUBISHI ELECTRIC |
| Series | MELSEC-QS CC-Link Safety Remote I/O ModuleMITSUBISHI ELECTRIC |
| Input Specifications | |
| Number of Input Points | 8 points (16 input terminals, dual redundancy)MITSUBISHI ELECTRIC |
| Rated Input Voltage | 24 VDCMITSUBISHI ELECTRIC |
| Operating Voltage Range | 19.2–28.8 VDC (ripple ≤ 5%)MITSUBISHI ELECTRIC |
| Rated Input Current | Approx. 4.6 mAMITSUBISHI ELECTRIC |
| ON Voltage / ON Current | ≥ 15 VDC / ≥ 2 mAMITSUBISHI ELECTRIC |
| OFF Voltage / OFF Current | ≤ 5 VDC / ≤ 0.5 mAMITSUBISHI ELECTRIC |
| Input Type | Negative common (source type)MITSUBISHI ELECTRIC |
| Input Response Time | OFF→ON: ≤ 0.4 ms; ON→OFF: ≤ 0.4 ms (24 VDC)MITSUBISHI ELECTRIC |
| Safety Input Response Time | ≤ 32 ms + filter time (1/5/10/20/50 ms)MITSUBISHI ELECTRIC |
| Input Isolation | Photoelectric coupling |
| Output Specifications | |
| Number of Output Points | 4 points (source + sink) or 2 points (source + source)MITSUBISHI ELECTRIC |
| Rated Load Voltage | 24 VDCMITSUBISHI ELECTRIC |
| Operating Load Voltage | 19.2–28.8 VDC (ripple ≤ 5%)MITSUBISHI ELECTRIC |
| Max. Load Current | 0.5 A / pointMITSUBISHI ELECTRIC |
| Leakage Current (OFF) | ≤ 0.5 mAMITSUBISHI ELECTRIC |
| Voltage Drop (ON) | ≤ 1.0 VDCMITSUBISHI ELECTRIC |
| Output Type | Transistor (source + sink / source + source)MITSUBISHI ELECTRIC |
| Output Response Time | OFF→ON: ≤ 0.4 ms; ON→OFF: ≤ 0.4 ms (24 VDC)MITSUBISHI ELECTRIC |
| Safety Output Response Time | ≤ 32 msMITSUBISHI ELECTRIC |
| Output Isolation | Photoelectric coupling |
| General Specifications | |
| External Power Supply | 19.2–28.8 VDC; Current: 60 mA (all ON, excl. load)MITSUBISHI ELECTRIC |
| Module Power (Total) | ≤ 140 mA (24 VDC, all ON)MITSUBISHI ELECTRIC |
| Momentary Power Failure | ≤ 10 msMITSUBISHI ELECTRIC |
| Occupied Stations | 1 stationMITSUBISHI ELECTRIC |
| Safety Refresh Time | ≤ 38 msMITSUBISHI ELECTRIC |
| Common Current | Max. 4 A (input + output total)MITSUBISHI ELECTRIC |
| Protection Degree | IP2XMITSUBISHI ELECTRIC |
| Connection | Screw terminal (2‑piece type)MITSUBISHI ELECTRIC |
| Weight | 0.67 kgMITSUBISHI ELECTRIC |
| Dimensions (W×H×D) | 197 × 65 × 74.5 mmMITSUBISHI ELECTRIC |
| Conformance | UL, cUL, CE (EMC/Machinery/RoHS), IEC 61508, IEC 62061, EN ISO 13849‑1, KCMITSUBISHI ELECTRIC |
| Mounting | DIN rail (TH35‑7.5Fe/Al)MITSUBISHI ELECTRIC |
| Operating Temp | 0–55 °C |
| Storage Temp | −40–75 °C |
| Humidity | 5–95% RH (non‑condensing) |
| Vibration/Shock | Compliant with JIS B 3502, IEC 61131‑2MITSUBISHI ELECTRIC |
