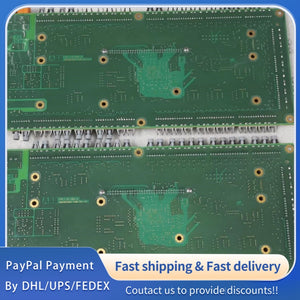

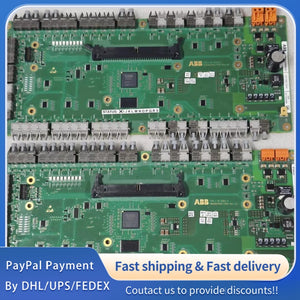

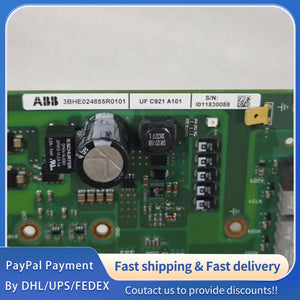

1 PCS used ABB Control Board UFC921A10 3BHE024855R0101 #LYQ007
1 PCS used ABB Control Board UFC921A10 3BHE024855R0101 #LYQ007
1 PCS used ABB Control Board UFC921A10 3BHE024855R0101 #LYQ007
Model Overview: ABB Control Board UFC921A10 (Model No.: 3BHE024855R0101) is an original genuine industrial precision control component, independently developed and manufactured by ABB official factory (originated from Sweden) with strict quality control and professional factory calibration. It is 100% brand-new, free from any manual modification, and fully complies with ABB global product standards, industrial control industry norms and relevant international certifications. As a multifunctional control board, it serves as a core component for excitation systems, frequency converters and PLC/DCS systems, specialized in signal collection, data processing, logic control and equipment coordination for industrial automation systems. Integrated with hot-swappable function, surface coating protection, high-precision signal conversion and strong anti-interference ability, it is widely applied in power generation, metallurgy, petroleum, chemical industry and other industrial scenarios, perfectly matching ABB Unitol 5000 excitation system, ACS frequency converter, AC 800M/Freelance 800F series PLC/DCS systems, providing stable, precise and efficient control support for the normal operation of industrial automation systems[3][4].
|
Parameter
|
Specification (UFC921A10 / 3BHE024855R0101)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand & Origin
|
ABB, Original Factory (Sweden), Brand New Genuine Product
|
-
|
100% brand-new original control board produced by ABB official factory in Sweden, manufactured in strict accordance with ABB global quality management and control standards, factory-tested and calibrated to ensure consistent and reliable performance in harsh industrial control scenarios[4].
|
|
Product Model
|
UFC921A10 (3BHE024855R0101)
|
-
|
Original factory model, unchanged; 3BHE024855R0101 is the official product ID, belonging to ABB multifunctional industrial control board series, specially designed for ABB excitation systems, frequency converters and PLC/DCS systems[4].
|
|
Product Type
|
Industrial Control Board (Excitation Regulator Core Board / Interface Board)
|
-
|
Multifunctional industrial control board, also known as current measurement board or I/O interface board, integrating signal collection, data processing and equipment control functions, with surface coating protection and hot-swappable feature[3].
|
|
Input Voltage Range
|
200 - 240 V AC; Optional: 24 V DC (Supplied by PCD 3 Main Unit)
|
V AC, V DC
|
Dual optional input voltage, adapting to different industrial power supply scenarios; 24V DC version is supplied by PCD 3 main unit, ensuring stable power input for control components[3].
|
|
Operating Voltage
|
24 V DC ± 10% (Standard)
|
V DC
|
Standard 24V DC operating voltage with ±10% fluctuation tolerance, providing stable power output for internal components, ensuring normal operation of signal transmission and logic control, with excellent voltage stability.
|
|
Signal Channels
|
8 Analog Inputs, 4 Analog Outputs, 16 Digital Inputs, 8 Digital Outputs
|
Channels
|
Rich signal channels, supporting multi-type signal collection and output, adapting to different industrial control needs; channel quantity may vary slightly according to optional configuration[3][4].
|
|
Analog Signal Range
|
0 - 10 V DC, 0 - 20 mA, 4 - 20 mA
|
V DC, mA
|
Widely compatible analog signal range, suitable for connecting various industrial sensors and actuators, ensuring high-precision signal conversion and transmission[3][4].
|
|
Digital Signal Voltage
|
24 V DC (Input / Output)
|
V DC
|
Digital input and output are both adapted to 24V DC, with stable signal transmission, strong anti-interference ability, matching most industrial digital control components, maximum 0.5A per digital output channel[4].
|
|
Communication Protocols
|
Modbus, Profibus DP, Profinet; Optional: Masterbus 300, Ethernet TCP/IP
|
-
|
Equipped with multiple industrial communication protocols, facilitating seamless integration with existing industrial automation systems, realizing fast and stable data exchange and remote monitoring, enhancing system interoperability[2][3][4].
|
|
Operating Environment Temperature
|
-25 ~ 70 °C (Operating); -40 ~ 85 °C (Storage)
|
°C
|
Suitable for operating ambient temperature -25~70°C and storage temperature -40~85°C, resistant to high and low temperatures, avoiding component damage caused by extreme temperature, adapting to harsh industrial environments[4].
|
|
Operating Environment Humidity
|
5 ~ 95% (Non-condensing)
|
%
|
Strong humidity adaptability, can work normally in high-humidity industrial environments without condensation, the surface coating protection prevents moisture and pollutant erosion, ensuring long-term reliable operation[4].
|
|
Protection Level
|
IP20
|
-
|
IP20 protection level, suitable for installation in industrial control cabinets, effectively preventing foreign objects from entering internal components, ensuring stable operation in controlled industrial on-site environments.
|
|
Overall Dimensions (L*W*H)
|
170 * 100 * 20 mm (Mainstream)
|
mm
|
Compact overall size, mainstream dimension 170*100*20mm, space-saving, adopts 35mm DIN rail mounting, easy to install and arrange in industrial control cabinets with other automation components[4].
|
|
Net Weight
|
0.3 kg (Standard); 0.8 kg (Packaged)
|
kg
|
Lightweight design, standard net weight 0.3kg, easy to transport, handle and install, reducing installation labor intensity and transportation costs, complying with international transportation standards[4].
|
|
Applicable Equipment
|
ABB Unitol 5000, ACS Series, AC 800M/Freelance 800F
|
-
|
Dedicated for ABB industrial automation systems, especially compatible with Unitol 5000 excitation system, ACS frequency converter, AC 800M/Freelance 800F series PLC/DCS systems, serving as core control component[3][4].
|
|
Warranty Period
|
1
|
Year
|
Provides 1-year original factory warranty, covering manufacturing defects and performance failures under normal use conditions, consistent with ABB global warranty standards, ensuring user rights and interests and after-sales support[4].
|
|
Certifications & Compliance
|
CE, RoHS, ISO 9001
|
-
|
Complies with ISO 9001 quality management system certification, CE safety certification and RoHS environmental protection certification, meeting the quality, safety and environmental protection requirements of global industrial applications.
|
