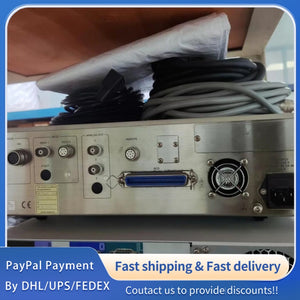

1 PCS used ONO SOKKI TS-3200 Digital Torque Meter #LYQ007

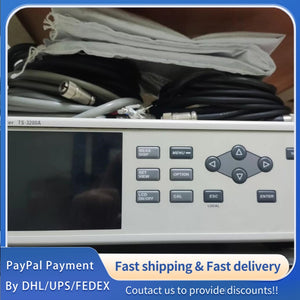

1 PCS used ONO SOKKI TS-3200 Digital Torque Meter #LYQ007
| Item | Specification |
|---|---|
| Model | TS-3200 (Discontinued; replaced by TS-3200A) |
| Torque Measurement Section | |
| Input Signal | Phase-differential type torque detector output |
| Connector | TRC116-12A10-7M10.5 or CO2 (BNC) × 2 (not simultaneous) |
| Capacity | ±1 to 9999 |
| Factor | 1 to 65535 |
| Unit | mNm, Nm, kNm |
| Zero Compensation | 1 point each for CW & CCW; manual/automatic |
| N-0 Compensation | 10 points each for CW & CCW; manual/automatic |
| Rotational Direction | CW, CCW, EXT |
| Response Time Constant | 16ms, 31ms, 63ms, 125ms, 250ms, 500ms, 1s, 2s, 4s, 8s, 16s, 32s, 64s |
| Display Digits | Polarity + 4-digit or 5-digit (selectable) |
| Display Update | 1s to 10s (1s step) or external trigger |
| Accuracy (1s gate) | With N-0 compensation: ±0.2 %/F.S. ±1 count (4-digit)
|
| Revolution Measurement Section | |
| REVO1 (Sine Wave) | Input Impedance: ≥10 kΩ; Frequency: 10 Hz–100 kHz; Amplitude: 0.2–45 Vrms; Connector: BNC |
| REVO2 (Square Wave) | Input Impedance: ≥10 kΩ; Frequency: 1 Hz–200 kHz; Amplitude: +4 to +30 V (Hi), ≤+0.6 V (Lo); Pulse width ≥2 μs; Power: 12 VDC, 100 mA; Connector: BNC |
| Unit | r/min, r/s, Hz |
| Pulse per Revolution | 1 to 99999 P/R |
| Display Digits | 5-digit |
| Accuracy (1s gate) | ±0.05 %/F.S. ±1 count |
| Power Calculation Section | |
| Formula | Output power (W) = Torque (Nm) × Revolution (r/min) × 2π/60
|
| Unit | mW, W, kW, PS |
| Display Digits | Polarity + 5-digit |
| Accuracy | Torque accuracy + Revolution accuracy |
| Analog Output | |
| Voltage | 0 to ±10 V/F.S. (2 channels standard)
|
| Response | 16ms–64s (time constant selectable) |
| Temperature Drift | ±0.01 %/F.S./°C |
| Interface (Optional) | |
| RS-232C (TS-0325) | EIA/JIS X5101; Baud: 1200/2400/4800/9600/19200 bps; D-sub 9-pin female |
| GP-IB (TS-0326) | IEEE488-1978 |
| BCD Output (TS-0323) | 2 channels; open-collector; 50-pin connector |
| Comparator Output (TS-0322) | 2 channels; Photo-MOS relay |
| General | |
| Power Supply | AC100–240 V ±10%, 50/60 Hz |
| Power Consumption | 35 VA max. |
| Insulation Resistance | ≥10 MΩ (DC500 V) |
| Withstand Voltage | AC1500 V for 1 min. |
| Operating Temp. | 0 to +40 °C |
| Storage Temp. | -10 to +55 °C |
| Dimensions | Approx. 376 (W) × 114 (H) × 317.2 (D) mm |
| Weight | Approx. 5 kg |
| Display | 320×240 dot LCD; backlight ON/OFF; up to 7 items display |
