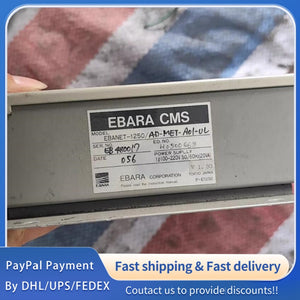

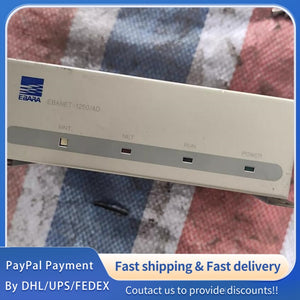

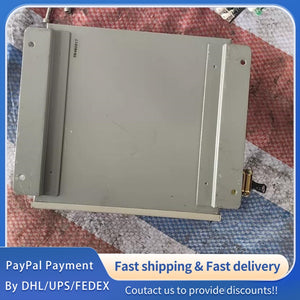

1 PCS used EBARA EBANET-1250/AD-MET-A01-UL Communication Module #LYQ007
1 PCS used EBARA EBANET-1250/AD-MET-A01-UL Communication Module #LYQ007
| Parameter Category | Parameter Name | EBANET-1250/AD-MET-A01-UL Specification |
|---|---|---|
| Basic Information | Product Model | EBANET-1250/AD-MET-A01-UL |
| Manufacturer | EBARA Corporation | |
| Product Type | CMS Communication Module | |
| Application | Industrial communication, data acquisition, equipment monitoring, control system integration | |
| Compliance | UL certified, meets industrial communication standards | |
| Communication Parameters | Communication Protocol | EBANET proprietary protocol, compatible with Modbus RTU/TCP |
| Communication Interface | RS-485, Ethernet (10/100Base-T) | |
| Baud Rate | 1200–115200 bps (adjustable) | |
| Data Transmission Rate | Up to 100 Mbps (Ethernet) | |
| Node Capacity | Supports up to 32 slave devices | |
| Transmission Distance | RS-485: ≤1200m; Ethernet: ≤100m (standard cable) | |
| Electrical Parameters | Rated Operating Voltage | DC 24V ±10% |
| Operating Current | ≤200mA (typical) | |
| Power Consumption | ≤4.8W | |
| Insulation Resistance | ≥100MΩ (500V DC) | |
| Withstand Voltage | AC 1500V (1min, between power and ground) | |
| EMC Performance | Complies with IEC 61000-4 standards | |
| Mechanical Parameters | Dimensions (L×W×H) | 125mm × 80mm × 40mm |
| Weight | ≤0.3kg | |
| Housing Material | Flame-retardant ABS+PC | |
| Mounting Type | DIN rail mounting | |
| Terminal Type | Screw terminal, compatible with 0.5–2.5mm² wires | |
| Environmental Parameters | Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C | |
| Operating Humidity | 5%–95% RH (non-condensing) | |
| Protection Level | IP20 | |
| Vibration Resistance | 10–500Hz, 2g amplitude | |
| Shock Resistance | 100m/s² (10g), 11ms | |
| Functional Parameters | Data Acquisition | Analog/digital signal conversion, real-time data transmission |
| Fault Diagnosis | Built-in self-diagnosis, fault alarm output | |
| LED Indication | Power (red), communication (green), fault (yellow) | |
| Service Life | ≥50,000 operating hours |
