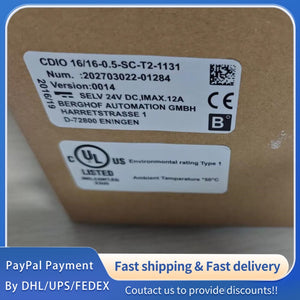

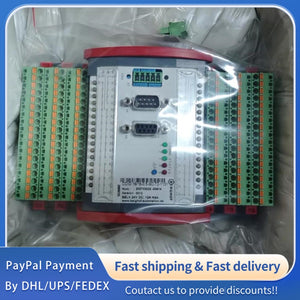

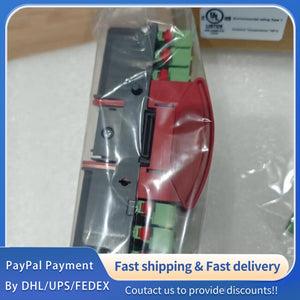

1 PCS NEW Berghof Controller CDIO 16/16-0.5-SC-T2-1131 #LYQ007
1 PCS NEW Berghof Controller CDIO 16/16-0.5-SC-T2-1131 #LYQ007
| Parameter Category | Parameter Name | CDIO 16/16-0.5-SC-T2-1131 Specification |
|---|---|---|
| Basic Information | Product Model | CDIO 16/16-0.5-SC-T2-1131 |
| Manufacturer | Berghof (Germany) | |
| Product Type | Digital I/O Controller Module | |
| I/O Configuration | 16× Digital Input + 16× Digital Output | |
| Order Number | 202703022-01085 | |
| Version | V:0004 | |
| Core I/O Parameters | Input Type | PNP, 24V DC |
| Input Voltage | 24V DC ±10% | |
| Input Current | ≤ 5mA per channel | |
| Input Isolation | 1.5kV AC (Input/Output) | |
| Output Type | PNP, Solid-State Output | |
| Output Current | 0.5A per channel (Max) | |
| Output Voltage | 24V DC | |
| Response Time | ≤ 100μs | |
| Electrical Parameters | Supply Voltage | 24V DC SELV, 12A Max |
| Power Consumption | ≤ 15W (Typical) | |
| Insulation Resistance | ≥ 1000MΩ (500V DC) | |
| Withstand Voltage | 1kV AC (1min, Live Parts to Ground) | |
| Mechanical Parameters | Dimensions | Standard DIN Rail Mount |
| Weight | Approx. 800g | |
| Mounting | DIN Rail (35mm) | |
| Housing Material | Flame-Retardant Engineering Plastic | |
| Environmental Parameters | Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C | |
| Operating Humidity | 0%–95% RH (Non‑condensing) | |
| Protection Level | IP20 (Front) | |
| Vibration Resistance | 10–500Hz, 3g | |
| Shock Resistance | 100m/s² (10g), 11ms | |
| Diagnostic & Features | Self‑Diagnosis | Open/Short‑Circuit Detection (ms‑level) |
| Status Indication | Tri‑Color LED (Green/Yellow/Red) | |
| Hot‑Swap Support | Yes (Seamless Signal Switching) | |
| MTTR | < 5 minutes | |
| Certifications | Compliance | IEC 60947‑5‑2, EN 60947‑5‑2, UL 508 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
