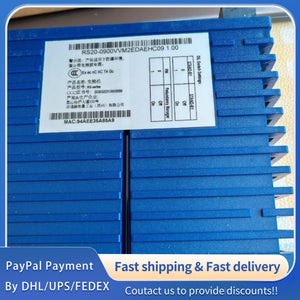

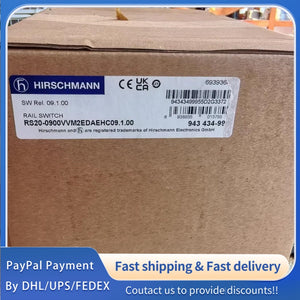

1 PCS new Hirschmann RS20-0900VVM2EDHEHH09.1.00 Rail Switch #LYQ007
1 PCS new Hirschmann RS20-0900VVM2EDHEHH09.1.00 Rail Switch #LYQ007
1 PCS new Hirschmann RS20-0900VVM2EDHEHH09.1.00 Rail Switch #LYQ007
Product Overview: Hirschmann RS20-0900VVM2EDHEHH09.1.00 Rail Switch is a high-performance industrial-grade rail-mounted Ethernet switch, independently developed and manufactured by Hirschmann Automation and Control (Germany), a global leader in industrial communication solutions. It is a 100% brand-new genuine product, strictly compliant with Hirschmann global quality management standards and international industrial communication specifications. The product undergoes full-process factory precision testing, high-temperature aging verification, anti-interference performance detection and vibration resistance testing, without any manual modification or secondary processing. It features stable operation, strong anti-interference ability, high compatibility and long service life, specially designed for industrial field communication scenarios, providing reliable Ethernet switching and data transmission support for industrial automation systems, railway communication, intelligent manufacturing and other harsh industrial environments.
|
Parameter
|
Specification (Hirschmann RS20-0900VVM2EDHEHH09.1.00)
|
Unit
|
Hirschmann Factory Notes (Original Description)
|
|
Brand & Origin
|
Hirschmann Automation and Control, Germany, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original product manufactured by Hirschmann official factory in Germany, in line with Hirschmann global quality system standards.
|
|
Product Model & Part No.
|
Model: Rail Switch; Model No.: RS20-0900VVM2EDHEHH; Version: 9.1.00; Standard Part No.: RS20-0900VVM2EDHEHH09.1.00
|
-
|
Original factory model, part number and version number unchanged; Standard design for easy replacement, maintenance and system expansion.
|
|
Product Type
|
Industrial Grade Rail-mounted Ethernet Switch, RS20 Series, Managed Switch, High Anti-interference
|
-
|
Designed for harsh industrial environments, integrating Ethernet switching, data forwarding and network management functions, suitable for various industrial communication scenarios.
|
|
Working Voltage
|
DC 24V ±20%, Allowable Voltage Fluctuation: ±25%; No-load Current: ≤0.3A; Rated Current: ≤1.2A
|
V DC, A
|
Stable voltage supply design, strong anti-fluctuation ability, adapting to complex industrial on-site power supply environment; Low power consumption.
|
|
Operating Temperature Range
|
-40 ~ 70°C (Operating); -40 ~ 85°C (Storage); No Frost Damage, No Condensation
|
°C
|
High and low temperature resistance, built-in efficient heat dissipation structure, adapting to extreme industrial temperature environments; No performance degradation in harsh conditions.
|
|
Operating Humidity Range
|
5% ~ 95% RH (Non-condensing), No Dew Formation, No Corrosion
|
RH
|
Strong humidity adaptability, resistant to moisture and corrosion, suitable for high-humidity and harsh industrial environments without performance failure.
|
|
Port Configuration
|
Fast Ethernet Ports: 8 Ports (10/100Mbps, RJ45); SFP Slots: 2 Ports (Optional, for Fiber Optic Module); Auto-negotiation, Auto MDI/MDI-X
|
Ports, Mbps
|
Support auto-negotiation of speed and duplex mode, auto-crossover function, compatible with various Ethernet devices; SFP slots support flexible expansion of fiber optic communication.
|
|
Data Transmission Rate
|
10Mbps: 10Base-T; 100Mbps: 100Base-TX/FX; Forwarding Rate: ≥1.488 Mpps (Wire-speed Forwarding)
|
Mbps, Mpps
|
Wire-speed forwarding, low latency, ensuring fast and stable data transmission, meeting the real-time requirements of industrial communication.
|
|
Network Management Function
|
Web-based Management, SNMP v1/v2c/v3, CLI (Command Line Interface), Telnet/SSH, RMON, LLDP, VLAN, QoS, Spanning Tree Protocol (STP/RSTP/MSTP)
|
-
|
Rich network management functions, supporting remote configuration, monitoring and maintenance, easy to manage industrial network systems, improving network reliability.
|
|
Anti-interference Performance
|
Meets IEC 61000-4 Standard, Anti-EMI, Anti-RFI, Anti-surge (±2kV), Anti-static (±25kV), ESD Protection
|
-
|
Metal shielding case design, excellent anti-interference ability, effectively resisting electromagnetic interference in industrial environments, ensuring stable operation.
|
|
Protection Functions
|
Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Anti-reverse Connection, ESD Protection
|
-
|
Comprehensive protection design, quick response to abnormalities, protecting the switch and connected network devices from damage; Ensuring safe operation of the entire network.
|
|
Mechanical Dimensions
|
120mm × 150mm × 35mm (Length × Width × Height), Installation Type: DIN Rail Mount (35mm), Installation Hole Spacing: 100mm × 80mm
|
mm
|
Standard DIN rail mount size, compact structure, easy to install and fix on industrial control cabinets; Saving installation space.
|
|
Weight
|
≤400g (Net Weight), ≤600g (Gross Weight with Packaging)
|
g
|
Light weight, easy to transport and install; High-strength metal case, strong impact resistance and durability.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, RoHS, IEC 61131-2, EN 55011, EN 55022
|
-
|
Complies with international quality, safety and environmental protection standards, applicable to global industrial automation and communication projects.
|
|
Warranty Period
|
2 Years (Original Hirschmann Factory Warranty, Covering Manufacturing Defects)
|
Year
|
Professional after-sales support provided by Hirschmann, global after-sales network, ensuring timely maintenance and problem solving.
|
|
Operating Life
|
≥70,000 Hours (Continuous Operation Under Rated Conditions)
|
Hours
|
High-quality industrial components and strict production process, ensuring long-term stable operation, reducing maintenance cost and network downtime.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
