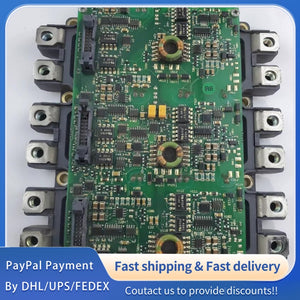

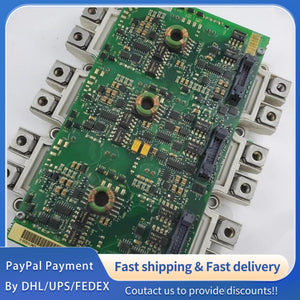

1 PCS used ABB ACS800 IGBT Module 6MBI450U-120A-05 with GDOR-71C Driver #LYQ007
1 PCS used ABB ACS800 IGBT Module 6MBI450U-120A-05 with GDOR-71C Driver #LYQ007
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Part Number | 6MBI450U-120A-05 | — | IGBT Module |

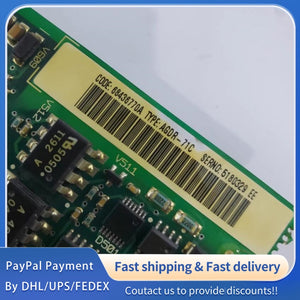

| Driver Board | GDOR-71C (AGDR-71C) | — | ABB ACS800 Drive |
| Collector-Emitter Voltage (VCE) | 1200 | V | Absolute Maximum Rating |
| Continuous Collector Current (IC) @ Tc=25°C | 450 | A | Rated Current |
| Peak Pulse Collector Current (ICM) | 900 | A | 10ms Pulse |
| Gate-Emitter Voltage (VGE) | ±20 | V | Absolute Maximum |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.1 (typ.) / 2.7 (max.) | V | @ IC=450A, VGE=15V |
| Input Capacitance (Cies) | 7.5 | nF | Typical |
| Turn-On Delay Time (td(on)) | 0.47 | μs | Typical |
| Turn-Off Delay Time (td(off)) | 0.15 | μs | Typical |
| Junction Temperature (Tj) | -40 ~ +125 | °C | Operating Range |
| Package Type | ECONO+ | — | 6-in-1 Module |
| Mounting | Screw Mount | — | |
| Application | Industrial Drives, Inverters, UPS | — | ABB ACS800 Series |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
