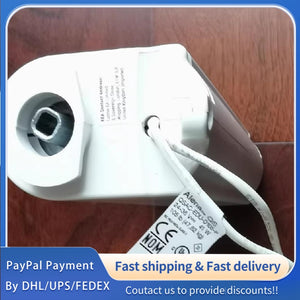

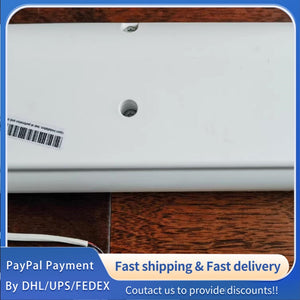

1 PCS used LUTRON Electric Curtain Driver QSAC-EDU-D105-P#LYQ007
1 PCS used LUTRON Electric Curtain Driver QSAC-EDU-D105-P#LYQ007
1 PCS used LUTRON Electric Curtain Driver QSAC-EDU-D105-P#LYQ007
Original Factory Precision Parameters (Model: LUTRON Electric Curtain Driver QSAC-EDU-D105-P)
|
Parameter Category
|
Parameter Name
|
QSAC-EDU-D105-P Specification
|
|
Basic Information
|
Product Model
|
QSAC-EDU-D105-P; LUTRON Genuine Original Electric Curtain Driver, 100% unused and unrefurbished genuine parts; Belongs to LUTRON QSAC series, specialized for intelligent electric curtain control scenarios.
|
|
Manufacturer Standard
|
Manufactured by LUTRON Electronics Co., Ltd.; Complies with CE, FCC, UL, ISO 9001, RoHS Standards; Conforms to LUTRON Internal Technical and Quality Norms for Electric Curtain Drivers.
|
|
|
Product Application
|
Intelligent Electric Curtain Control; Widely used in Commercial Buildings (Offices, Hotels, Shopping Malls), Residential Buildings (Apartments, Villas), Hospitals, Schools, High-End Clubs and other scenarios, realizing automatic opening and closing, speed adjustment and intelligent linkage of curtains.
|
|
|
Drive Performance Parameters
|
Drive Type
|
DC Brushless Motor Driver; Stepless Speed Regulation; Quiet Operation Design, adopting advanced brushless motor technology to ensure stable operation, low noise and long service life.
|
|
Rated Power
|
105 W (Rated); 150 W (Peak, 10s); Stable power output, sufficient driving force to adapt to different weights and sizes of curtains.
|
|
|
Speed Control Range
|
5 ~ 20 cm/s; Stepless Speed Regulation, adjustable according to user needs, realizing gentle and smooth opening and closing of curtains without jitter.
|
|
|
Control Precision
|
Position Control Precision: ±1 mm; Speed Control Precision: ±0.5 cm/s; High control precision, ensuring accurate positioning of curtains and consistent speed during operation.
|
|
|
Maximum Curtain Weight
|
50 kg; Strong load-bearing capacity, suitable for heavy curtains, thick curtains and large-area curtains in commercial and residential scenarios.
|
|
|
Maximum Curtain Width
|
8 m (Single Track); 16 m (Dual Track, Synchronous Control); Wide adaptation range, meeting the needs of different space sizes.
|
|
|
Operation Noise
|
≤ 35 dB (Normal Operation); Ultra-quiet design, no noise interference, suitable for quiet environments such as bedrooms, offices and hospitals.
|
|
|
Control & Communication Parameters
|
Control Mode
|
Supports Wireless Control (RF 433 MHz), Wired Control (Dry Contact), Intelligent Linkage (LUTRON HomeWorks System); Multiple control modes, flexible and convenient to use.
|
|
Communication Protocol
|
Supports LUTRON Clear Connect RF Protocol, Modbus RTU Protocol; Bidirectional data transmission, convenient for intelligent system integration and remote control.
|
|
|
Wireless Control Distance
|
≤ 30 m (Indoor, No Obstacle); ≤ 15 m (Indoor, With Obstacle); Stable wireless signal, ensuring reliable control without signal loss.
|
|
|
Linkage Function
|
Supports Light Sensor, Temperature Sensor, Timer Linkage; Automatically adjusts curtain opening and closing according to environmental changes and preset time, realizing intelligent management.
|
|
|
Remote Control
|
Supports LUTRON Universal Remote Control, Mobile APP Control (iOS/Android); Remote operation, convenient for users to control curtains anytime and anywhere.
|
|
|
Memory Function
|
Built-in 10 Groups of Position Memory; Supports Preset Opening and Closing Positions, one-key control to the preset position, meeting different usage needs.
|
|
|
Power Input Parameters
|
Power Input Voltage
|
AC 100 ~ 240 V ±10%; 50/60 Hz (Auto-Adaptation); Wide voltage input range, compatible with global power supply standards, flexible to use in different regions.
|
|
Power Consumption
|
≤ 0.5 W (Standby); ≤ 105 W (Normal Operation); Ultra-low standby power consumption, energy-saving and environment-friendly, reducing long-term use costs.
|
|
|
Power Protection
|
Over-Voltage Protection, Under-Voltage Protection, Over-Current Protection, Short-Circuit Protection; Comprehensive power protection, preventing damage to internal components caused by power supply abnormalities.
|
|
|
Power Supply Ripple
|
≤ 50 mVpp; Strong anti-ripple ability, ensuring stable operation of the driver under unstable power supply conditions.
|
|
|
Startup Time
|
≤ 300 ms; Fast startup speed, realizing rapid response of curtains after receiving control signals, improving user experience.
|
|
|
Power Cord Length
|
2 m (Standard); High-temperature resistant, flame-retardant power cord, safe and reliable, suitable for indoor wiring.
|
|
|
Structural & Environmental Parameters
|
Installation Type
|
Ceiling Mounting / Wall Mounting (Switchable); Equipped with Standard Mounting Accessories; Easy to Install and Disassemble, compatible with different installation environments.
|
|
Dimensions (L×W×H)
|
280 × 80 × 50 mm (±0.1 mm); Compact structural design, small installation space, easy to hide, not affecting the overall decoration style.
|
|
|
Structure Material
|
Housing: High-Strength ABS Plastic (Flame-Retardant, Anti-Impact); Internal Components: Copper Alloy + High-Precision Integrated Circuits; Safe, durable and corrosion-resistant.
|
|
|
Operating Temperature
|
-10℃ ~ 60℃; Wide operating temperature range, adapting to different indoor temperature environments, ensuring stable operation.
|
|
|
Storage Temperature
|
-20℃ ~ 80℃; Relative Humidity: 10% ~ 90% (Non-Condensing); Adapting to harsh storage and transportation environments, no performance degradation.
|
|
|
Protection Level
|
IP54; Dustproof, Waterproof Splashing, suitable for indoor use, preventing dust and water splashing from damaging internal components.
|
|
|
Net Weight
|
2.8 kg (Net Weight, Without Accessories); Lightweight design, easy to transport and install, reducing installation labor intensity.
|
|
|
Protection & Other Parameters
|
Anti-Interference Performance
|
EMI/EMS: Complies with EN 55011, EN 55022; Strong anti-electromagnetic interference ability, adapting to complex indoor electromagnetic environments (such as WiFi, Bluetooth signals).
|
|
Obstacle Detection
|
Built-in Obstacle Detection Sensor; Automatic Stop when encountering obstacles (Sensitivity: 5 N); Prevent damage to curtains, driver and objects, ensuring safety.
|
|
|
Shock Resistance
|
10 g (11 ms); Strong shock resistance, preventing damage caused by accidental collision during transportation and installation.
|
|
|
Fault Alarm Function
|
Built-in fault self-diagnosis and alarm function; Fault types: Overload, Under-Voltage, Communication Fault, Obstacle Jam; Supports fault signal output, facilitating quick maintenance.
|
|
|
Service Life
|
≥ 50000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency and use cost.
|
|
|
Warranty Period
|
24 Months (Genuine Original Product Warranty); Supports LUTRON Official After-Sales Service, ensuring reliable after-sales support and technical guidance.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
