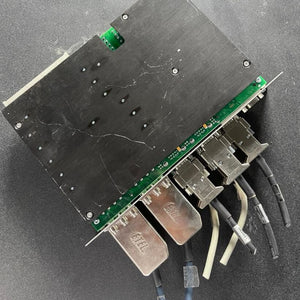

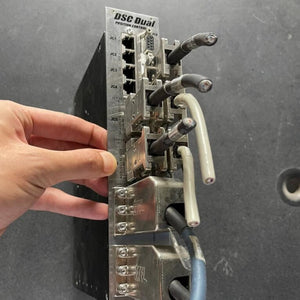

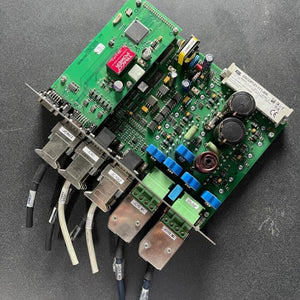

1 PCS used ETEL DSCDP121-111-000 Dual-Axis Controller Board#LYQ007
1 PCS used ETEL DSCDP121-111-000 Dual-Axis Controller Board#LYQ007
| Parameter | Value |
|---|---|
| Part Number | DSCDP121-111-000 |
| Product Type | Dual-axis digital position controller board (DSC Series) |
| Form Factor | 6U rack-mount, 10F width |
| Control Channels | 2 servo axes |
| Control Processor | 32-bit floating-point DSP (Dual SHARC) |
| Sampling Times | - Motion loop: 500 µs
|
| Motion Profiles | Trapezoidal, S-curve, sine, lookup table, interpolated |
| Power Supply (Main) | 120–340 VDC (external supply, e.g., DSO-PWS) |
| Auxiliary Supply | 24 VDC, max 1 A |
| Output Current (per axis) | - Full load: 5 A<sub>RMS</sub>
|
| PWM Frequency | 18 kHz / current ripple 36 kHz |
| Communication | Turbo-ETEL-Bus, ETEL-Bus-Lite2 serial |
| Encoder Interfaces | Resolver, incremental & absolute encoders (JC5/JC6) |
| I/O Connectors | Digital I/O (JC9/JC10) |
| Motor Connectors | JC7 (Axis 1), JC11 (Axis 2) |
| Operating Temp | 0–45 °C (derate above 30 °C) |
| Protection | IP20 (housing), pollution degree 2 |
