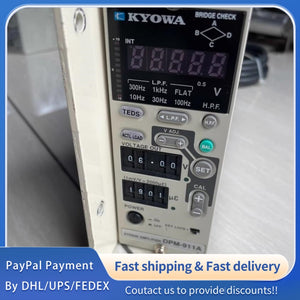

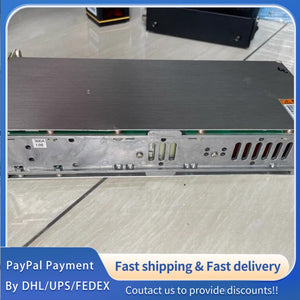

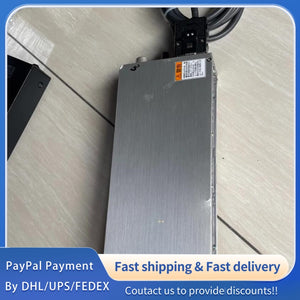

1 PCS used KYOWA DPM-911A Strain Amplifier #LYQ007
1 PCS used KYOWA DPM-911A Strain Amplifier #LYQ007
| Parameter Category | Parameter Name | DPM-911A Specification |
|---|---|---|
| Basic Specifications | Measuring Target | Strain gages, Strain‑gage transducers |
| Number of Channels | 1 channel per unit | |
| Applicable Bridge Resistance | 60 Ω to 1000 Ω | |
| Gage Factor | 2.00 (fixed) | |
| Bridge Excitation Voltage | 2 Vrms / 0.5 Vrms (selectable) | |
| Carrier Frequency | 5 kHz | |
| Detection & Response | Frequency Response | DC to 2.5 kHz (±10% tolerance) |
| Response Time | ≤ 100 μs (typical) | |
| Nonlinearity | Within ±0.1% FS | |
| Output Impedance | Approx. 2 Ω | |
| Balancing & Calibration | Resistance Balance Range | ±2% (±10000 ×10⁻⁶ strain) max |
| Capacitance Balance Range | Within 2000 pF (at 120 Ω bridge) | |
| Balance Method | Resistance: Electronic auto‑balance; Capacitance: CST auto‑tracking | |
| Calibration Signal (CAL) | ±(1 to 9999 ×10⁻⁶ strain); 4‑digit digital switch | |
| CAL Accuracy | Within ±(0.5% + 0.5 ×10⁻⁶ strain) | |
| Sensitivity & Gain | Sensitivity Adjustment | ×200 to ×50000 (main) + ×0.4 to ×1.0 (fine) |
| Voltage Output | ±10 V (load ≥ 5 kΩ) | |
| Electrical Characteristics | Power Supply | 90–110 VAC (12 VA) / 10.5–15 VDC (0.6 A) |
| Insulation Resistance | ≥ 100 MΩ (500 VDC) | |
| Withstand Voltage | 1000 VAC for 1 min (bridge‑to‑case, power‑to‑case) | |
| SN Ratio | ≥ 54 dBp‑p (5 V output @ 200 ×10⁻⁶ strain input) | |
| Stability | Zero Drift (Temperature) | ±0.1 ×10⁻⁶ strain/°C |
| Sensitivity Drift (Temperature) | ±0.05%/°C | |
| Zero Drift (Time) | ±0.5 ×10⁻⁶ strain/24 h | |
| Sensitivity Drift (Time) | ±0.2%/24 h | |
| Mechanical Data | Dimensions (W×H×D) | 49 × 128.5 × 262.5 mm (excl. protrusions) |
| Panel Cutout | 50 × 113 mm | |
| Weight | Approx. 1.2 kg | |
| Environmental Ratings | Operating Temp | -10°C to +50°C |
| Storage Temp | -30°C to +70°C | |
| Operating Humidity | 0–95% RH (non‑condensing) | |
| Vibration Resistance | 10–500 Hz, 3G amplitude | |
| Shock Resistance | 100 m/s² (10G), 11 ms | |
| Protection | IP20 (panel‑mounted) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
