1 PCS new KFM Controller 92802e-99axe-bwa-f-ogxw #LYQ007
1 PCS new KFM Controller 92802e-99axe-bwa-f-ogxw #LYQ007
| Parameter | Value |
|---|---|

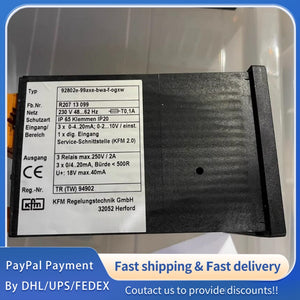

| Model | 92802e-99axe-bwa-f-ogxw |
| Series | KFM 92 Series |
| Type | Microprocessor-based industrial controller |
| Mounting | Panel mount, 96 × 96 mm |
| Power Supply | 100–250 VAC, 24 VAC/DC (approx. 14 VA) |
| Inputs | Max. 4 measuring inputs: Pt100 DIN, thermocouples (K/J/S), 0(4)–20 mA, 0(2)–10 V, combined inputs |
| Measurement Ranges | Pt100: 0–400 °C (switchable to °F); standard signals: –999 to 4000 (adjustable) |
| Outputs | Up to 8 relay outputs (potential-free changeover, 250 V / 2 A, RC spark extinction); 1–2 analog outputs: 0/4–20 mA, 0/2–10 V (500 Ω load) |
| Control Modes | 2-point, 3-point PID, continuous control, heating/cooling, positioner/follow-up |

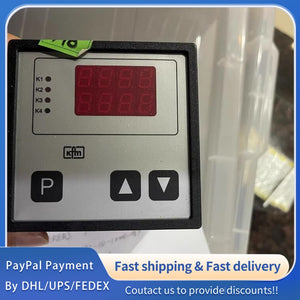

| Display | 2 × 4-digit digital displays; up to 8 LEDs for relay status |
| Communication | RS232/485, Profibus, Interbus S (optional) |
| Dimensions | 96 × 96 × 150 mm (W × H × D) |
| Protection | IP54 (front), IP20 (terminals) |
| Ambient Temp | 0–60 °C |
| Certifications | DIN, BV, DNV, GL |
