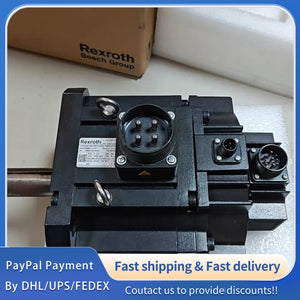

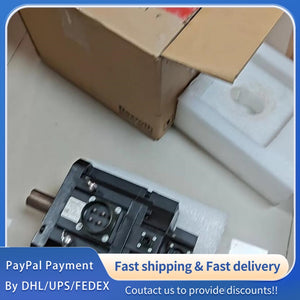

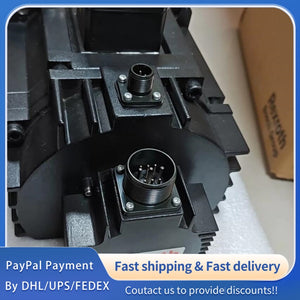

1 PCS used Rexroth IndraDyn S MSC180-3M15-N302-1BPK-NTNN (R988114107) #LYQ007
1 PCS used Rexroth IndraDyn S MSC180-3M15-N302-1BPK-NTNN (R988114107) #LYQ007
| Parameter | Symbol | Unit | Value | Tolerance |
|---|---|---|---|---|
| Motor Type | - | - | Permanent Magnet Synchronous Servo Motor | - |
| Rated Power | P-R | kW | 3.0 | - |
| Rated Torque | T-R | N·m | 19.1 | - |
| Max. Torque | T-max | N·m | 47.75 | - |
| Rated Speed | N-R | rpm | 1500 | - |
| Max. Speed | N-max | rpm | 2000 | - |
| Rated Current | I-R | A | 8.2 | - |
| Max. Current | I-max | A | 20.5 | - |
| Torque Constant | Kt | N·m/A | 2.33 | ±10% |
| Voltage Constant | Ke | V/krpm | 154.7 | ±10% |
| Winding Resistance | Ra | Ω | 1.1 | ±10% |
| Winding Inductance | L | mH | 25.9 | ±10% |
| Pole Pairs | - | - | 4 | - |
| Rotational Inertia (without brake) | Jm | kg·cm² | 39.95 | ±10% |
| Rotational Inertia (with brake) | Jm | kg·cm² | 42.36 | ±10% |
| Weight (without brake) | W | kg | 16.9 | - |
| Weight (with brake) | W | kg | 21.0 | - |
| Brake Torque | - | N·m | 40 | - |
| Brake Voltage | - | V | 24 | - |
| Brake Current | - | A | 1.15 | - |
| Brake Turn-On Time | - | ms | 200 | - |
| Brake Turn-Off Time | - | ms | 80 | - |
| Insulation Class | - | - | F (155°C) | - |
| Protection Class | - | - | IP67 | - |
| Encoder | - | - | 23-bit Absolute Encoder | - |
| Cooling | - | - | Natural Cooling | - |
| Max. Ambient Temp. | - | °C | 40 | - |
| Max. Altitude | - | m | 1000 | - |
