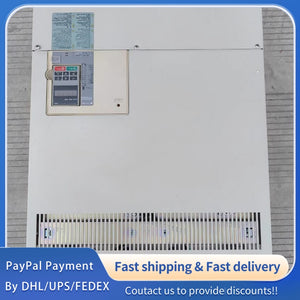

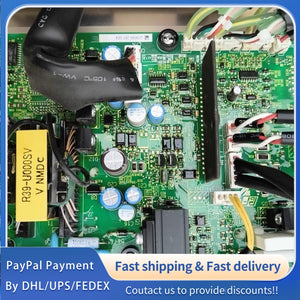

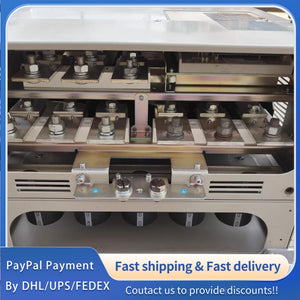

1 PCS used Yaskawa Inverter CIMR-AB4A0296ABA #LYQ007
1 PCS used Yaskawa Inverter CIMR-AB4A0296ABA #LYQ007
1 PCS used Yaskawa Inverter CIMR-AB4A0296ABA #LYQ007
Inverter Overview: Yaskawa Inverter (Model: CIMR-AB4A0296ABA) belongs to the A1000 series, which is a high-performance industrial-grade frequency converter independently developed and manufactured by Yaskawa official factory. Adopting Yaskawa's advanced vector control technology, high-quality power modules and precision electronic components, it undergoes strict factory calibration, full-process quality inspection and long-term stability testing to ensure 100% brand-new original quality without any manual modification or secondary processing. Fully compliant with Yaskawa global product standards, IEC international industrial control norms and relevant international certifications, this inverter features compact structure, high control precision, fast dynamic response, strong anti-interference ability and reliable operation. It is widely applicable to industrial fields such as fan, pump, conveyor, mixer and other general-purpose mechanical equipment, realizing stepless speed regulation, energy saving and consumption reduction, and effectively improving the operation efficiency and stability of the equipment. It can operate stably in harsh industrial environments such as high temperature, dust and voltage fluctuation, supporting multiple protection functions to ensure the safe and stable operation of the whole system.
|
Parameter
|
Specification (CIMR-AB4A0296ABA)
|
Unit
|
Yaskawa Factory Notes (Original Description)
|
|
Brand & Origin
|
Yaskawa Technology, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original inverter produced by Yaskawa official factory, manufactured in strict accordance with Yaskawa global quality management standards, ensuring consistent performance and long service life.
|
|
Product Model
|
CIMR-AB4A0296ABA (Yaskawa A1000 Inverter)
|
-
|
Original factory model, unchanged; standardized design for easy installation, replacement, debugging and on-site maintenance, compatible with Yaskawa A1000 series accessories.
|
|
Product Type
|
Industrial-grade Inverter, High-performance, General-purpose
|
-
|
Industrial-grade general-purpose inverter, A1000 series high-performance model, suitable for various medium and heavy load industrial scenarios, integrating speed regulation, energy saving and protection functions.
|
|
Rated Input Voltage
|
3-phase, 380-480 V AC ±10%
|
V AC
|
3-phase input, wide voltage tolerance, adapting to different industrial power supply environments and voltage fluctuations, ensuring stable operation.
|
|
Rated Input Frequency
|
50/60 Hz ±5%
|
Hz
|
Compatible with 50Hz and 60Hz power grids, wide frequency tolerance, adapting to global industrial power supply standards.
|
|
Rated Output Current
|
296 A (Continuous), 355 A (Overload, 60s)
|
A
|
Continuous output current 296A, overload capacity 120% for 60 seconds, meeting the requirements of heavy load equipment long-term stable operation.
|
|
Rated Output Power
|
160 kW (at 40 °C, 3-phase 400V)
|
kW
|
Rated output power 160kW, suitable for 160kW AC motor matching, ensuring efficient and stable frequency conversion control and energy-saving operation.
|
|
Output Voltage Range
|
0-Input Voltage (380-480 V AC), Stepless Adjustable
|
V AC
|
Stepless adjustable output voltage, matching the input voltage range, realizing precise speed regulation of the motor and stable torque output.
|
|
Operating Frequency Range
|
0.1-400 Hz (Precision Control, Adjustable)
|
Hz
|
High-precision operating frequency range, 0.1Hz start, adapting to different industrial speed regulation needs, compatible with various heavy-duty mechanical equipment.
|
|
Frequency Control Precision
|
±0.01% (of Rated Frequency)
|
%
|
High frequency control precision, ensuring stable motor speed, reducing speed fluctuation and improving production efficiency, suitable for high-precision control scenarios.
|
|
Control Mode
|
V/F Control, Open-loop Vector Control, Closed-loop Vector Control, Sensorless Vector Control
|
-
|
Multiple control modes optional, fast dynamic response, realizing precise control of motor speed and torque, supporting motor self-tuning and high-precision torque control.
|
|
Communication Interface
|
RS-485 (Modbus RTU), Optional Profibus-DP, DeviceNet, EtherNet/IP
|
-
|
Standard RS-485 interface with Modbus RTU protocol, optional industrial communication interfaces, facilitating centralized monitoring, control and remote operation.
|
|
Operating Temperature Range
|
0 ~ 40 °C (Operating); -20 ~ 60 °C (Storage)
|
°C
|
Built-in efficient heat dissipation design and temperature protection device, ensuring stable operation without overheating even in long-term continuous work under heavy load.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation
|
%
|
Strong humidity resistance, internal components adopt anti-moisture coating design, effectively protecting the inverter from moisture damage and ensuring reliable operation in humid environments.
|
|
Protection Level
|
IP20 (Standard); IP54 (Optional with Enclosure)
|
-
|
Standard IP20 protection, preventing dust and large particles from entering; optional IP54 protection for harsh environment applications such as dusty and humid workshops.
|
|
Physical Dimensions (W×H×D)
|
600 × 1200 × 300 (±1) mm
|
mm
|
Reasonable structural design, suitable for industrial cabinet installation, easy to assemble and disassemble during maintenance and replacement.
|
|
Weight
|
Approx. 65 ~ 70 kg
|
kg
|
Sturdy and durable structure, designed for heavy-duty industrial use, easy to carry and transport with appropriate lifting equipment during on-site maintenance and installation.
|
|
Protection Functions
|
Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Earth Fault, Motor Overload, Phase Loss, Overload Protection
|
-
|
Integrated multiple comprehensive protection functions, quick response to abnormalities, effectively protecting the inverter, motor and control system from damage, reducing production downtime.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, IEC 61800-2, IEC 61800-3, RoHS
|
-
|
Complies with international quality and safety standards, meeting global industrial project application requirements, safe, reliable and environmentally friendly.
|
|
Warranty Period
|
1 Year (Original Yaskawa Factory Warranty)
|
Year
|
1-year original Yaskawa factory warranty, covering manufacturing defects and performance failures under normal use conditions, providing professional after-sales support.
|
|
Compatibility
|
160kW AC Motors, Yaskawa Industrial Control Equipment, General Industrial Heavy Loads
|
-
|
Perfectly compatible with 160kW AC motors of various brands, Yaskawa industrial control equipment, easy to integrate into existing control systems and adapt to different industrial scenarios.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
