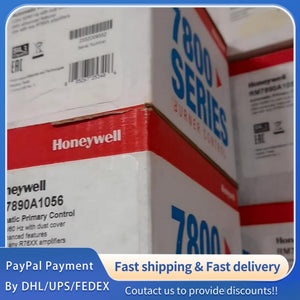

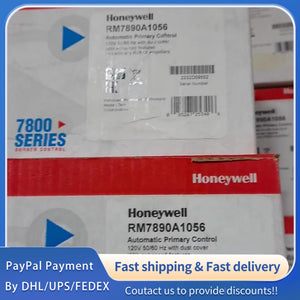

1 PCS new Honeywell RM7890A1056 Combustion Controller #LYQ007
1 PCS new Honeywell RM7890A1056 Combustion Controller #LYQ007
1 PCS new Honeywell RM7890A1056 Combustion Controller #LYQ007
General Information (Honeywell Original Factory Standard
|
Parameter
|
Specification (RM7890A1056)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
Honeywell (USA, Original Factory, Brand New Genuine Product)
|
-
|
100% brand new Honeywell original product, produced in strict accordance with original factory quality control standards, factory calibrated and performance tested before delivery to ensure safety and reliability[1][2][3].
|
|
Product Model
|
RM7890A1056 (Order Code: RM7890A1056; Factory Code: RM7890A/1056)
|
-
|
Original factory model, unchanged, belonging to Honeywell 7800 series relay modules, dedicated for industrial single burner combustion control[1][2][3].
|
|
Product Type
|
Microprocessor-Based Integrated Combustion Controller, Relay Module, Burner Control Unit
|
-
|
Integrated relay module for automatically fired single burner on/off applications, compatible with multiple fuels, integrating full-function combustion control and safety protection[1][2].
|
|
Control Functions
|
Automatic Burner Sequencing, Flame Supervision, VPS Check, Fault Diagnosis, Status Indication, Fault Alarm, Preignition
|
-
|
Comprehensive control and safety protection functions, realizing automatic and safe operation of burners, with clear fault indication for easy troubleshooting[2][3].
|
|
Supply Voltage
|
AC 120 V ±10%/-15%, 50/60 Hz ±10%
|
V AC, Hz
|
Stable voltage input range, adaptable to global industrial power supply environments, ensuring consistent performance under voltage fluctuations[1][2][3].
|
|
Power Dissipation
|
Maximum 10 W
|
W
|
Low power consumption, energy-saving and environmental protection, reducing long-term operation costs of combustion systems[1].
|
|
Maximum Connected Load
|
2000 VA; Fusing: Maximum 15 A (Type SC or Equivalent, Fast Blow)
|
VA, A
|
Strong load capacity, equipped with fast-blow fuse protection to avoid damage caused by internal short circuit[1].
|
|
Flame Establishing Period
|
Pilot: 4 sec or 10 sec (Selectable); Main: Intermittent
|
sec
|
Selectable pilot flame establishing period, intermittent main flame establishing, ensuring reliable ignition and flame stabilization[2][3].
|
|
Flame Detection
|
Compatible with R7847/R7848/R7849/R7851/R7852/R7861/R7886 Flame Amplifiers
|
-
|
Interchangeable plug-in flame amplifiers, flexible matching, ensuring accurate flame detection and supervision[2].
|
|
Valve Proving Feature
|
Programmable VPS Check; Requires S7800A1142 Keyboard Display for Setup
|
-
|
Built-in programmable valve proving switch check feature, enhancing combustion system safety; S7800A1142 keyboard display is required for parameter setup[2].
|
|
Operating Temperature Range
|
-40 ℃ ~ 60 ℃ (-40 ℉ ~ 140 ℉), Non-Condensing
|
℃, ℉
|
Wide operating temperature range, adaptable to harsh industrial on-site environments, no condensation allowed to protect internal components[1][2].
|
|
Storage Temperature Range
|
-40 ℃ ~ 66 ℃ (-40 ℉ ~ 150 ℉), Non-Condensing
|
℃, ℉
|
Suitable for long-term storage and transportation, effectively protecting internal electronic components from environmental impact[1].
|
|
Relative Humidity
|
Maximum 85% RH, Continuous Non-Condensing
|
% RH
|
Strong humidity resistance, adaptable to high-humidity industrial workshops, avoiding component damage caused by condensation[1].
|
|
Vibration Resistance
|
0.5 g Environment
|
g
|
Strong vibration resistance, stable performance in vibrating industrial environments, ensuring reliable operation of the combustion control system[1][2].
|
|
Dimensions (W×H×D)
|
With Q7800A Subbase: 127×127×133 mm; With Q7800B Subbase: 127×127×155 mm
|
mm
|
Compact size, compatible with Q7800A/B universal wiring subbases, easy to install in industrial control cabinets[2].
|
|
Net Weight
|
Approx. 0.8 kg ~ 1.25 kg (Depends on Subbase)
|
kg
|
Light weight, easy to transport and install, reducing the load of mounting brackets[2][3].
|
|
Required Components
|
Q7800A/B Subbase + R Series Flame Amplifier; S7800A1142 (for VPS Setup)
|
-
|
Subbase and flame amplifier are required for normal operation; S7800A1142 keyboard display is needed for VPS parameter setup[2].
|
|
Optional Accessories
|
KDM, Remote Display, PC Interface, Data Control Bus Module, Remote Reset Module
|
-
|
Multiple optional accessories available, realizing extended functions such as remote operation and data monitoring[2].
|
|
Certifications
|
UL, CSA, FCC Part 15 Class B, SIL 3 Capable, Swiss Re Acceptable
|
-
|
Complies with international industrial safety, electromagnetic compatibility and quality standards, applicable to global industrial markets[1][2].
|
|
Warranty Period
|
12 Months (Original Factory Warranty, Brand New Product)
|
Months
|
Covers manufacturing defects of brand new products, free repair or replacement provided by the original factory within the warranty period[2][3].
|
|
Application
|
Automatically Fired Single Burner Systems, Gas/Oil/Coal Combustion Equipment, Industrial Furnaces, HVAC Systems
|
-
|
Widely used in various industrial single burner combustion control scenarios, providing safe, reliable and efficient automatic control solutions[1][2][3].
|
