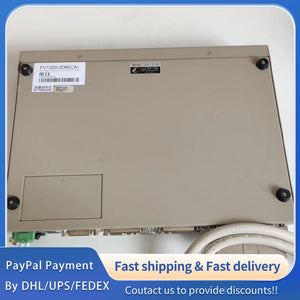

1 PCS used FAST FV1300-0DM(CA) Image Processing Alignment System Controller #LYQ007

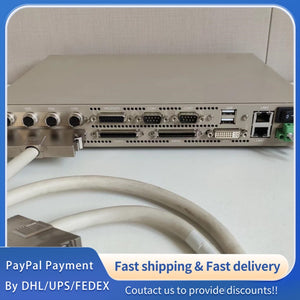

1 PCS used FAST FV1300-0DM(CA) Image Processing Alignment System Controller #LYQ007

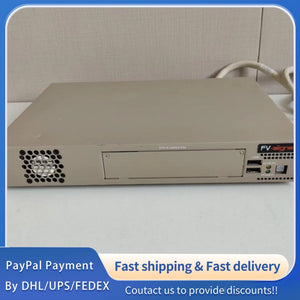

1 PCS used FAST FV1300-0DM(CA) Image Processing Alignment System Controller #LYQ007
Original Factory Precision Parameters (Model: FAST FV1300-0DM(CA) Image Processing Alignment System Controller)
|
Parameter Category
|
Parameter Name
|
FV1300-0DM(CA) Specification
|
|
Basic Information
|
Product Model
|
FV1300-0DM(CA); FAST Genuine Original Image Processing Alignment System Controller, 100% unused and unrefurbished genuine parts; Industrial-grade high-precision alignment controller
|
|
Manufacturer Standard
|
Manufactured by FAST; Complies with CE, UL, IEC 61010-1, IEC 61326-1, EN 55032 (Class B), RoHS 2.0 Standards; Conforms to FAST Internal Technical and Quality Norms for Image Processing Controllers; Anti-EMI/EMS design meets industrial high-precision application requirements
|
|
|
Product Application
|
Electronic Manufacturing (PCB, FPC Processing), Precision Machining, Semiconductor Packaging, LCD/OLED Panel Processing, SMT Mounting, Optical Component Alignment, Automobile Parts Processing, Precision Instrumentation, Intelligent Production Lines requiring high-precision image alignment
|
|
|
Image Processing Parameters
|
Image Processing Chip
|
High-Performance Industrial Image Processing Chip; Operating Frequency: ≥1.2 GHz; Built-in dedicated alignment algorithm accelerator, ensuring fast and accurate image processing
|
|
Image Input Channel
|
2 Channels (BNC + HDMI); Support simultaneous input of 2 cameras, seamless switching between channels; Compatible with analog and digital cameras
|
|
|
Supported Camera Type
|
Industrial CCD Camera, CMOS Camera; Resolution Support: 640×480 ~ 4096×3072; Frame Rate Support: ≤60 fps (1080P), ≤30 fps (4K)
|
|
|
Image Resolution
|
Max Support 4096×3072 (4K); Image Pixel Depth: 8/10/12 Bit (Switchable); High-resolution image processing, ensuring fine alignment accuracy
|
|
|
Image Processing Speed
|
≤10 ms/frame (1080P Resolution); ≤25 ms/frame (4K Resolution); Fast processing speed, adapting to high-speed production line requirements
|
|
|
Alignment Algorithm
|
Built-in Multiple High-Precision Alignment Algorithms: Template Matching, Edge Alignment, Mark Point Alignment, Gray Scale Matching; Algorithm Adaptability: Support low-contrast, uneven illumination image alignment
|
|
|
Image Output Interface
|
1 Channel HDMI 2.0, 1 Channel VGA; Output Resolution: 1920×1080 (Default), 4096×3072 (Max); Real-time display of processed images and alignment results
|
|
|
Image Storage
|
Built-in 32 GB Industrial-grade Flash Memory; Support External SD Card Expansion (Max 128 GB); Store processed images, alignment parameters and fault logs
|
|
|
Alignment Precision Parameters
|
Alignment Precision
|
±0.001 mm (When Matching 4K Camera, Standard Mark Point); ±0.002 mm (When Matching 1080P Camera); High precision, meeting industrial high-precision alignment requirements
|
|
Repeat Alignment Precision
|
≤0.0005 mm (3σ); Stable repeatability, ensuring consistent alignment results in mass production
|
|
|
Alignment Range
|
X/Y Axis: ±5 mm; θ Axis: ±3°; Wide alignment range, adapting to different equipment installation and positioning errors
|
|
|
Alignment Response Time
|
≤30 ms (From Image Acquisition to Alignment Signal Output); Fast response, matching high-speed production line rhythm
|
|
|
Mark Point Recognition
|
Support Circular, Rectangular, Cross-shaped, Custom Mark Points; Minimum Mark Point Size: 0.1 mm × 0.1 mm; High recognition rate (≥99.9%) under complex working conditions
|
|
|
Alignment Compensation
|
Support Real-time Temperature Compensation, Vibration Compensation; Automatically adjust alignment parameters according to environmental changes, ensuring long-term alignment stability
|
|
|
Multi-Point Alignment
|
Support 2~8 Point Multi-Point Alignment; Automatically calculate and correct geometric deviation, adapting to large-size workpiece alignment
|
|
|
Input & Output Parameters
|
Digital Input Interface
|
8 Optically Isolated Channels; 24 V DC Input; Response Frequency: ≤10 kHz; Used for camera trigger, equipment start-stop signal input
|
|
Digital Output Interface
|
8 Optically Isolated Channels; NPN/PNP Switchable; Rated Current: 2 A; Used for alignment completion, fault alarm, motion control signal output
|
|
|
Analog Input Interface
|
2 Optically Isolated Channels; 0~10 V DC / 4~20 mA DC; 12 Bits Resolution; Used for pressure, temperature signal input for compensation
|
|
|
Analog Output Interface
|
2 Channels; 0~10 V DC / 4~20 mA DC; 12 Bits Resolution; Used for alignment deviation signal output, motion axis control
|
|
|
Communication Interface
|
1 RS485 (Modbus-RTU), 1 Ethernet (TCP/IP, Modbus-TCP), 1 USB 3.0; Baud Rate: 9600~115200 bps (RS485); Support remote control and parameter configuration
|
|
|
Motion Control Interface
|
Support Pulse/Direction Output; Compatible with Stepper Motor, Servo Motor Driver; Max Pulse Frequency: 500 kHz; Real-time control of motion axis alignment
|
|
|
Interface Protection
|
2500 V AC Optical Isolation (1 Minute); ESD Protection ±15 kV (Contact), ±25 kV (Air); Protect internal components from signal interference and damage
|
|
|
Power Supply Parameters
|
Power Supply Voltage
|
24 V DC (±10% Fluctuation); Optional 12 V DC Input; Stable power supply, ensuring high-precision image processing and alignment
|
|
Rated Power Consumption
|
≤20 W (Full Load); Low power consumption, energy-saving and environmentally friendly, reducing heat generation
|
|
|
Rated Input Current
|
≤1 A (24 V DC, Full Load); Stable current input, avoiding power supply interference
|
|
|
Power Supply Protection
|
Over-Voltage, Under-Voltage, Reverse Polarity, Short-Circuit Protection; Automatically cut off power when abnormal, protecting the controller
|
|
|
Power Supply Interface
|
Phoenix Terminal Interface; Rated Current: 5 A; Easy to wire, firm connection, anti-loosening design
|
|
|
Power Supply Ripple
|
≤50 mVp-p; Low ripple, avoiding interference to image processing and alignment precision
|
|
|
Protection & Safety Parameters
|
Over-Temperature Protection
|
Built-in High-Precision Temperature Sensor; Alarm & Cut off Output when Internal Temperature ≥75℃; Automatic Recovery after Cooling to ≤65℃
|
|
Signal Loss Protection
|
Alarm & Cut off Output when Camera Signal, Motion Control Signal Loss; Avoid misalignment caused by signal interruption
|
|
|
Over-Current Protection
|
Alarm & Cut off Output when Output Current ≥2.5 A; Protect output interface and connected equipment
|
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Complies with IEC 61000-4-2; Protects internal image processing chip and electronic components
|
|
|
EMI/EMS Protection
|
Complies with IEC 61000-4-3 (Radiated Immunity, 10 V/m), IEC 61000-4-4 (Electrical Fast Transient, 2 kV); Strong anti-electromagnetic interference ability
|
|
|
Fault Alarm Function
|
Built-in Buzzer Alarm + Digital Signal Alarm; Support Fault Log Storage (Max 1000 Entries); Convenient for fault diagnosis and maintenance
|
|
|
Password Protection
|
Support 6~16 Bit Password Protection; Prevent misoperation and parameter modification; Protect alignment precision parameters
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 60℃; 1% Derating per °C over 50℃; Stable operation in extreme temperature environments
|
|
Storage Temperature
|
-20℃ ~ 70℃; Stable storage performance, no performance degradation after long-term storage
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction
|
|
|
Protection Class
|
IP20 (Standard); Dustproof design, suitable for installation in industrial control cabinets
|
|
|
Structure Material
|
Industrial-Grade FR-4 Circuit Board + Aluminum Alloy Shell; Corrosion-resistant, anti-oxidation, high mechanical strength; Good heat dissipation performance
|
|
|
Cooling Mode
|
Natural Cooling; Optimized shell heat dissipation structure, no fan noise, suitable for quiet working environments
|
|
|
Functional Parameters
|
Start-up Time
|
≤1000 ms (24 V DC, No Load); Fast start-up, quickly enter working state
|
|
Remote Control Function
|
Support Remote On/Off, Parameter Configuration, Alignment Control via Ethernet/RS485; Convenient for centralized control of intelligent production lines
|
|
|
Parameter Storage
|
Built-in EEPROM; Support 16 Groups of Alignment Parameters Storage & Call; Convenient for switching between different workpieces
|
|
|
Special Functions
|
Image Preview, Alignment Deviation Display, Fault Self-Diagnosis, Log Query, Parameter Calibration, Automatic Gain Control (AGC) for Cameras
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
