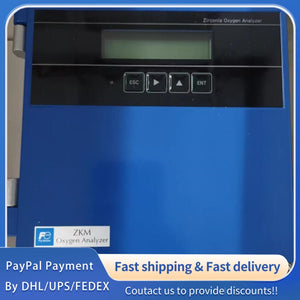

1 PCS used Fuji Zirconia Analyzer ZKMABY12-YCY1A-YRY#LYQ007
1 PCS used Fuji Zirconia Analyzer ZKMABY12-YCY1A-YRY#LYQ007
1 PCS used Fuji Zirconia Analyzer ZKMABY12-YCY1A-YRY#LYQ007
General Information (Fuji Original Factory Standard)
|
Parameter
|
Specification (ZKMABY12-YCY1A-YRY)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
Fuji (Japan, Original Factory, Brand New Genuine Product)
|
-
|
100% brand new Fuji original product, produced in Japan in strict accordance with Fuji original factory quality control standards, factory calibrated and performance tested before delivery[1][2][3].
|
|
Product Model
|

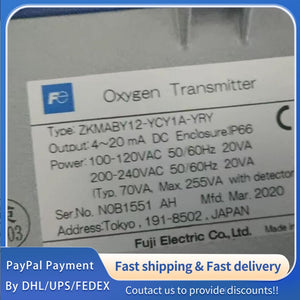

ZKMABY12-YCY1A-YRY (Order Code: ZKMABY12-YCY1A-YRY; Factory Code: ZKMABY12/YCY1A/YRY)
|
-
|
Original factory model, unchanged, belonging to Fuji high-precision zirconia oxygen analyzer series; model coding conforms to Fuji industrial analysis instrument standard[1][2].
|
|
Product Type
|
Industrial Zirconia Oxygen Analyzer, Exhaust Gas Oxygen Content Detector, Online Continuous Analyzer
|
-
|
Specialized for continuous measurement of oxygen content in industrial combustion exhaust gases, applicable to boiler, heating furnace and other combustion system monitoring[1][2][3][4].
|
|
Detection Principle
|
Zirconia Solid Electrolyte Oxygen Sensor, Concentration Cell Principle; In-Situ Direct Insertion Measurement
|
-
|
High stability and reliability, no need for frequent calibration, direct in-situ measurement of exhaust gas oxygen content, real-time reflection of combustion status[1][2][3].
|
|
Measurement Range
|
0 ~ 21 Vol% O₂ (Standard); Optional: 0 ~ 10 Vol% O₂, 0 ~ 5 Vol% O₂
|
Vol% O₂
|
Wide standard measurement range, optional narrow range for high-precision measurement scenarios, meeting different combustion monitoring requirements[1][2][3].
|
|
Measurement Precision
|
±0.1 Vol% O₂ (0 ~ 5 Vol% O₂ Range); ±0.2 Vol% O₂ (0 ~ 21 Vol% O₂ Range); Repeatability: ≤ ±0.1 Vol% O₂
|
Vol% O₂
|
High measurement precision and good repeatability, ensuring accurate and stable data output for combustion optimization and energy saving[1][2][3].
|
|
Response Time
|
T90 ≤ 5 Seconds (Normal Temperature); T90 ≤ 10 Seconds (Low Temperature Environment ≤ 0℃)
|
s
|
Fast response speed, real-time tracking of oxygen content changes in exhaust gas, timely feedback of combustion adjustment effects[1][2][3].
|
|
Sensor Operating Temperature
|
600 ~ 800 ℃ (Optimal); Allowable Range: 400 ~ 900 ℃
|
℃
|
High-temperature resistant sensor, adaptable to harsh exhaust gas temperature environment, stable performance in long-term high-temperature operation[1][2][3].
|
|
Supply Voltage
|
AC 100 ~ 240 V ±10%, 50/60 Hz; Power Consumption: ≤ 25 VA
|
V AC, Hz, VA
|
Wide voltage input range, adaptable to global industrial power supply environments, low power consumption, suitable for long-term continuous operation[1][2].
|
|
Output Signal
|
DC Current Output: 4 ~ 20 mA (Isolated, Corresponding to Measurement Range); Relay Output: 250 V AC, 3 A (Resistive Load)
|
mA, V AC, A
|
Isolated current output to avoid interference, compatible with various industrial control systems and recorders; relay output for alarm and control signals[1][2][3].
|
|
Operating Temperature Range
|
Analyzer Host: -10 ~ 50 ℃; Sensor: 400 ~ 900 ℃; No Condensation Allowed for Host
|
℃
|
Host adaptable to general industrial on-site temperature, sensor with high-temperature resistance, suitable for harsh exhaust gas measurement environment[1][2][3].
|
|
Storage Temperature Range
|
-20 ~ 70 ℃; Relative Humidity ≤ 95% RH (Non-Condensing)
|
℃, % RH
|
Suitable for long-term storage and transportation, effectively protecting internal components and sensor from environmental impact[2][3].
|
|
Protection Class
|
Analyzer Host: IP65; Sensor: IP67 (High-Temperature Resistant Protection)
|
-
|
Host with dust-proof and waterproof protection, suitable for industrial on-site installation; sensor with high-level protection, adaptable to harsh exhaust gas environment[1][2][3].
|
|
Display Function
|
LED Digital Display, White Backlight; Display Range: 0 ~ 21.99 Vol% O₂; Display Resolution: 0.01 Vol% O₂
|
Vol% O₂
|
Clear display, high resolution, easy to observe real-time oxygen content data; white backlight for low-light environment use[1][2].
|
|
Dimensions (W × H × D)
|
Analyzer Host (Panel Mount): 160 × 80 × 250 mm (±1 mm); Panel Cutout: 152 × 76 mm; Sensor Length: 300 mm (Standard)[4]
|
mm
|
Standard panel-mounted host size, easy to install in industrial control cabinets; standard sensor length, optional extended length according to on-site needs[1][4].
|
|
Weight (Net)
|
Analyzer Host: Approx. 1.8 kg; Sensor: Approx. 0.6 kg (Including Internal Components and Housing)
|
kg
|
Light weight, reducing the load of control cabinet mounting brackets and pipeline installation, easy to transport and install[2][3].
|
|
Service Life
|
Analyzer Host: ≥ 5 Years (Continuous Operation, Normal Working Conditions); Sensor: ≥ 2 Years (Continuous High-Temperature Operation); ≥ 30,000 Hours MTBF
|
Years, Hours
|
Long service life, high reliability, made of high-quality materials and precision manufacturing, low maintenance cost[1][2][3].
|
|
Warranty Period
|
12 Months (Original Factory Warranty, Brand New Product; Sensor Warranty: 6 Months)
|
Months
|
Covers manufacturing defects of brand new products, free repair or replacement provided by the original factory within the warranty period; sensor warranty is 6 months due to harsh working environment[2][3].
|
|
Application
|
Industrial Boilers, Heating Furnaces, Chemical Industry Combustion Systems, Metallurgy Industry Furnaces, Power Plant Combustion Monitoring[4]
|
|
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
