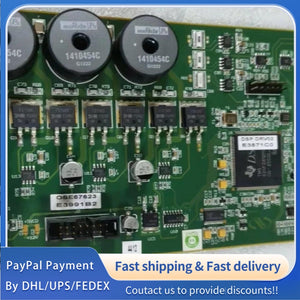

1 PCS used Newport XPS-DRV02/DRV01 Driver Module #LYQ007

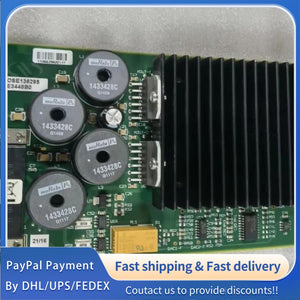

1 PCS used Newport XPS-DRV02/DRV01 Driver Module #LYQ007
1 PCS used Newport XPS-DRV02/DRV01 Driver Module #LYQ007
Original Factory Precision Parameters (Models: Newport XPS-DRV02 / XPS-DRV01 Driver Module)
|
Parameter Category
|
Parameter Name
|
XPS-DRV02 / XPS-DRV01 Specification
|
|
Basic Information
|
Product Model
|
XPS-DRV02, XPS-DRV01; Newport Genuine Original Driver Module, 100% unused and unrefurbished genuine parts; Industrial-grade high-precision motion driver, specialized for drive and control of high-precision motion systems, matching Newport XPS motion controllers.
|
|
Manufacturer Standard
|
Manufactured by Newport Corporation; Complies with CE, UL, ISO 9001, RoHS Standards; Conforms to Newport Internal Technical and Quality Norms for Motion Driver Modules; Anti-EMI/EMS design meets industrial high-precision motion control requirements, in line with global industrial equipment quality standards.
|
|
|
Product Application
|
High-Precision Motion Control System Drive, Linear Motor Drive, Stepper Motor Drive, Servo Motor Drive; Widely used in Semiconductor Manufacturing, Precision Machining, Optical Equipment, Laboratory Testing, Medical Equipment, Aerospace Component Processing and other high-precision motion control scenarios, matching Newport XPS motion controllers to achieve precise position, speed and torque control.
|
|
|
Core Drive & Control Parameters
|
Driver Type
|
High-Precision Motion Driver; Supports Linear Motor, Stepper Motor, Servo Motor Drive; XPS-DRV02: Dual-Channel Drive; XPS-DRV01: Single-Channel Drive; Adopts advanced current control algorithm, realizing high-precision drive control, no motion lag, suitable for high-precision motion control scenarios.
|
|
Control Precision
|
Position Control Precision: ±0.1 μm; Speed Control Precision: ±0.01% of Rated Speed; Torque Control Precision: ±0.5% of Rated Torque; High control precision, capable of distinguishing tiny motion changes, ensuring stable and precise operation of the motion system, meeting high-precision industrial application requirements.
|
|
|
Input Voltage Range
|
24 VDC ±10% (Control Circuit); 48-72 VDC (Power Circuit); Wide input voltage range, compatible with various industrial power supply outputs, flexible adaptation to different motion system power supply requirements, ensuring stable power supply for the driver module.
|
|
|
Output Current Range
|
XPS-DRV02: 0.5-10 A (Per Channel, Continuous); XPS-DRV01: 0.5-10 A (Continuous); Peak Current: 15 A (Maximum, 10s); Stable output current, no current fluctuation, ensuring stable drive of the motor, adapting to different power requirements of motors.
|
|
|
Speed Control Range
|
0.01 mm/s ~ 500 mm/s (Linear Motor); 0.1 rpm ~ 3000 rpm (Rotary Motor); Wide speed control range, supporting both low-speed precise operation and high-speed efficient operation, adapting to different motion speed requirements of the system.
|
|
|
Response Time
|
≤5 ms (Current Response); ≤10 ms (Speed/Position Response); Fast response speed, real-time feedback of motor motion status, automatic adjustment of drive parameters, no motion overshoot or lag, meeting fast and precise motion control scenarios.
|
|
|
Motion Control Mode
|
Supports Position Control, Speed Control, Torque Control, Trajectory Planning Control; Multiple control modes are switchable, flexible adaptation to different motion control scenarios, matching Newport XPS motion controllers to realize complex trajectory motion control.
|
|
|
Encoder Interface
|
Supports incremental encoder (A/B/Z), absolute encoder (SSI, BiSS-C); Encoder Resolution: Up to 24-bit; High-precision encoder signal acquisition, ensuring accurate motion position and speed detection, providing reliable feedback for motion control.
|
|
|
Motor Compatibility
|
Compatible with Newport Linear Motors (LTA Series), Stepper Motors (SM Series), Servo Motors (SSM Series); Also compatible with other standard industrial linear/rotary motors, with strong compatibility, flexible adaptation to different motion system configurations.
|
|
|
Electrical & Structural Parameters
|
Communication Interface
|
Supports Ethernet/IP, Modbus TCP, RS485, CANopen Communication Protocols; Real-time data transmission and remote control, convenient for integration into industrial automation control systems, realizing centralized control of multiple driver modules.
|
|
Cable Length
|
2.0 m (Standard); High-Temperature Resistant Shielded Cable; High flexibility, oil-resistant, wear-resistant, anti-interference, suitable for industrial on-site wiring of motion control systems, ensuring stable signal transmission.
|
|
|
Power Consumption
|
Control Circuit: ≤5 W (No Load); Power Circuit: ≤50 W (Full Load); Low power consumption, energy-saving and environment-friendly, reducing the overall energy consumption of the motion control system.
|
|
|
Installation Type
|
DIN Rail Installation / Panel Installation (Switchable); Equipped with Standard Mounting Accessories; Easy to Install and Disassemble, Compatible with Standard Industrial Control Cabinets and Motion Control Cabinets, saving installation space.
|
|
|
Dimensions (L×W×H)
|
110×75×40 mm (±0.1 mm); Compact structure, small installation space, easy to integrate with Newport XPS motion controllers and industrial control systems, suitable for limited installation space scenarios.
|
|
|
Structure Material
|
Housing: High-Strength Aluminum Alloy (Heat Dissipating & Anti-Corrosion); Internal Components: Copper Alloy + High-Precision Integrated Circuits; High strength, wear-resistant, corrosion-resistant, good heat dissipation performance, adapting to harsh industrial environment, long service life.
|
|
|
Heat Dissipation Performance
|
Passive Heat Dissipation (Aluminum Alloy Housing); Temperature Rise ≤30℃ (Full Load, 25℃ Ambient Temperature); Good heat dissipation performance, avoiding component damage caused by overheating, ensuring stable operation of the driver module for a long time.
|
|
|
Indicator Light
|
Power Indicator (Green), Run Indicator (Blue), Fault Indicator (Red); Real-time display of the working status of the driver module, convenient for on-site debugging and fault diagnosis, improving maintenance efficiency.
|
|
|
Protection & Safety Parameters
|
Over-Current Protection
|
Built-in Over-Current Protection Circuit; Automatic Shutdown when Output Current Exceeds 15 A (Peak); Protect internal components of the driver module and the motor from over-current damage, ensuring the safety of the motion system.
|
|
Over-Voltage / Under-Voltage Protection
|
Over-Voltage Protection: ≥80 VDC; Under-Voltage Protection: ≤20 VDC; Automatic Power-Off Protection when Input Voltage is abnormal, avoiding damage to the driver module caused by voltage fluctuation, ensuring stable operation of the system.
|
|
|
Over-Temperature Protection
|
Automatic Shutdown when Internal Temperature Exceeds 85℃; Automatic Recovery after Temperature Returns to Normal (≤75℃); Protect internal electronic components and integrated circuits from overheating damage, extending the service life of the driver module.
|
|
|
Anti-Corrosion Protection
|
Internal Components: Anti-Corrosion Copper Alloy; External Housing: Anti-Corrosion Aluminum Alloy (Surface Oxidation Treatment); Strong anti-corrosion performance, adapting to humid and corrosive industrial environments, ensuring stable operation.
|
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Effectively resist static electricity interference in industrial environment, avoiding damage to internal electronic components and ensuring stable operation of the driver module.
|
|
|
Short-Circuit Protection
|
Built-in Short-Circuit Protection Circuit; Automatic Power-Off when Output Terminal is Short-Circuited; Protect the driver module and the motor from short-circuit damage, ensuring the safety and reliability of the motion system.
|
|
|
Fault Alarm Function
|
Supports Fault Signal Output (Relay Output); Fault Types: Over-Current, Over-Voltage, Under-Voltage, Over-Temperature, Short-Circuit; Convenient for connecting to the alarm system, realizing real-time fault alarm and improving system maintainability.
|
|
|
Environmental & Other Parameters
|
Operating Temperature
|
-20℃ ~ 70℃; Stable operation in extreme temperature environments, adapt to various industrial working conditions such as high-temperature workshops and low-temperature laboratories, in line with industrial equipment environmental adaptability standards.
|
|
Storage Temperature
|
-40℃ ~ 85℃; Stable storage performance, no performance degradation after long-term storage in harsh environments, convenient for transportation and inventory.
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction caused by humidity, ensuring stable operation in coastal or wet areas.
|
|
|
Vibration Resistance
|
10~60 Hz, 1.0 mm Amplitude; Resist mechanical vibration generated by industrial equipment operation and motion system operation, ensure stable drive and control performance, no parameter drift or malfunction.
|
|
|
Shock Resistance
|
50 g (11 ms); Resist mechanical shock caused by equipment transportation or accidental collision, avoid component damage, ensure the integrity and reliability of the driver module.
|
|
|
Service Life
|
≥150000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency and cost of the motion control system, in line with Newport's high-quality product standards.
|
