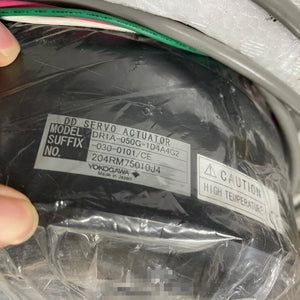

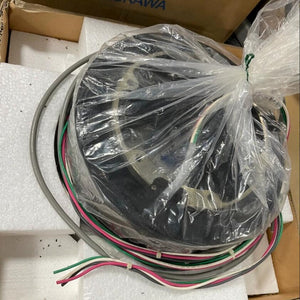

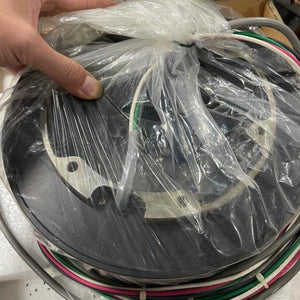

1 PCS NEW YASKAWA DYNASERV DR1A-050G-1D4A4G2-030-0101/CE #LYQ007
1 PCS NEW YASKAWA DYNASERV DR1A-050G-1D4A4G2-030-0101/CE #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model | DR1A-050G-1D4A4G2-030-0101/CE | - |
| Type | Direct Drive AC Servo Motor (DR Series) | - |
| Maximum Output Torque (Peak) | 50 | N·m |
| Rated Torque (CE Continuous) | 17 | N·m |
| Maximum Speed (100/200V) | 1.8 / 1.8 | rps |
| Rated Speed (100/200V) | 1.5 / 1.5 | rps |
| Encoder Resolution | 1,638,400 | p/rev |
| Repeatability Accuracy | ±3 | arc-sec |
| Absolute Positioning Accuracy | ±30 | arc-sec |
| Number of Origin Pulses | 200 | p/rev |
| Maximum Power Consumption (100/200V) | 1.25 / 2.5 | kVA |
| Rated Power Consumption (100/200V, CE Continuous) | 1.0 / 1.0 | kVA |
| Rotor Inertia | 180 × 10⁻³ | kg·m² |
| Axial Load (Compression) | 4 × 10⁴ | N |
| Axial Load (Tension) | 2 × 10⁴ | N |
| Maximum Overhung Load | 400 | N·m |
| Axial Stiffness (Compression) | 2 × 10⁻⁶ | mm/N |
| Axial Stiffness (Tension) | 3 × 10⁻⁶ | mm/N |
| Moment Displacement Stiffness | 4 × 10⁻⁷ | rad/N·m |
| Weight | 26 | kg |
| Standard Profile Length (L) | 158 | mm |
| Length with Mechanical Brake | 208 | mm |
| Overall Diameter | 264 | mm |
| Hollow Bore Diameter | 150 | mm |
| Operating Temperature (Standard) | 0 ~ 45 | °C |
| Operating Temperature (CE Continuous) | 0 ~ 40 | °C |
| Storage Temperature | -20 ~ 85 | °C |
| Humidity (Operating/Storage) | 20 ~ 85% RH, no condensation | - |
| Atmosphere | No corrosive gases, dust or dirt | - |
| Maximum Altitude (CE Mounting) | 1000 | m |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
